Prototype AH-64A Apache

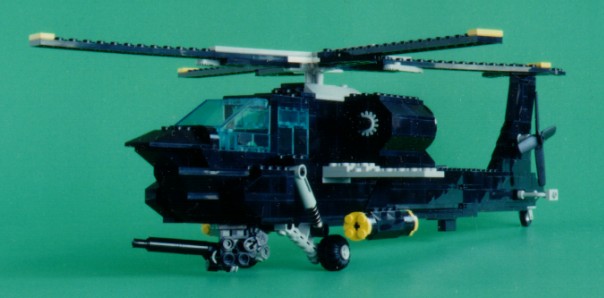

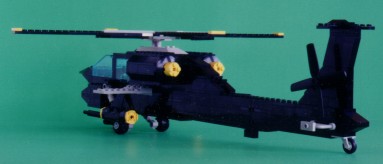

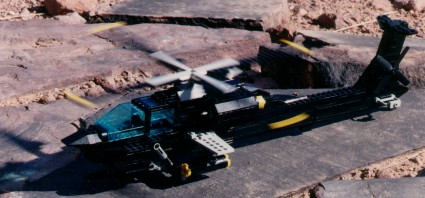

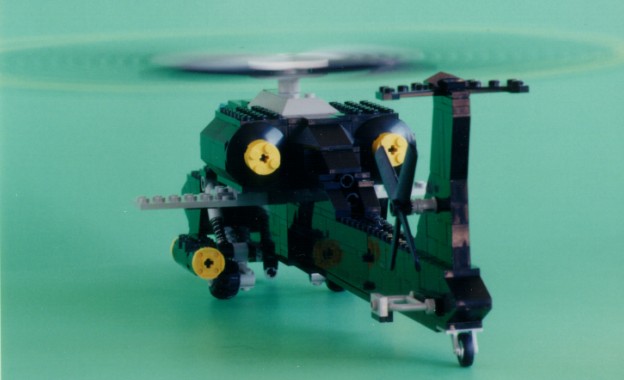

This model is an attempt at recreating the prototype Hughes
AH-64A Apache attack helicopter. The prototype
aircraft, designated YAH-64, first flew in September 1975.
Specifications:
Name: Hughes AH-64A
Manufacturer: Hughes Helicopters
Type: Two-seat attack
Year: 1975
Crew: Two, Pilot in front - Gunner in rear
Engines: 2 x 1,690 shp General Electric T700-GE-701
Rotor diameter: 14.63 m (48 ft)
Fuselage length: 15.06 m (49 ft 5 in)
Overall Length: 17.60 m (57 ft 9 in)
Height: 3.83 m (12 ft 6 in)
Empty weight: 4,662 kg (10,278 lbs)
Gross weight: 8,013 kg (17,665 lbs)
Maximum speed: 378 km/h (235 mph)
Hovering ceiling: 6,250 m (20,500 ft)
Service ceiling: 6,250 m (20,500 ft)
Range: 610 km (379 miles)
Armament: One 30 mm cannon + 16 Hellfire missiles or 76 2.75 inch rockets
Armor: Vulnerable areas protected against shots of up to 23 mm caliber

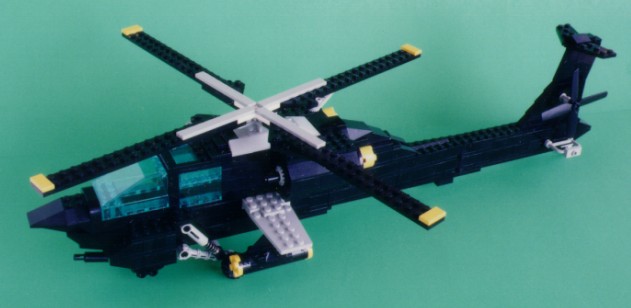

Comparative Side View:
Click for enlargements:

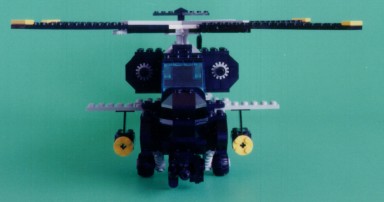

Comparative Head-On View:
Click for enlargements:

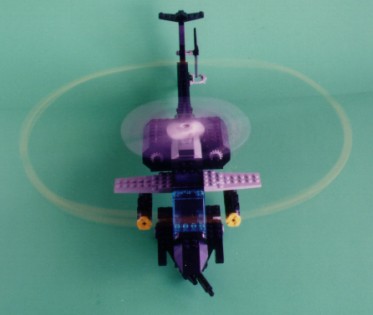

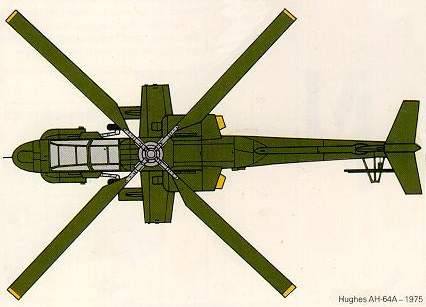

Comparative Overhead View:
