Beowulf Cluster


A supercomputer built to run I.C. Engines simulation CFD software

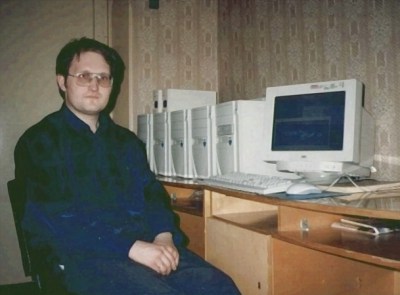

This is a Beowulf cluster made of 5 Pentium III-700 MHz boxes powered by Mandrake Linux 7.0. Nodes are connected by 100Mbit Ethernet TCP/IP network. We are planning to upgrade this Beowulf system to 18-node array by the beginning of year 2002.
The objective of this project is to execute CFD programs that simulate turbulent flows and combustion in parallel environment using LES approach. MPICH 1.2.1. is used as MPI inplementation for this system.
You can get sample free CFD (not only parallel) codes here.

Beowulf Cluster

Back to home page


And here are some visualized flow fields from the test cases solved by those CFD codes - and by some other codes (click on images to view animations):

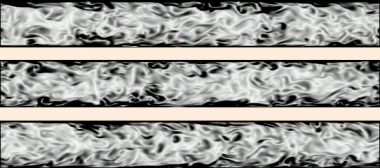

Turbulent flow in square duct

Turbulent flow in square duct, Re = 20000.

Turbulent 3D flow in planar shear layer

Turbulent 3D flow in planar shear layer.

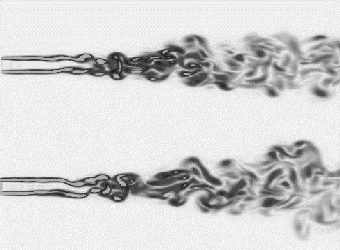

Turbulent jet

Turbulent circular jet in coflowing stream.

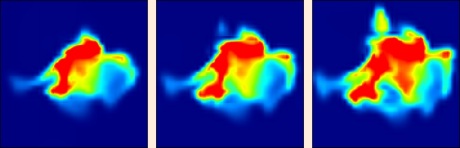

Flame kernel development in 3D

Flame kernel development.

Scavenging in the small opposed-piston engine

Scavenging in the small opposed-piston engine.


This page is permanently under construction
Look at my personal page
Any comments please email me to: [email protected]

Last updated: January 18, 2002
