Hi-Fi Preamplifier



Notes:

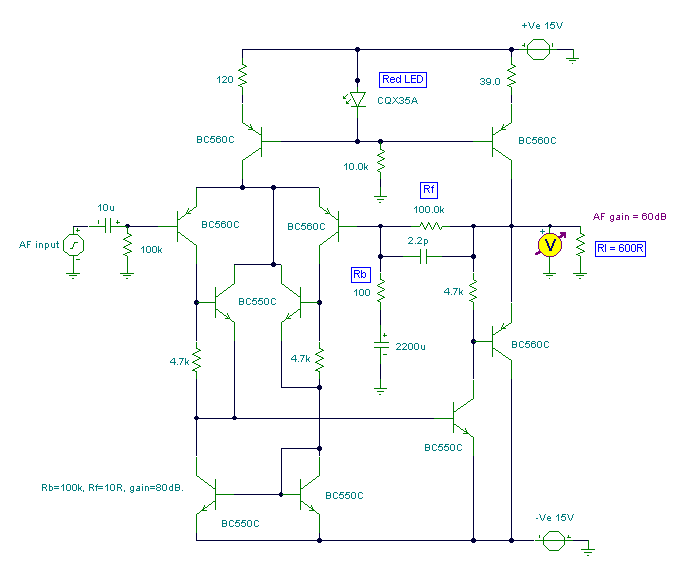

This circuit was submitted by Graham Maynard from Newtownabbey, Northern Ireland. It has an exceptionally
good high frequency response, as demonstrated by applying an 100kHz squarewave to the input. I have
produced some response graphs using Tina Pro to highlight these characteristics.

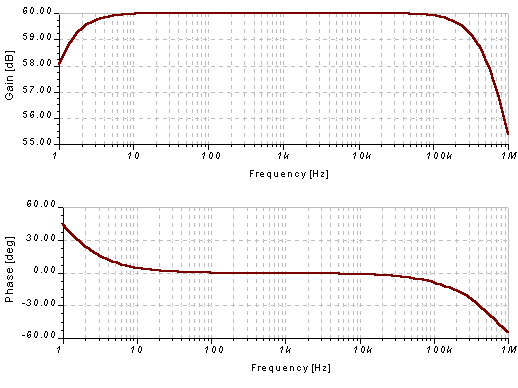

The Preamp's Frequency and Phase Response

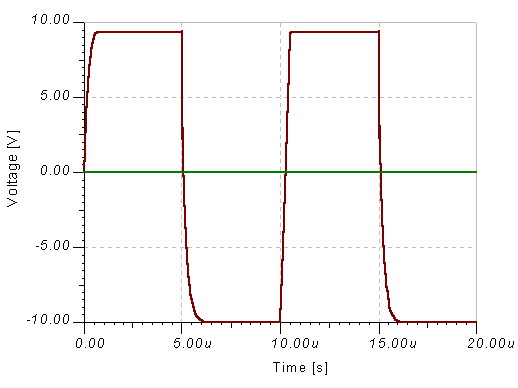

Squarewave Response with 100kHz Input Applied

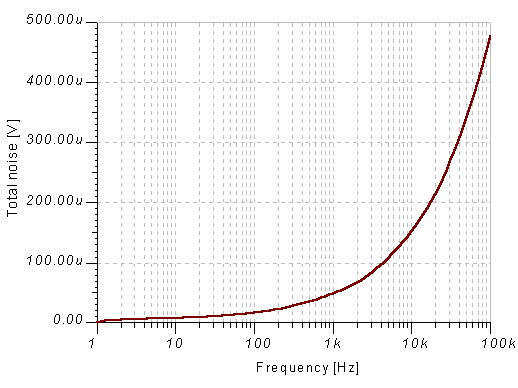

Total Noise at Output Measured with 600R Load

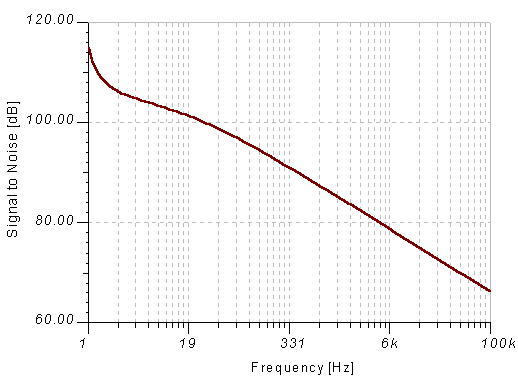

Signal to Noise Ratio at Output
