Here are the general specifications on the ZJ. I'll keep it up to date as best as I can.


LAST UPDATE: April 15, 2009.

This Jeep is currently FOR SALE.....

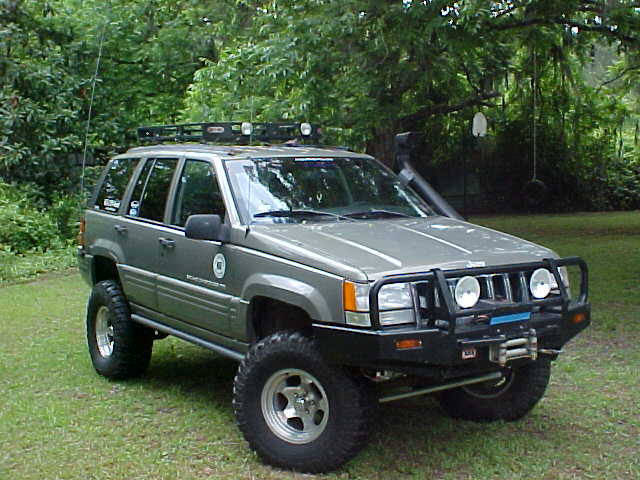

  • 1998 Grand Cherokee Laredo "Special Edition" converted to 4wd
  • 1998 4.0 inline 6 with home-bored throttle body and '03 Powertech intake
  • Imco Race Muffler ((((it used to have a Flowmaster 40 Series muffler. Click here to hear it.))))
  • Safari Snorkel #720SS for a Nissan Exterra.. with a Pig-Custom ammo can airbox.
  • Teraflex D30 High Steering Kit!! CLICK HERE FOR WRITEUP!
  • 1994 ZJ D30, 4.56 with Aussie Locker
  • 1998 ZJ 42RE tranny from a wrecked ZJ originally fitted with a NV242
  • 2000 TJ NP231 T-case. Stock. 2.72:1 ratio
  • '94 ZJ front drive shaft - double cardan type
  • Double Cardan (CV) rear driveshaft from Arizona Driveline
  • Original '98 D35c rear axle, OEM '93 TracLoc unit, 4.56 geared, factory disk brakes, Track-Lock diff.
  • SUSPENSION:5.5" lift consisting of 3.5" Teraflex coils/Anthony's 2" b-b sitting on Rubicon Express Long Arm Upgrade! CLICK HERE FOR WRITEUP!.
    FRONT: Skyjacker ADJ Front Track bar (for TJ), Teraflex (?!?) TJ quick discos up front.
    REAR Up Country I6 front coils in back w/ Anthony's 1.75" b-b, Currie ADJ Trackbar, Longer swaybar end links, Doesch Tech DT3000 shocks at all 4 corners.
  • 33-12.50 X-Terrains on 15x8 Ultra 51/50 wheels
  • Clayton's Hard Rockers, rocker skids. (effective)
  • OEM style t-case and gas tank skids
  • ARB Bull Bar, w' Hella 500 lights
  • WARN M8000 winch
  • Amsteel Blue winch line
  • Con-Ferr Roof rack
  • 2pr of 4" driving lights on the rack- 1pr front, 1pr rear
  • VIAIR 450c aircompressor with Campbell/Hausfeild 2gal tank from crapped out compressor. VIAIR install kit w/ remote gauge, switch, pressure switch, etc...
  • 7 or 8ft Whip ant.
  • Midland CB
  • Kenwood/Sony/Eclipse audio
  • Auxillary A-Pillar gauges- Faze tranny temp, Fuel mixture and Fuel Pressure

    My RigRater Score: 588RRv1.0 with a BOA of 15.27


    PLANED MODS:

  • Bilstein 7100 series shocks (12-14" travel)
  • Bigger rear axle (Ford 9" ??..)
  • Skids for the engine and tranny
  • Truss for D30 / D35
  • Warn H/D shafts for D30
  • aftermarket front driveshaft
  • SYE (and another driveshaft... yaaayyy)

    This page will likely to be the one to change most often. Stay tuned!


    NOTES:

    About the middle of July 2004, I got a used Lockrite for the D35c. I installed it and found out a couple of "issues" I would want everyone to be aware of. If you are running a "high" lift for OEM control arms... like over 3.5"... if you run a locker, it will cause a tendency for the inside rear tire to roll under the Jeep when turning under power. This is amplified when the sway bar is disco'd. Even more so on asphalt. I found this out when we went to the offroad competition in Ellijay on Aug 13th. It was spooky the first time, but very predictable after the first few times. I don't think this would be an issue with long arms or with 2-3" of lift.

    On about May of 2005, I pulled the Lockrite. It had entirely too much banging and popping for my taste. It never slipped... I just wasn't happy with it in my application. :-(
