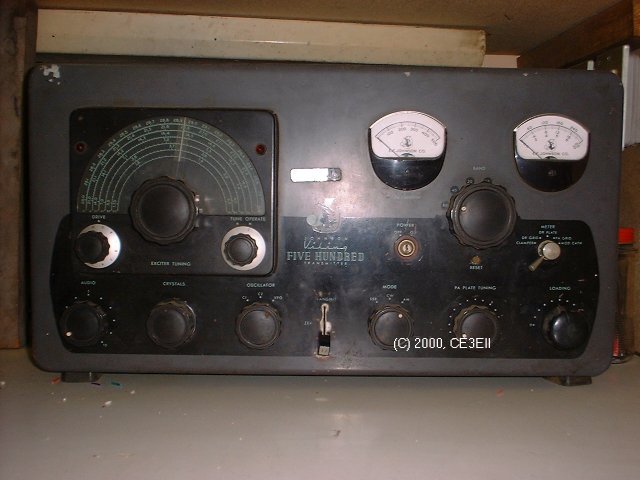

This transmitter works in the 80, 40, 20, 15, 11 and 10 meter bands.
I used a 4-250A final tube instead of the original 4-400A, because of availability.
It has a very stable VFO in an enclosed cabinet and tandem tuning of all
driver stages. The driver tube is a 5763. Audio stages were completely
rebuilt in a separate cabinet, to achieve more fidelity. The modulator
was kept with the original 811A p-p configuration. The restoration was
hard, because at that time no information was available in my country.
