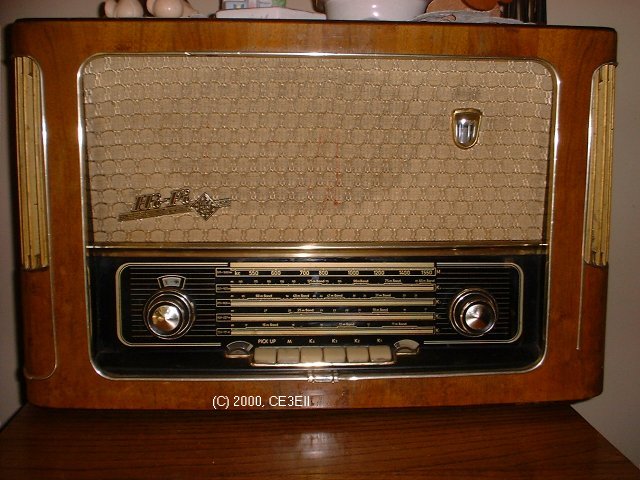

I bought this set in 1996, when a friend was moving from a house to a smaller apartment. The receiver was working in average conditions, with some little scratches on the finishing.

The receiver covers the MW/SW bands. Tuning is easy, and the receiver sounds great. However, SW scales indicate only wavelenght making it harder to find some stations.

Knobs from left to right, top to bottom are:
Volume, ferrite antenna orientation, bass control, pick-up, M, K1, K2, K3, K4, treble, tuning, fine tuning.
Frequency coverage goes between 120m and 11m + 550-1600 kHz (MW).
Tubes belong to the Ex-4y series.

The model number written on the back is D2667wk. I am looking for its schematic.
