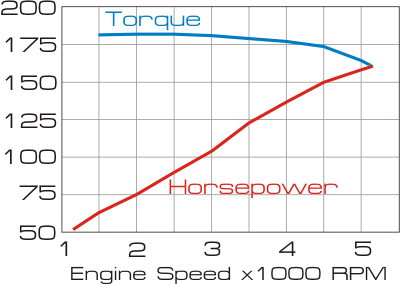

The output of the 3300 engine is 160 horsepower at 5200 RPM, and 185 foot pounds of torque at 2000 RPM.  The flat torque curve of the 3300 provides enhanced driveability, and smooth response throughout the operating range of the engine.







Available Specifications
(listed below)
General Specifications
Displacement:
Fuel System:
Bore:
Stroke:
Compression Ratio:
HP @ RPM:
Torque Ft.Lbs @ RPM:		 204 Cubic Inches
Multiport Fuel Injection
3.70" (93.9 mm)
3.16" (80.3 mm)
9.0:1
160 @ 5200
185 @ 2000
Crankshaft Main & Connecting Rod Bearings
Crankshaft End Play:

Main Bearings
Journal Diameter:
Journal Out-Of-Round:
Journal Taper:
Oil Clearance:

Connecting Rod Bearings
Journal Diameter:
Journal Out-Of-Round:
Journal Taper:
Oil Clearance:		 .003 - .011 in (.08 - .28 mm)


2.4988 - 2.4998 in (63.469 - 63.495 mm)
.0003 in (.008 mm)
.0003 in (.008 mm)
.0003 - .0018 in (.008 - .046 mm)


2.2487 - 2.2499 in (57.117 - 57.147 mm)
.0005 in (.013 mm)
.0003 in (.008 mm)
.0003 in (.008 mm)
Connecting Rod Specifications
Maximum Bend:
Maximum Twist:
Side Play:

*Note:  Bend or Twist over TOTAL LENGTH		 .005 in (.13 mm)
.010 in (.25 mm)
.003 - .015 in (.08 - .38 mm)
Pistons, Pins & Rings
Pistons Clearance:

Pins
Diameter:
Piston Fit:
Rod Fit:

Rings
Compressions
End Gap:
Side Clearance:
Oil
End Gap:
Side Clearance:		 .0004 - .0022 in (.010 - .056 mm)


.9053 - .9055 in (22.994 - 23.000 mm)
.0004 - .0008 in (.010 - .020 mm)
.0007 - .0017 in (.018 - .043 mm)



.010 - .025 in (.25 - .64 mm)
.001 - .003 in (.03 - .08 mm)

.010 - .040 in (.25 - 1.02 mm)
.001 - .008 in (.03 - .21 mm)
Cylinder Block Bore
Diameter:
Maximum Taper:
Maximum Out-Of-Round:		 3.70 in (93.9 mm)
.0005 in (.013 mm)
.0004 in (.010 mm)
Valves & Valve Springs
Intake Valves
Face Angle:
Minimum Margin:

Exhaust Valves
Face Angle:
Minimum Margin:

Vavle Springs
Installed Height:

Pressure
Valve Closed:
Valve Open:
45 Degrees
.025 in (.64 mm)


45 Degrees
.025 in (.64 mm


1.690 - 1.750 in (42.93 - 44.45 mm)


76 - 84 lbs @ 1.750 in (34 - 38 kg @ 44.45 mm)
200 - 220 lbs @ 1.315 in (91 - 100 kg @ 33.40 mm)
Cylinder Head
Maximum Warpage:

Valve Seats
Intake Valve
Seat Angle:
Seat Width:

Exhaust Valve
Seat Angle:
Seat Width:

Valve Guide Oil Clearance
Intake Valve:
Exhaust Valve:		 .010 in (.25 mm)



45 Degrees
.060 - .080 in (1.53 - 2.03 mm)


45 Degrees
.090 - .110 in (2.29 - 2.79 mm)


.0015 - .0035 in (.038 - .089 mm)
.0015 - .0032 in (.038 - .081 mm)
Camshaft
Journal Diameter:

Lobe Lift
Intake:
Exhaust:

Oil Clearance:		 1.785 - 1.786 in (45.34 - 45.36 mm)


.250 in (6.35 mm)
.255 in (6.48 mm)

.0005 - .0035 in (.013 - .089 mm)
