HF-17366
PROJECT: HF-17366
DESCRIPTION: Microprocessor Module STM32F411CEU6
TYPE: 'Black Pill'
BRAND:
STATUS: u
PROJECT START DATE:
LOCALISATION: PL
DOCUMENTATION:
PCB: TPD57366
DIMENSIONS:
CPU : STM32F411CEU6
CPU BRAND: ST
CPU FAMILY: CORTEX M-4
CPU CATALOG NUMBER: UC-665
CLOCK: 100 MHz
FLASH: 512K
RAM: 128K
REMARKS: DSP, FPU
THN ADR: 0xEC
TYPE: 0xBA
HF-17366

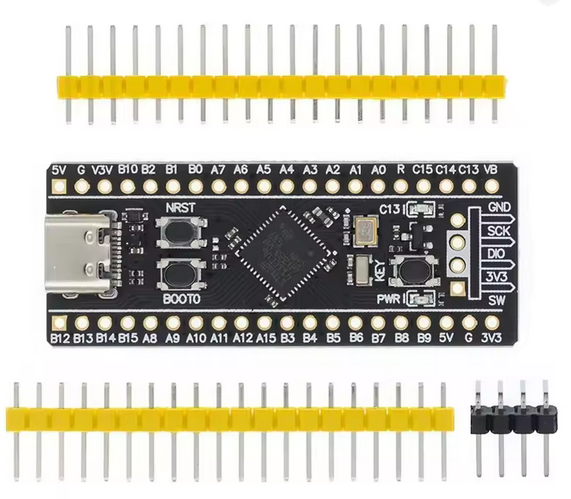

Module called 'Black Pill' from Aliexpress.
Sources:
[1] Datasheet STM32F411CE
