HF-12276
PROJECT: HF-12276
DESCRIPTION: Universal Microprocessor Module MKV56F1M0VLL24
STATUS: w
LOCALISATION:
DOCUMENTATION:
PCB: TPD52906#6
DIMENSIONS: 46 x 38 mm
CPU: MKV56F1M0VLL24
BRAND: NXP
FAMILY: KINETIS KV5x (CORTEX M-7F)
FLASH: 1M
RAM: 256K
MAX CLOCK: 240 MHz
SUPPLY VOLTAGE: 1.7 - 3.6 V
CPU CATALOG NUMBER: UC-721
THN ADDRESS: 0x60
UC TYPE: 0xBD

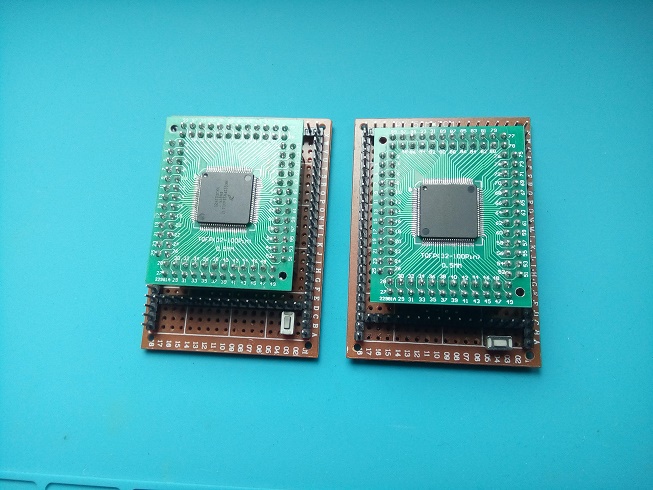

HF-12275 with HF-60275 and HF-12276 with HF-60276
Module assembled and not tested yet. Extension board HF-60276 is under construction.
Designator HF-6076 is planned for that system.
Kinetis KV56 is interesting architecture:
Sources:
[1] MKV56F1M0VLL24 datasheet
