HF-17391

PROJECT: HF-17391
DESCRIPTION: Car Radio (Best)
TYPE: ?
BRAND: BEST
STATUS: g
PROJECT START DATE: 2015
LOCALISATION: DD
DOCUMENTATION: nil
PCB: TPD57391
DIMENSIONS:

CPU: UPD78F0536
BRAND: NEC
FAMILY: 78K0/KE2
FLASH: 96 KB
RAM: 1 KB + 4 KB
MAX CLOCK: 20 MHz (10 MIPS)
CATALOG NUMBER: UC-214
THN ADDRESS: 0x78
TYPE: 0x40

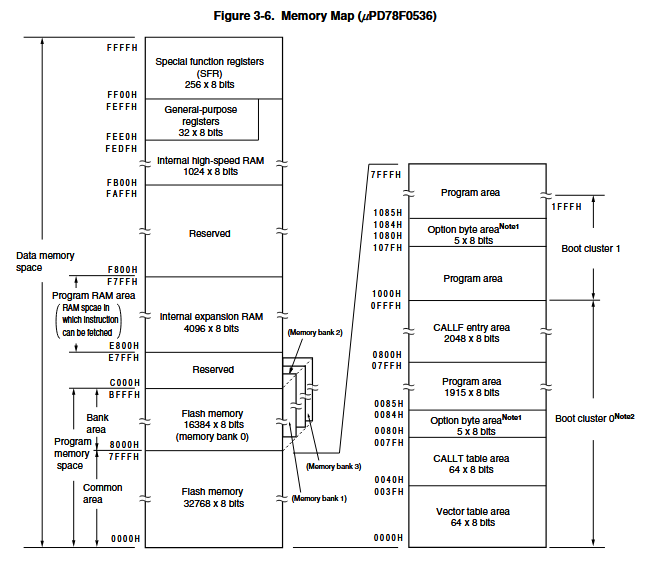

UPD78F0536 memory map

Project Info

78K0/KE2 is interesting uC family because code can be executed from internal expanded RAM (4 KB). But very probably UC-214 is protected from erasing because it is typical in car radios...
Memory is organised as 32KB common area + 4 banks of 16KB what is not very convienent but probably can be used for a storage of users applications.

Sources:
[1] 78K0/KE2 User’s Manual
[2] 78K0/Kx2 8-Bit Single-Chip Microcontrollers Flash Memory Programming (Programmer)
