HF-17786
PROJECT: HF-17786

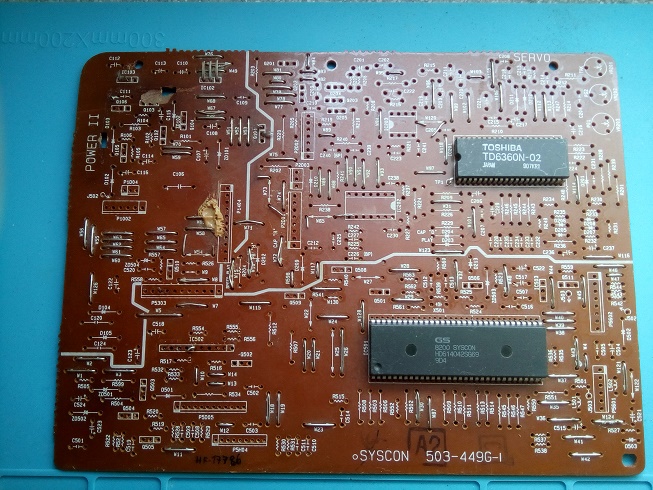

DESCRIPTION: VCR board
TYPE: SYSCON 503-449G-1
BRAND: unknown
STATUS: z
PROJECT START DATE:
LOCALISATION: MR
DOCUMENTATION: nil
PCB: TPD57786
DIMENSIONS:
HARDWARE VERSION: 2.1
CPU : HD614042
CPU BRAND: GS (HITACHI)
CPU FAMILY: HMCS400 (4b)
CPU CATALOG NUMBER: UC-333
CLOCK:
RAM:
HF-17786 (modified)
For disassembly (most components were dissasembled already). I hold it for experiments with TV ICs but now I cannot find real usage for it.
CPU is old 4-bit processor which cannot be reused in my projects.
Update: disassembled.
Element Base
HD614042 - CPU
TD6360 - SERVO
