MODEL 700 THROTTLE BODY INJECTION

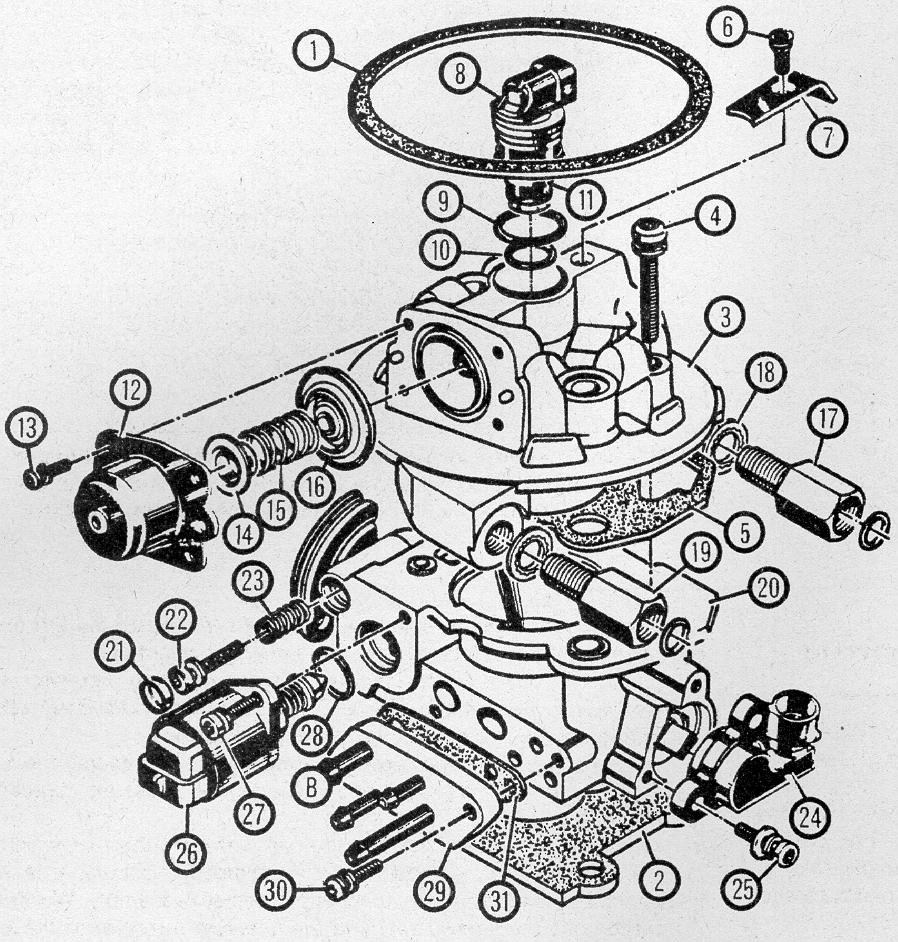

Model 700 Throttle Body Injection (TBI) unit (1987 -1994)	- components
	1. Air Filter Gasket 2. Flange Gasket 3. Fuel Meter Assembly 4. Fuel Meter Body Screw 5. Fuel Meter Body-To-Throttle Body Gasket 6. Injector Retainer Screw 7. Injector Retainer 8. Fuel Injector 9. O-Ring - Fuel Injector Upper 10. O-Ring - Fuel Injector Lower 11. Injector Filter 12. Pressure Regulator Cover Assembly 13. Pressure Regulator Attaching Screw 14. Pressure Regulator Spring Seat 15. Pressure Regulator Spring 16. Pressure Regulator Diaphragm 17. Fuel Inlet Nut 18. Fuel Nut Seal 19. Fuel Outlet Nut 20. Throttle Body Assembly 21. Idle Stop Screw Plug 22. Idle Stop Screw 23. Idle Stop Screw Spring 24. Throttle Position Sensor 25. Tps Attaching Screw 26. Idle Air Control (IAC) Valve 27. IAC Valve Attaching Screw 28. IAC Valve O-Ring 29. Tube Manifold Assembly 30. Manifold Attaching Screw 31. Tube Manifold Gasket
