Legacy Mill Projects |

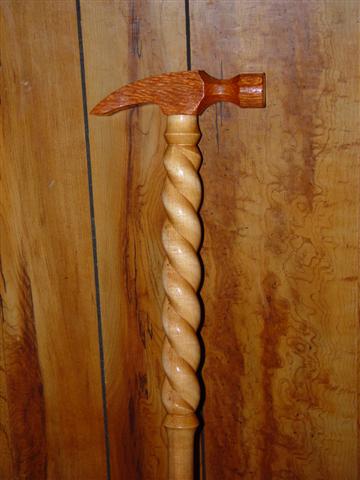

I made this cane for my grandfathers Christmas present. Lacewood with hard maple shaft. spiral is a 2 start rope using a 1 1/2" rope bit. The cane is 36.5" tall and has a common crutch pad on the bottom. |
![]() |
![]() |
![]() |
![]() |

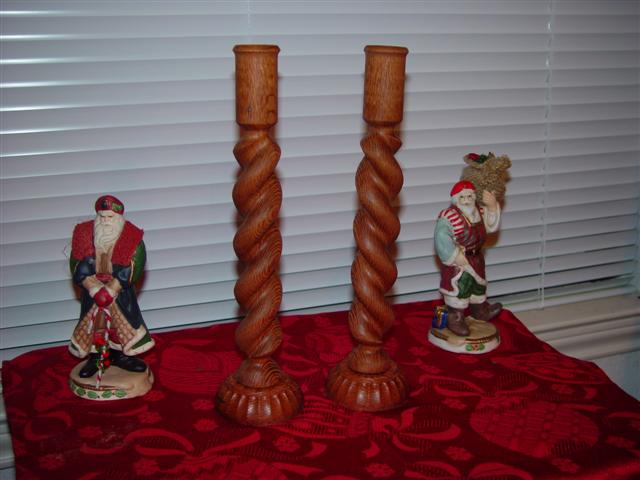

Here are some pics of the candlesticks I made. They are 10" tall with a 3" diam. base. They feature a 3"pitch 2 start barley twist one is lefthand spiral and the other is righthanded Think they really came out nice. |

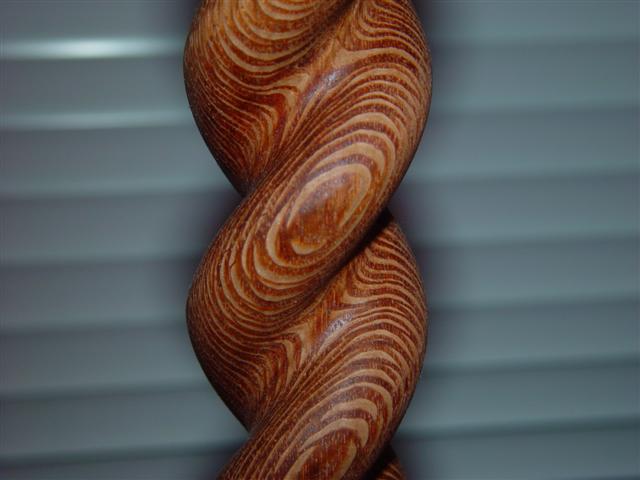

The grain of the lacewood does really well when making spirals |

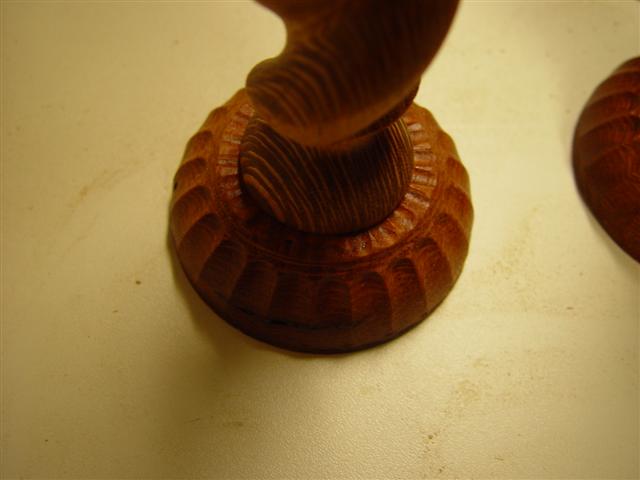

In this picture you can see how the indexin feature allows you to do some neat scalloping |
![]() |
![]() |
![]() |
![]() |
DIGITAL READOUT |

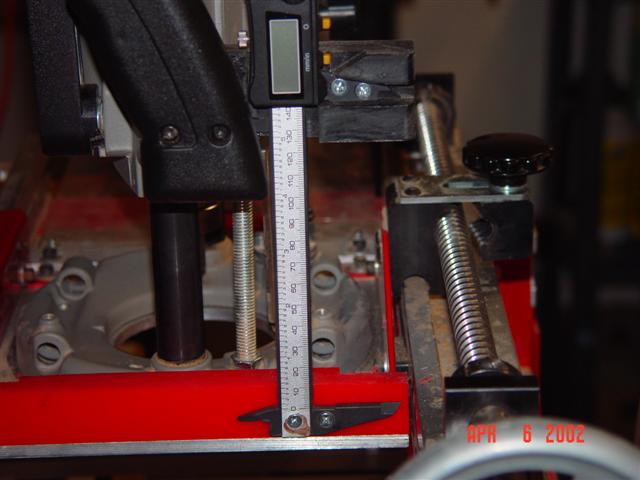

Here is an cheap mod that will increase the functionality of your Leagacy Ornamental Mill. For about $25 I was able to add this Digital caliper to measure cut depth |

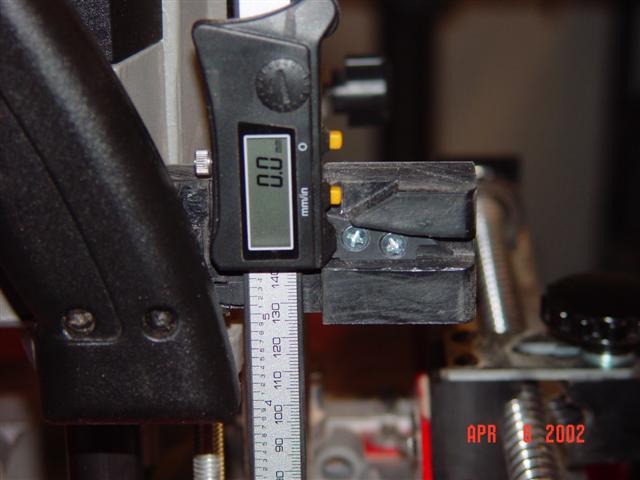

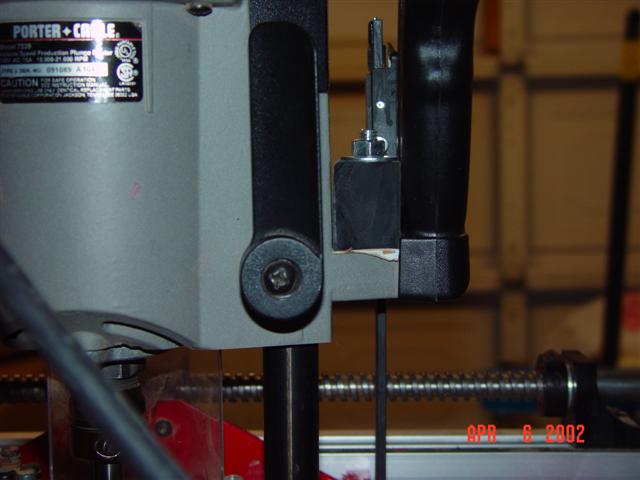

The upper and lower mounting block are made of UHMW plastic. It was milled out to fit the caliper using the Legacy freehand and following a scribe line of the calipers shape. It took about 1 hour to figure out and make. Below you can see how I mounted the block. I drilled a 5/16" hole in the cast portion of the handle and the block. I used shims made of tape and a 5/16" bolt to hold it all together. The shims allowed me to plumb the caliper shaft to the router guide post. |

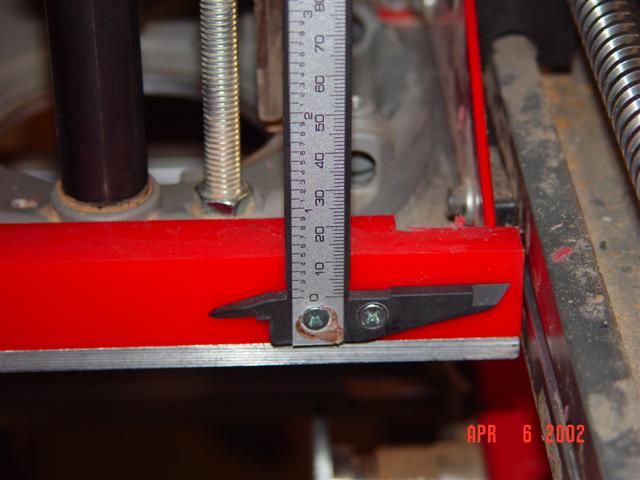

The lower mount is also made of UHMW plastic and is simply screwed to the aluminum plate from below with smallmachine screws This was an easy project and once I add a router raiser. It will be more precise than ever |
Parts list: digital calipers - Woodcraft Supply - $20 UHMW plastic - Woodcraft Supply - $10 #6x1/2" wood screws - Qty 6 |
