by David Jukes-Hughes RIBA MRAIC | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Farm buildings | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
![]() |

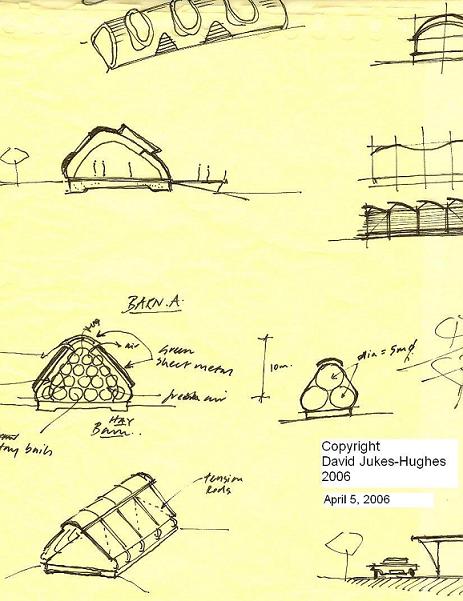

Hay barn concepts for farms in the Bulkley Valley, BC, Canada, April 2006 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Building 1: Metal roof to have PVF pixilated camouflage paint finish as used in the Canadian army battle dress | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

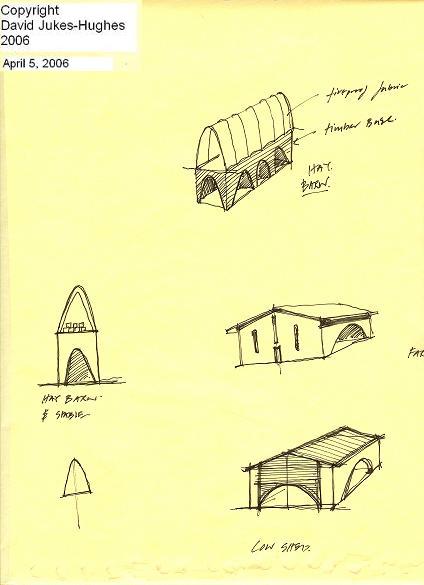

Building 2: to have a white fire proof fabric canopy. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Building 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Building 2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Industrial buildings | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

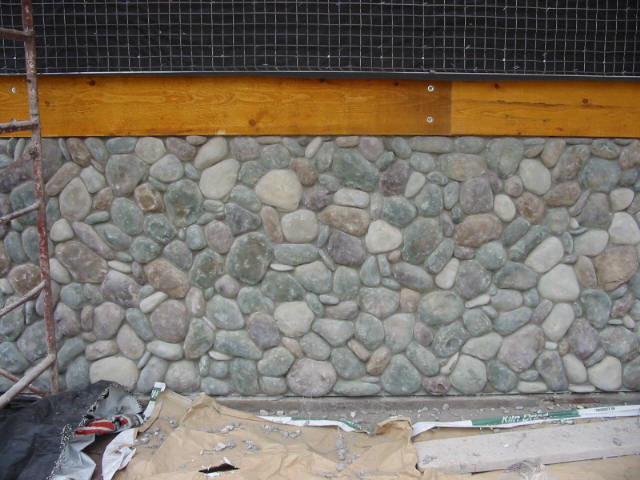

An example of Pebble Dashing found in the Bulkley Valley, Smithers, BC, Canada. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

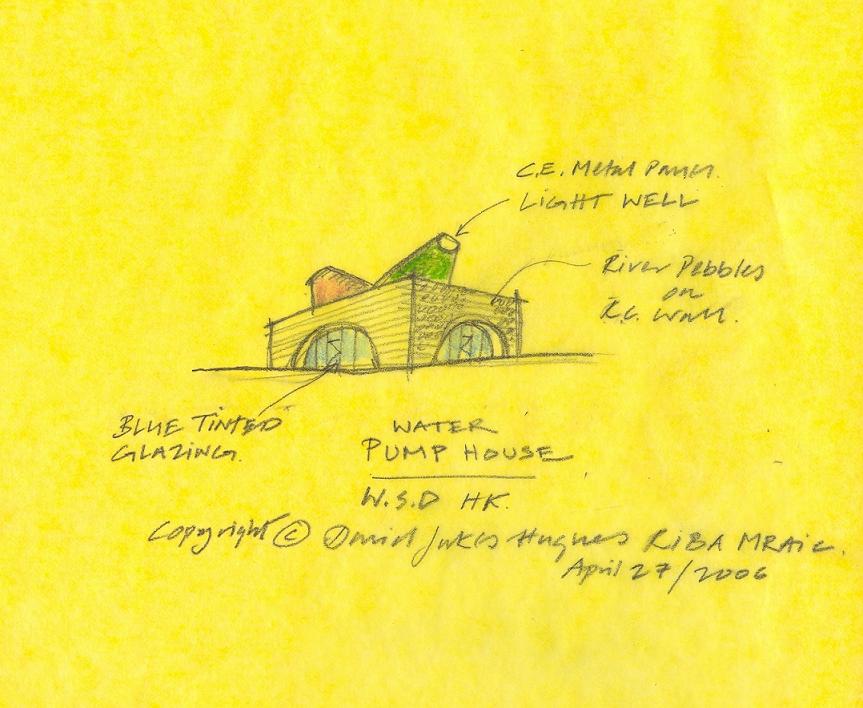

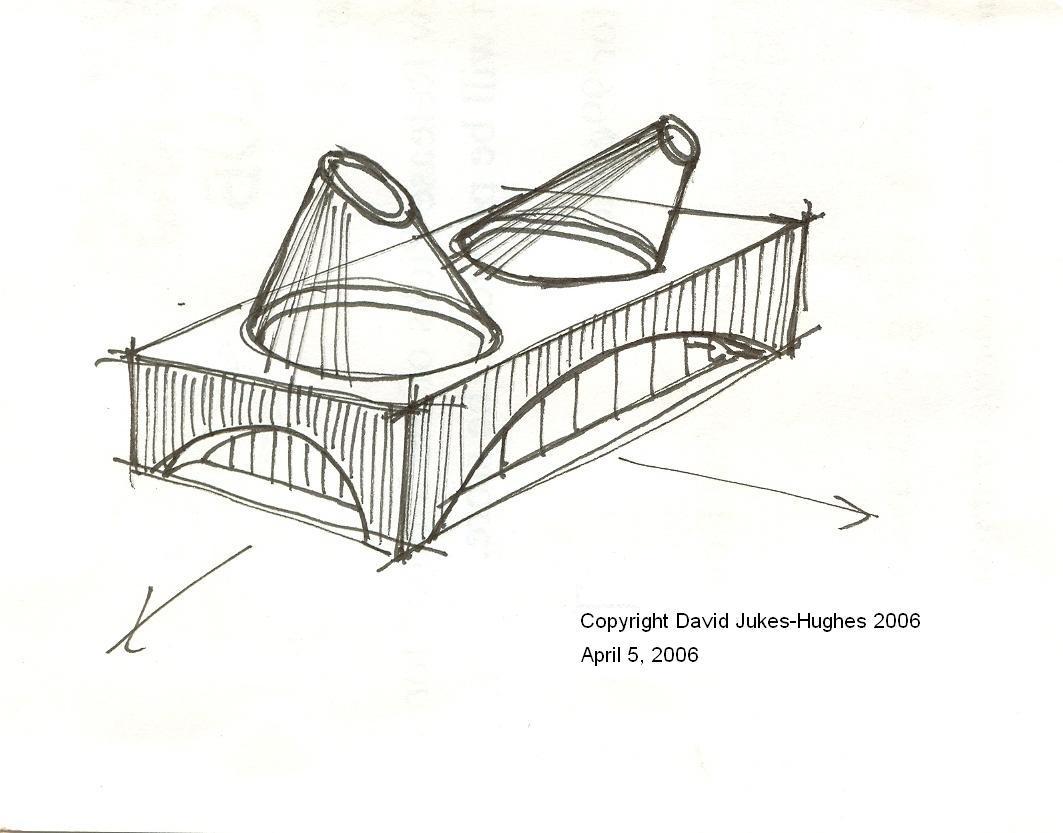

Concept for a water pump house for the Water Supply Department (WSD) of Hong Kong, 27 April 2006: "The Horns." |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

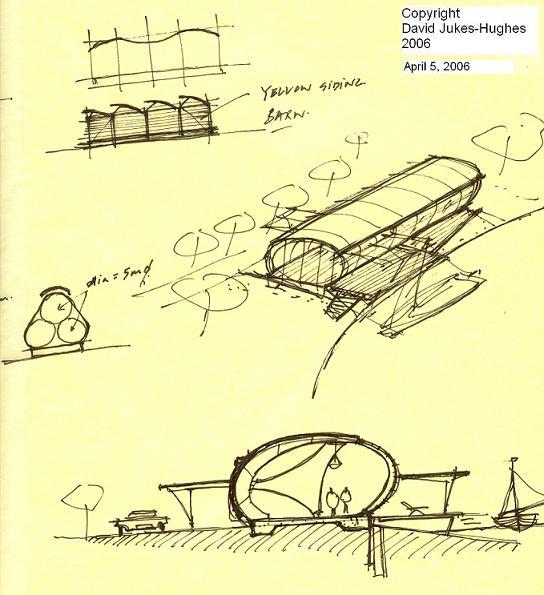

House | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Roof to be PVF silver painted aluminium. Wall to be T&G timber natural finish | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

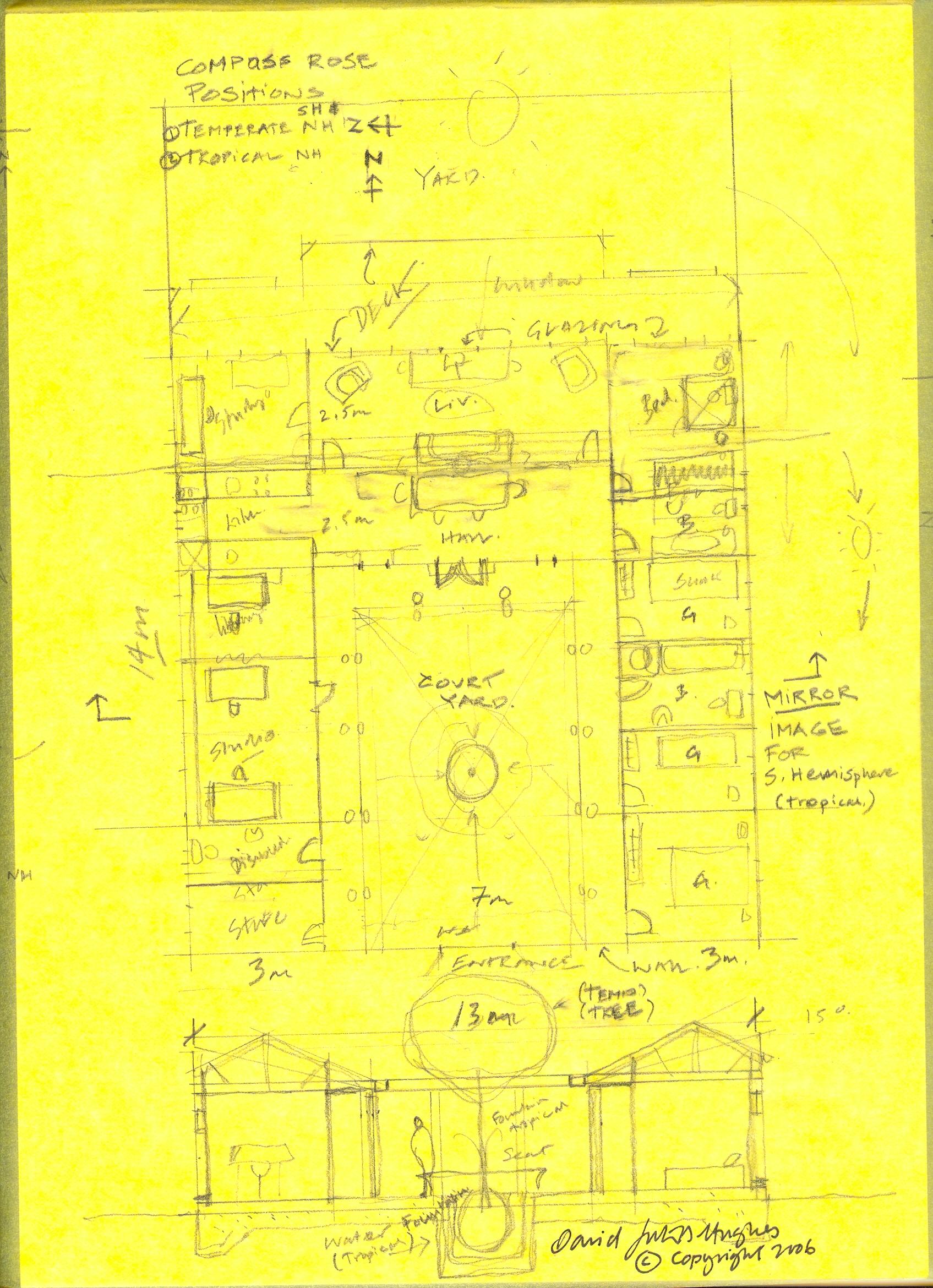

Architect's House | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

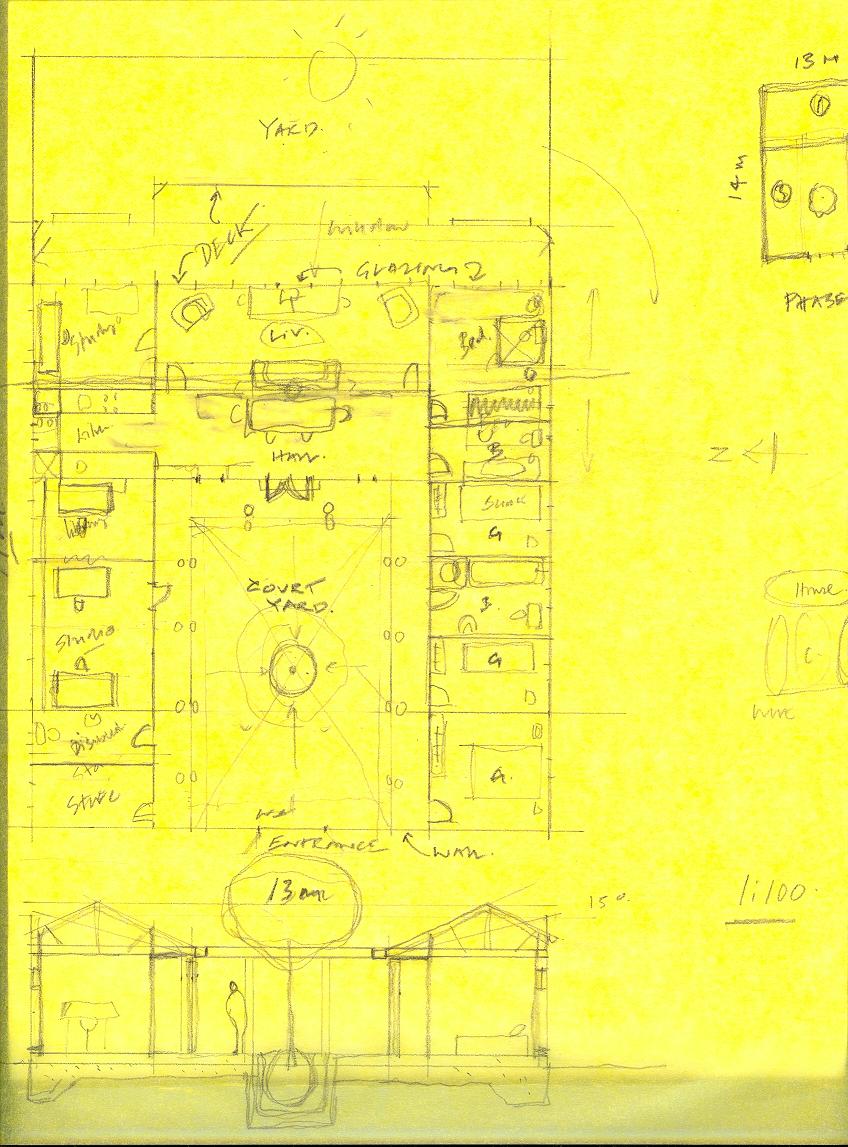

Architect's House Revisions 12 April /06 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Transportation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

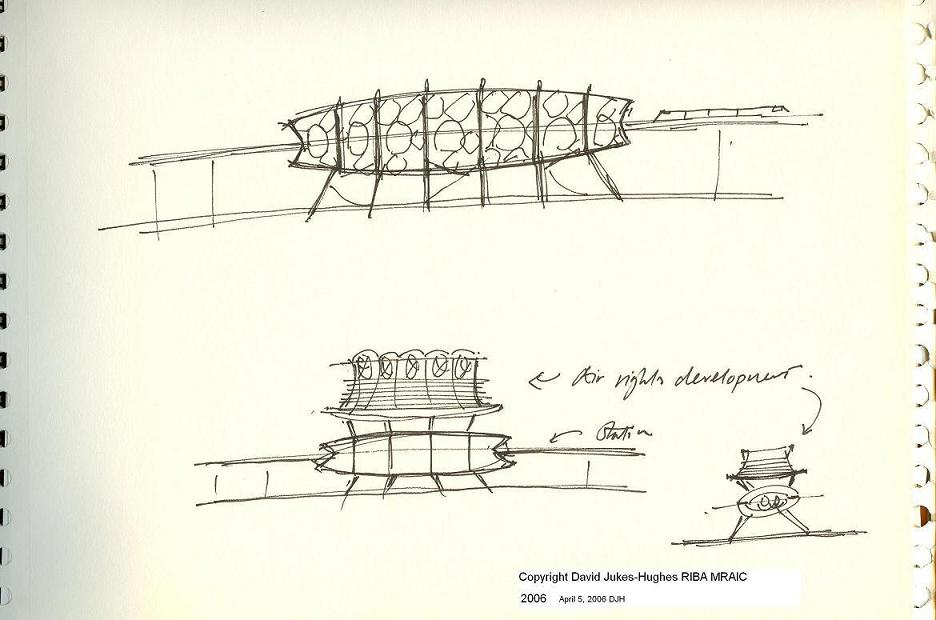

Urban Railway Station on Viaduct Structure. April 2006 Possible location: The RAV project on Cambie Road |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Inspired by Archigram, and the CAD technicians | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wall finish to be crumpled aluminuim panels, with PVF finish. Colours to match a Caddisfly larvae case (browns, greys, silver etc.) Tinted glazing between panels top-side, open between panels underneath. Structural body segments to be silver, legs to be red. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

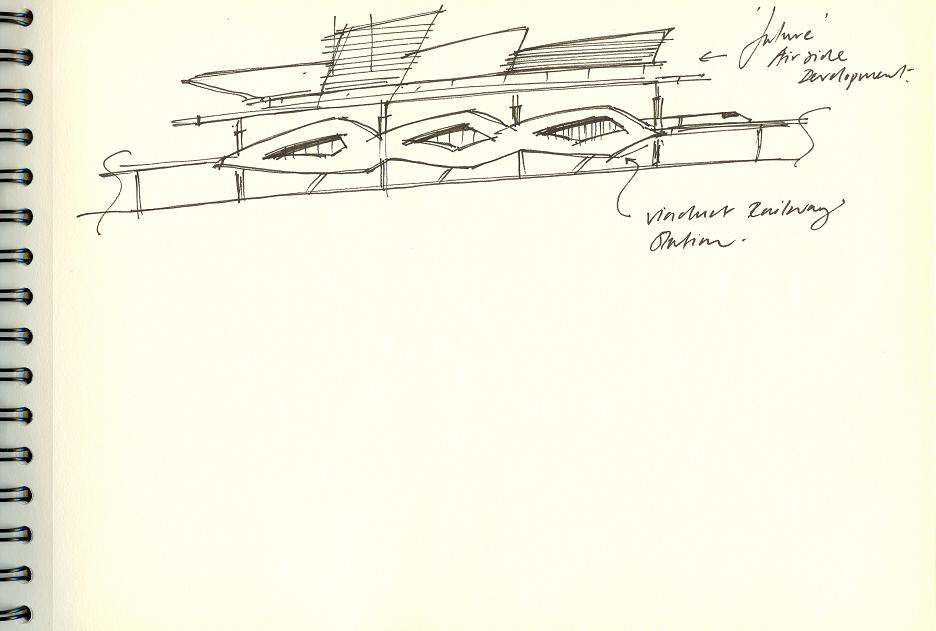

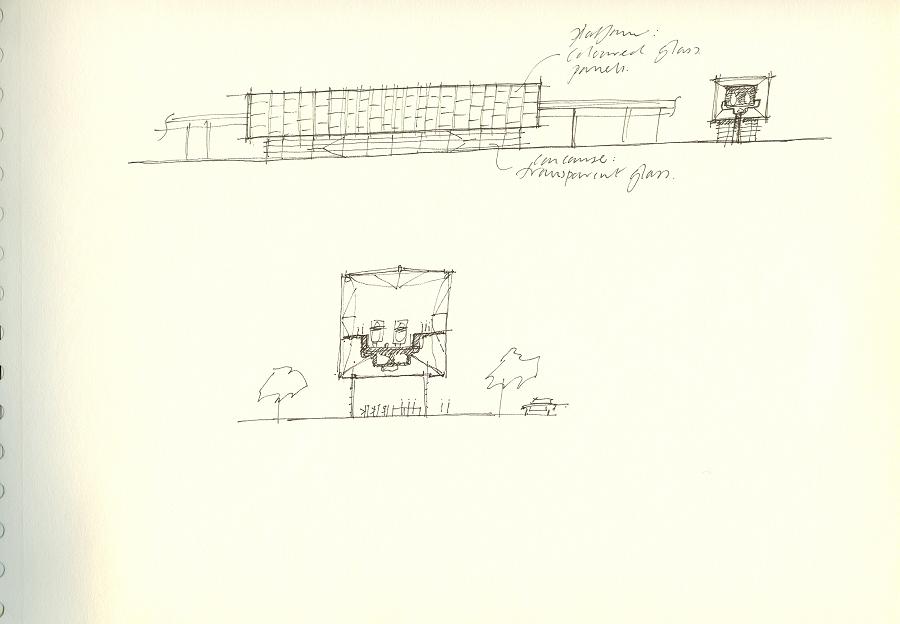

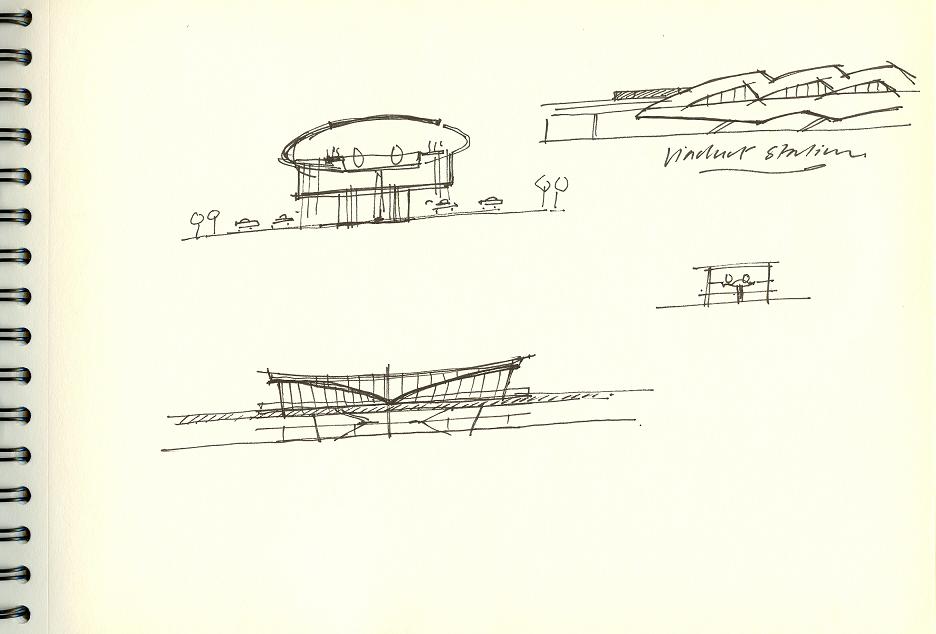

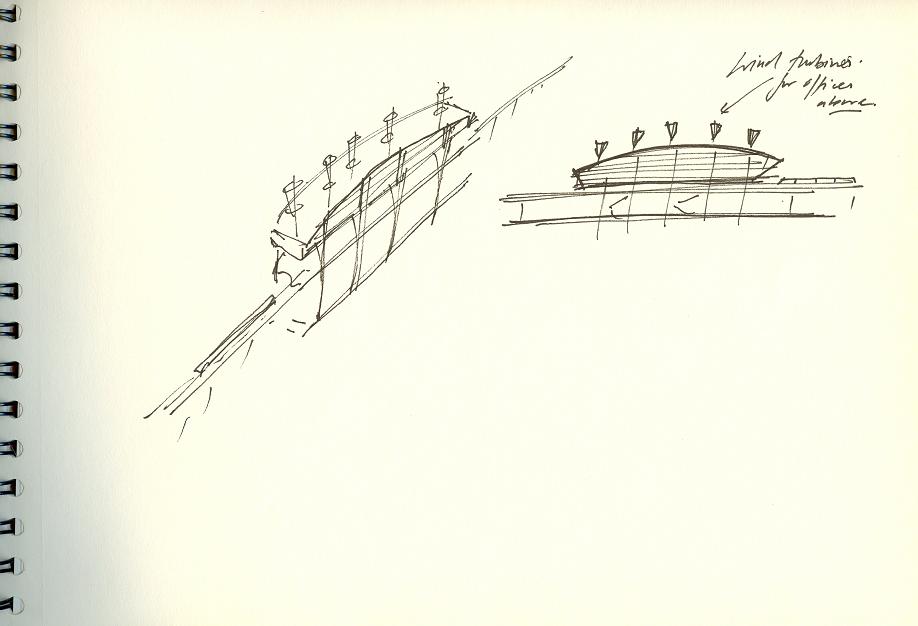

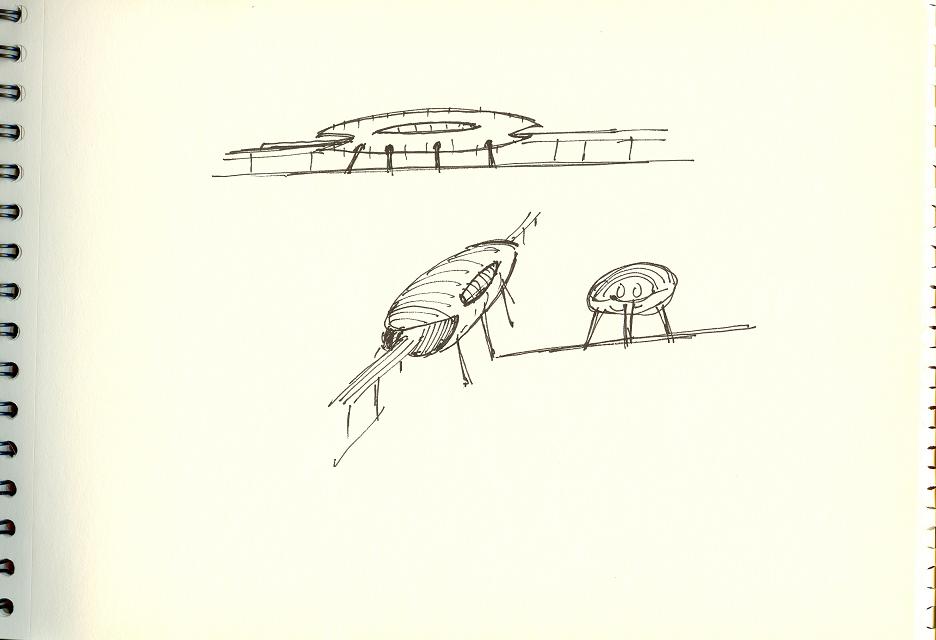

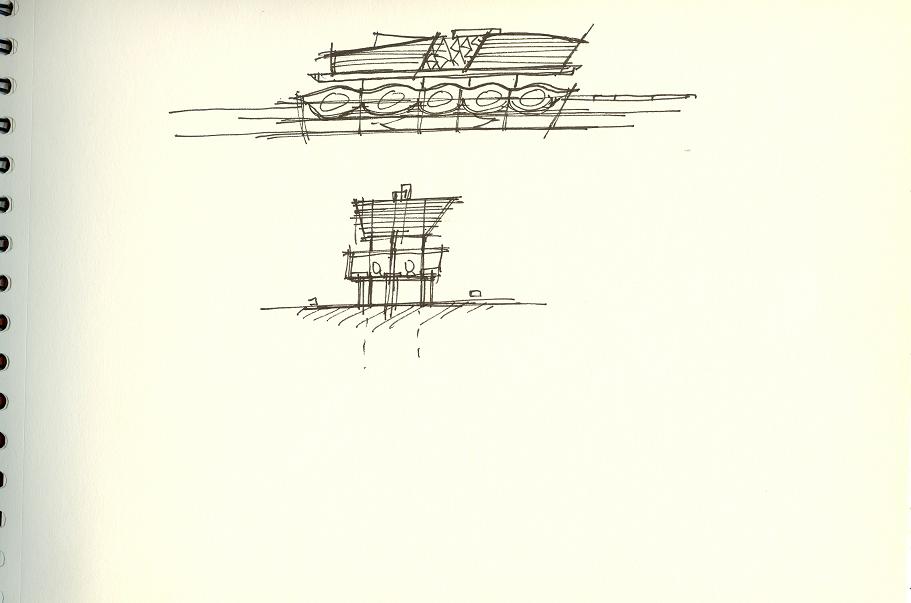

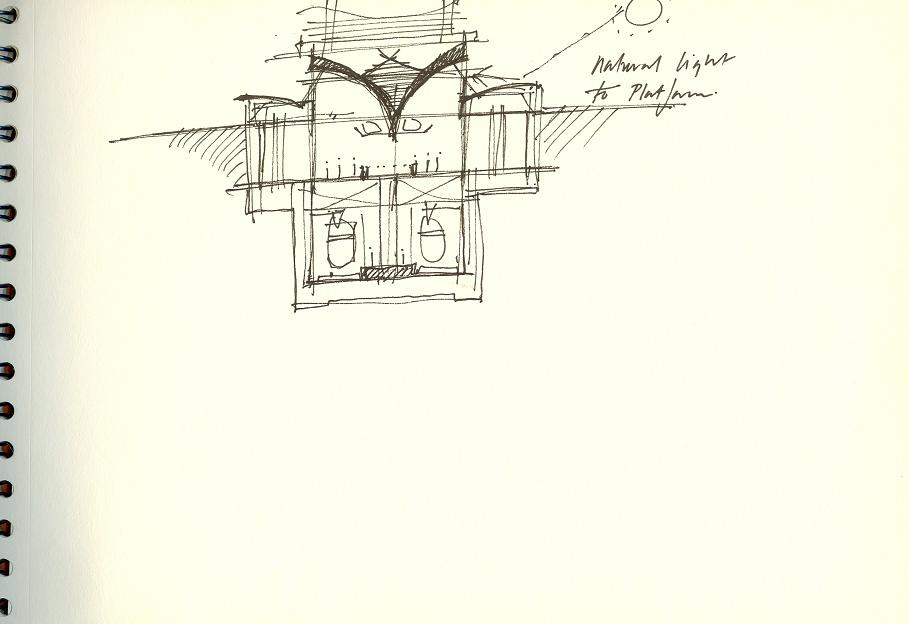

Other design concept sketches for urban railway stations. April 2006: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Images: 1, 2, 3, 5, 6, 7, 8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Project Proposal to open up the Rangon-Bangkok Railway ("The Burma Railway.") |
