Equiptment Plans

Metal Rail Plans

These are some plans for a metal rail. It's sturdy, It'll last a long time, and is easy to build and take apart. All materials can be bought at a home supply store (Home Depot) and all the materials can be found in the plumbing department.

Materials (It'll cost around $50 total)

*one 10-foot 1-1/4 in threaded steel plumbing pipe
*three 1 foot 1-1/4 in threaded steel plumbing pipes
*one 1-1/4 in steel elbow joint
*one 1-1/4 in steel T joint
*two 1-1/4 in steel caps

Directions

Screw the elbow joint to one end of the 10-foot pipe. Screw the top of one of the 1-foot pipes to the elbow joint. Screw the T joint to the bottom of the 1 foot pipe. Screw the other two 1-foot pipes to both ends of the T joint. Screw the two caps to the ends of the 1-foot pipes to keep the rail from wabbling.

Funbox Plans

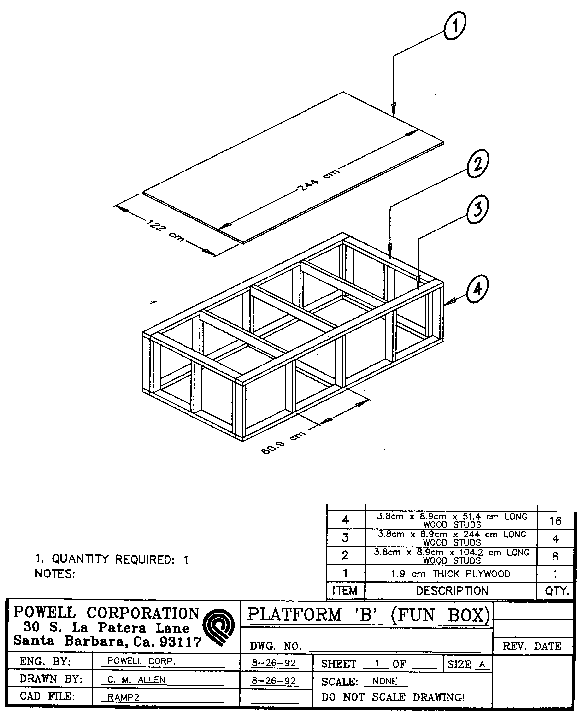

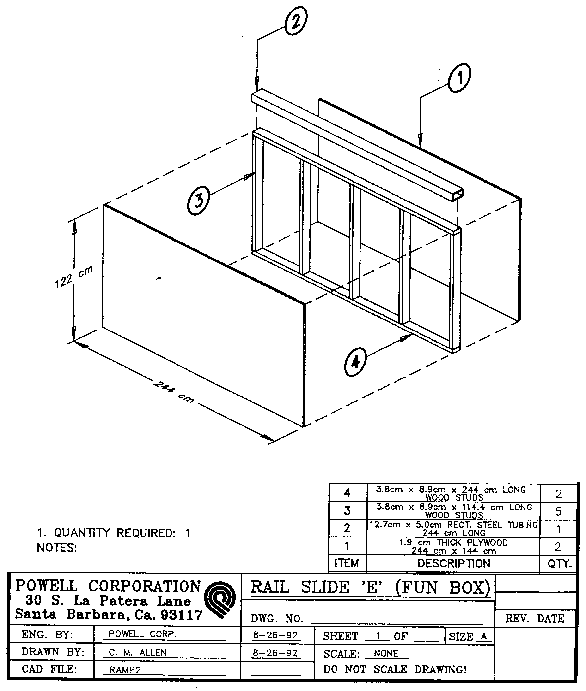

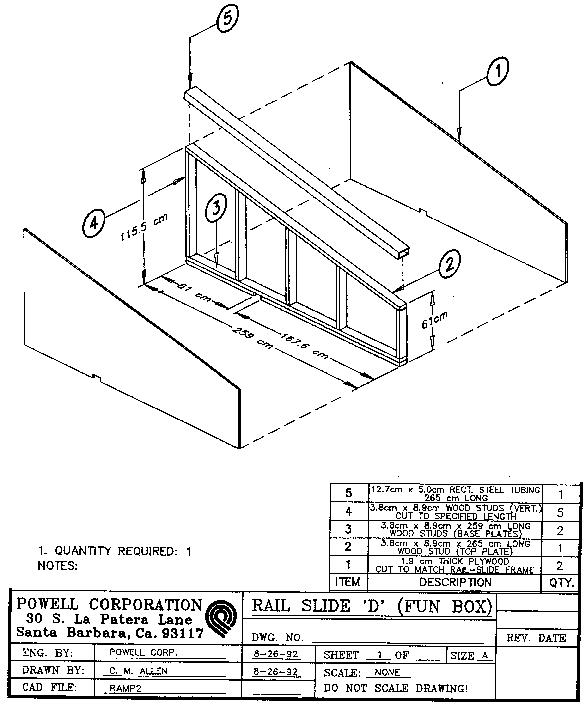

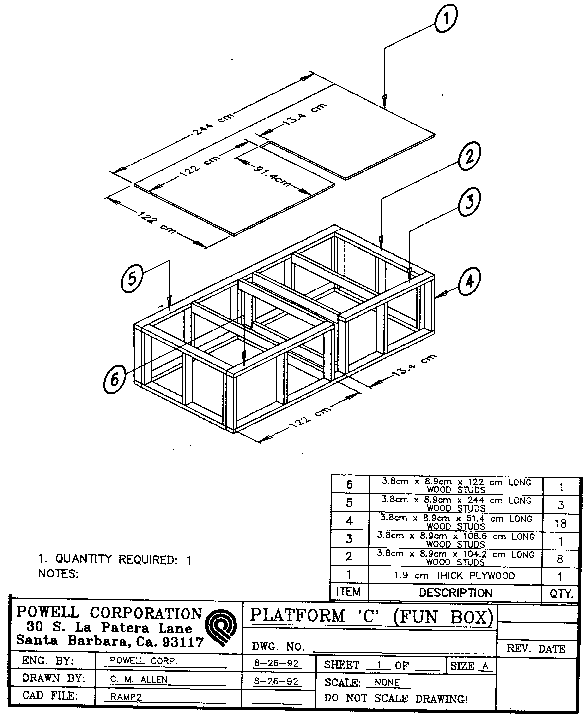

Below are pictures of the separarte parts of the funbox and their size, quantity and assembly specifications. Click on each picture to see an enlarged view of that piece.
