Volvo 2001 S40/V40 OnLine Brochure |
|||||||||||||
![]() |
|||||||||||||
|
|||||||||||||
Personal transportation is a choice. Be
pro-active. Why drive an appliance when a turbocharged,
technologically-advanced European sports sedan is easily within reach? The
Volvo S40. Consider it a new statement of independence. A Volvo. Heart and
soul. Designed around you and the way you live your life.
Taut and
physically responsive, the S40 keeps promises. Nimble and crisp, it moves
with 160 hp. twin-scroll turbo quickness. S40's four-speed automatic
transmission with sport, economy and winter modes, translates into
effortless urban mobility. |
|||||||||||||
|
|||||||||||||
![]()

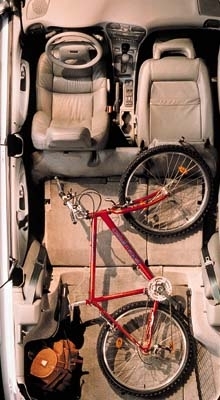

What would you like to carry?
The mountain bike you see here? A snowboard? Your new desktop and peripherals?
Chances are they'll fit. Securely. A net and belt keep cargo In place. If you have valuables you don't want the
world to see, V40's retractable cover shields luggage, photo gear and other vulnerable items.
Even the front seat folds down when the mission calls for space. V40 gives you ultimate flexibility. |
|||||||||||||
The S40 and
V40 optional audio system includes in-dash CD, AM/FM stereo with full
logic cassette, noise reduction and multiple speakers.
Volvo audio systems aren't just car audio systems. Like a mobile concert hall. Spatial relationships, sound waves, acoustic insulation, all those techy things that matter, matter here. Bottom line, both the standard and optional systems are designed exclusively for the S40 and V40 with a sweet sound that automatically adjusts for any noise you let in from windows or sunroof. What could be better? The tunes just keep on coming with the optional six-disc CD changer.Listen, there are six speakers in the S40, and seven in the V40, all strategically positioned for maximum acoustic impact. A whole series of well selected options can make even the most demanding audiophile feel right at home. The V40 Premium Sound System adds an active base speaker with integrated amplifier.
|
|||||||||||||
AT VOLVO, SAFETY IS A FACT OF LIFE. Look in the dictionary under "Safety." There should be a picture
of a Volvo. The S40 and V40 are all about safety, which means everything -
engine, steering, brakes, suspension, even details like a rear fog lamp
and optional headlamp washers and wipers that improve vision - works
together to give a driver the tools to avoid an accident. But if an
accident is unavoidable, Volvo has a Plan B: the body is designed to help
protect occupants as much as possible. Here are some of the steps Volvo
takes for that:
|
|||||||||||||
At Volvo,
safety has always been a passion, never an afterthought. And while they
enhance a lifestyle, S40 and V40 are designed, first and foremost, to help
protect the life in that word. WHIPS, or Whiplash Protection Seating System, is all about minimizing whiplash neck and back injuries. It's a system based on body geometry and accident dynamics. If someone smacks the rear end of your S40 or V40 hard enough, WHIPS helps to diffuse the violent energy the accident can trigger. Think about that next time you look in your rear-view and see someone approaching a little too quickly. SIPS, Volvo's patented Side Impact Protection System, offers protection from side impact. SIPS provides structural support that sends accident energy away from the side and into the beams, pillars, floor and roof. Energy-absorbing door materials also help reduce impact force. And the Side Impact Air Bags (SIPSBAG IITM) are in the seat backrest rather than the door, which means they're always at your side no matter where you move your seat. Exterior side- marker lamps help make the S40 and V40 more visible. Like people wouldn't notice them already. Should an S40 or V40 be struck from behind, the front seat backrest and head restraint move backwards in parallel while the occupant's head and upper torso are evenly, firmly and uniformly supported. The backrest is designed to then tip backwards to help prevent the damaging forward whiplash movement.
|
|||||||||||||
You already know the S40 and V40 are designed for safety and to be comfortable. Here's why they're fun. The turbocharged engine provides the power that makes freeway on-ramps, uphill climbs and passing situations bygone concerns. The 4-speed automatic transmission offers three modes: sport, economy and winter. Front-Wheel-Drive and a sophisticated suspension provide that distinctive European adhesive road feel without sacrificing smoothness. Variable-assist power steering is quick and precise. And when you decide to stop, the Anti-Lock Brakes with four-wheel discs do that very nicely. |
|||||||||||||
WE
CHOOSE TO MAKE A DIFFERENCE WITH VOLVO ENVIRONMENTAL CARE.
Volvo is one of the most environmentally
responsible cars in the world. This has come about because more than 25
years ago, Volvo made the responsible choice - to adopt a holistic
approach to the environment and find ways to reduce the environmental
impact of the vehicles we make. |
|||||||||||||
Volvo is
committed to rewarding your choice of vehicle with a superior ownership
experience. |
|||||||||||||
ENGINE Four-cylinder petrol engines Double overhead camshafts, 16 valves. Continually variable valve timing (CVVT) on the inlet or exhaust side. Three-way catalytic converter with Lambda sensor. Electronic engine management. The turbocharged petrol engines also have twin-scroll turbo and charge-air cooler (Intercooler). DRIVELINE CHASSIS
|
|||||||||||||
|
Estimated EPA: | 1.9T | SE |
City: 22 mpg Hwy: 32 mpg |
22 mpg 32 mpg |
|
Warranty: | 1.9T | SE |
4 Years/50,000 miles | 4 Years/50,000 miles | |
Brakes: | 1.9T | SE |
Four-channel Anti-Lock Braking System (ABS). Electronic Brake Distribution (EBD) | S | S |
Four-wheel, power-assisted disc brakes | S | S |
Dimensions & Weights: | 1.9T | SE |
Curb weight | 2767 lbs. | 2767 lbs. |
Front track | 58.0 in. | 58.0 in. |
Cargo Capacity | 13.2 cu. ft. | 13.2 cu. ft. |
Interior Volume | 112.7 cu. ft. | 112.7 cu. ft. |
Overall height | 56.0 in. | 56.0 in. |
Overall length | 177.8 in. | 177.8 in. |
Overall width | 67.7 in. | 67.7 in. |
Rear track | 58.0 in. | 58.0 in. |
Wheelbase | 100.9 in. | 100.9 in. |
Headroom w/ sunroof | 37.6 in. | 37.6 in. |
Headroom w/o sunroof | 38.7 in. | 38.7 in. |
Legroom | 41.1 in. | 41.1 in. |
Shoulder Room | 54.0 in. | 54.0 in. |
Fuel Tank Capacity | 15.8 U.S. gallons | 15.8 U.S. gallons |
Top Speed | 134 mph | 134 mph |
Towing Capacity | 2,000 lbs. | 2,000 lbs. |
Engine: | 1.9T | SE |
Transversely-mounted, 1.9 liter, 4-cylinder, double overhead cam twin-scroll turbocharger intercooler | S | S |
Compression ratio | 10.3:1 | 10.3:1 |
Horsepower (SAE net) | 160 @ 5,100 rpm | 160 @ 5,100 rpm |
Torque (ft./lbs. SAE net) | 170 @ 1,800 rpm | 170 @ 1,800 rpm |
Specifications: | 1.9T | SE |
Front Wheel Drive | S | S |
All-season tires | S | S |
Cargo Strap and side net | S | S |
Dynamic cloth upholstery | S | N/A |
Leather/cloth upholstery | N/A | S |
Cruise control | S | S |
Cupholders | S | S |
Daytime Running Lights | S | S |
Electronic Climate Control with cabin air filter | S | S |
Immobilizer, encrypted ignition key | S | S |
Two entry lights (in front door foot wells) | S | S |
Split 70/30 folding rear seat | S | S |
Plush front and rear floor mats | S | S |
Front door panel storage pockets | S | S |
Front seat back storage pockets | S | S |
Front seat belts have automatic height adjustment and pre-tensioners | S | S |
Specifications: | 1.9T | SE |
Five padded head restraints | S | S |
Heated dual power mirrors | S | S |
Home Safe Lighting | S | S |
Illuminated vanity mirrors in driver's and front passenger's sun visors | S | S |
Illuminated, lockable glove box | S | S |
Interior cabin light delay | S | S |
Luggage/cargo area lights | S | S |
Driver's seat with tilt, recline, adjustable lumbar | S | S |
Central power door locking system with remote keyless entry: includes tailgate and fuel filler lid locks | S | S |
Power windows with "auto down" for driver's window | S | S |
Four front and rear reading lamps | S | S |
Rear fog light with auto-off | S | S |
Rear window defroster | S | S |
Dual-stage airbags for driver and front passenger | S | S |
HU-415 AM/FM cassette stereo, Dolby™, anti-theft circuitry, 100-watt amplifier, six speakers and power antenna | S | N/A |
HU-615 Premum sound system w/ single in-dash CD, premium speakers | N/A | S |
Specifications: | 1.9T | SE |
Seat belts: five, 3-point inertia-reel belts | S | S |
Side Impact Protection System (SIPS) | S | S |
Side Impact Protection System Airbags (SIPSBAG II) | S | S |
Inflatable Side Curtain | S | S |
Tilt steering wheel | S | S |
Tinted windows | S | S |
Tool Kit | S | S |
Side-Mounted Turn Indicators | S | S |
Two-speed windshield wipers with speed sensitive intermittent cycle | S | S |
Whiplash Protection System (WHIPS) | S | S |
Front Spoiler | N/A | S |
Rear Spoiler | N/A | S |
Black Bezel Headlamps | N/A | S |
Front Foglights | N/A | S |
Trip Computer | N/A | S |
Power Driver's Seat | O | S |
Sport Steering Wheel | N/A | S |
Power glass sunroof | O | S |
TOP | TOP | |
Steering: | 1.9T | SE |
Power-assisted, rack-and-pinion 3.2 turns, lock-to-lock | S | S |
Suspension: | 1.9T | SE |
Front: MacPherson strut with asymmetrically-mounted coil springs, hydraulic shock absorbers and 19mm stabilizer bar | S | S |
Rear: Multilink independent rear suspension with coil springs, hydraulic shock absorbers, stabilizer bar and 13 mm stabilizer bar | S | S |
Transmission: | 1.9T | SE |
5-speed microprocessor-controlled automatic with lock-up torque converter. Final drive ratio: 2.54 | S | S |
Wheels & Tires: | 1.9T | SE |
15 x 6 inch eight-spoke alloy wheels | S | N/A |
195/60 H15 All season radial tires | S | N/A |
15" ten-spoke alloy wheels | N/A | S |
Exterior Colors: | ||
Solid Colors (1.9T only): | Red Panama Yellow Blackberry White |
|
Metallic Colors (1.9T only): | Silver Atlantic Blue Black Sapphire Desert Wind Peacock Green Midnight Torch Red |
|
S40
SE (only option): (N/A on 1.9T) |
Titanium Grey | |
Interior Colors: | ||
Cloth (N/A for S40 SE): | Off
Black Taupe |
|
Leather (N/A for S40 SE): | Off
Black Taupe/Light Taupe |
|
Leather/cloth sport seats (SE only): | Off
Black Taupe/Lt. Taupe |
|
PRICES & OPTIONS | ||
TOP |
|
2001 Volvo S40 - V40 Series
Specifications, features and equipment shown in this catalog are based
upon the latest information available at the time of publication. Volvo
Cars of North America, Inc. and Volvo Canada Ltd. reserve the right to
make changes at any time, without notice, to colors, specifications,
accessories, materials and models. For additional information, please
contact your authorized Volvo Retailer.
