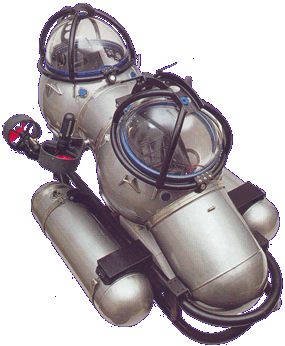

Vehicle Specifications: Length: 10 ft. (3.05 m) Beam: 5.3 ft. (1.6 m) Height: 5 ft. (1.5 m) Weight in Air: 2 tons Operating Depth: 300 ft. (91 m) Payload: 250 lbs (114 kg) Life Support: 160 man hours Max Speed: 3 knots Crew: 1 pilot, 1 observer |
Pressure Hull: 2 x 36 inch sphere attached to 24 inch dia. by 24 inch long cylinder. Manufactured of A516 grade 70 steel with 316 stainless steel hatch rings. Optional aluminum alloy, or titanium hull. |
![]() |
I got this from http://www.nuytco.com/dualdeepworker_action.html |
Submarine |
