GAZ-3302 (s. 20.07.1994) - a basic representative of popular family of small RWD trucks. Semi-hood design. 2-door cab has 3 seats. Framework. Payload: 3,307 lbs. Suspension: dependent, with leaf springs, front - beam axle, rear - solid axle. Engine: ZMZ-4061.10 type, dohc 16 valve, gasoline (carburetor), 4 cylinders in line, displacement 2,286 cc (bore 3.62", stroke 3.39"), CR 6.7:1. Power: 100 hp @ 4,500 rpm. Gearbox: 5-speed. Top speed: 68 mph, acceleration 0 to 62 mph: 17 s. Brakes: front - disks, rear - drums, with hydraulic control. Measures: LxWxH = 17'11.4"x6'10.5"x6'11.5", wheel base 9'6.2". Track front/rear: 5'6.9"/5'1.4". Turning circle 36'. Cargo platform: 10'0.5"x6'5.1"x1'3.7". Loading height 3'3.4". Fuel tank: 1 or 2 by 15.6 gal. Fuel economy: 19.6 mpg (average). Price: $2,200-2,700. With isothermic box - $2,700 to 3,200.
GAZelle can be also bought with number of different motors:
ZMZ-4025.10: in line 4, gasoline, 2,445 cc, 90 hp (gas 76)
ZMZ-4026.10: in line 4, gasoline, 2,445 cc, 100 hp (gas 92), with CR 8.2:1
ZMZ-4062: in-line 4, gasoline, 2,286 cc, dohc 16 valve, 150 hp.
ZMZ-4063: in-line 4, gasoline, 2,286 cc, dohc 16 valve, 110 hp (gas
93), 133 ft.-lb. @ 3,000 rpm, with CR 8.2:1 Top speed 71 mph, acceleration 0 to 62 mph 14
s.
UMZ-4215.10: in-line 4, gasoline, 2,900 cc, 105 hp
GAZ-560 (5601): in-line 4, turbodiesel, direct fuel
injection, (with intercooler), 2,134 cc, power 100 (115) hp @ 4,300 rpm, torque 155 (166)
lb.-ft @ 2,200 (1,800) rpm. The truck of 2,998 lbs has top
speed of 121 mph, acceleration 0 to 62 mph 10.9 s, its fuel economy is 57.4 mpg at 56 mph
and 42 mpg at 75 mph. It meets the Euro 2 norm.
GAZ-561(5611) - in-line 5 variant of GAZ-560(5601): 126 (144) hp @ 4,300 rpm, 194 (236) ft.-lb. @ 2,200 (1,800) rpm.
IVECO diesel, turbodiesel.
Steyr M-14: diesel, 95 hp.
Toyota 3L: in-line 4, diesel, 2,779 cc (bore 3.78", stroke 3.78"), CR 22.2:1,
power 91 hp @ 4,000 rpm, torque 136 ft.-lb. @2,400 rpm.
Peugeot XD-3TP: in-line 4, turbodiesel, 2,446 cc (bore 3.78", stroke 3.78"), CR
22.2:1, 12 valve, power 129 hp @ 4,300 rpm, torque 210 ft.-lb. @ 2,000 rpm. Fuel
economy: less than 23.5 mpg at 37 mph, 15 mpg at 62 mph, 20.1 mpg in city cycle.

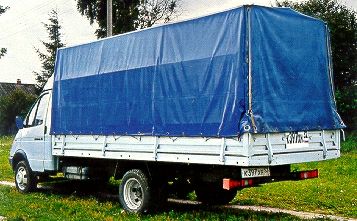

There is long-wheel-base variant. Wheel base 11'5.8". Length 21'9.4". It has stabilizer in rear suspension. Additional price: $1,070.
GAZ-33021 has cargo box of 388.5 cu.-ft. Price with ZMZ-406.3 engine $3,200-3,500. With isothermic box - $3,700-4,200.
GAZ-33022 is 33021 model with double cab (7 seats, 4 doors). Payload 2,976 lbs.

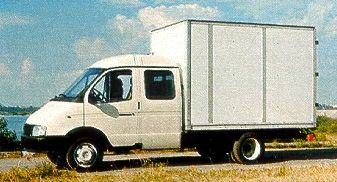

GAZ-33023 Farmer (s. 18.08.1995) is 3302 model with king size cab (6 seats, 2 doors). Payload 2,205 lbs.
There is long-wheel-base variant. Wheel base 11'5.8". Length 21'9.4". It has stabilizer in rear suspension. Additional price: $1,100.
GAZ-33027 (s. 29.06 1995) is a 4x4 variant of 3302. Drive: full time 4WD, blocking transaxle differential. Payload 2,866 lbs. Engine: ZMZ-4063.10. Gearbox: 5x2 speed. Top speed 68 mph. Height 7'2.3". Fuel economy 18.8 mpg at 37 mph. Tyres: 195R16.
GAZ-330273 has double cab (shown on picture).
GAZ-330279 Tandem (s. 11.03.1996) is 4WD pick-up based on GAZ-3302 platform. Cab: king size (6 seats, 2 doors). It also has windlass, single-tyred rear wheels. Payload: 1,764 lbs. Other data see GAZ-33027.
GAZ-33029 has IVECO diesel.
