VAZ-2110 [data for 2110-011 is in [] brackets] - the compact size car, replacement for VAZ-2106. It's 5 seats 4 doors frontdrive sedan. Suspension: front - independent (MacPherson type), rear - independent (torsion-beam axle, coil springs). Motor: gasoline (carburetor), ohc, 4 cylinders in line, displacement 1,499 cc (bore 3.23", stroke 2.8"), compression ratio 9.9:1. Power 69 [74] hp @ 5,600 rpm, torque 83 ft.-lb. @3,400 rpm. 5 gears, max. speed 103 [101] mph, acceleration 0 to 62 mph - 15 s. Brakes: front - disks, rear - drums, with hydraulic control. Measures: LxWxH=13'11.9"x5'6.1"x4'7.9", wheel base 8'2.1". Turn circle: 34'. Track front/rear: 4'7.1"/4'5.9". Trunk space is 17 cu. ft. Curb weight: 2,205 lbs. Tyres: 175/70R13S. Fuel tank: 11.4 gal. Fuel economy: 33.1 [26.4] mpg (average). Price with 74 hp motor: $5,100.
There are following modifications of VAZ-2110: VAZ-21102, VAZ-21103, VAZ-21106, VAZ-21107, hand-made long-wheel base cars VAZ-21108 and VAZ-21109; plus sport versions with Rotary engine, VAZ-21103 TMS 120 and VAZ-21103 sport. And new 2-door Coupe. Their differences are given below.
VAZ-21102 has gasoline engine with single-point fuel injection (VAZ-2111 type), ohc, 4 cylinders in line, displacement 1,499 cc (bore 3.23", stroke 2.8"), compression ratio 9.8:1. Power 79 hp. Max. speed 104 mph, fuel economy: 26.4 mpg (average). Price: $5,500.
VAZ-21103 has gasoline engine (multi-point fuel injection), dohc 16, 4 cylinders in line, displacement 1,499 cc (bore 3.23", stroke 2.8"). Power 94 hp @ 5,600 rpm, torque 96 ft.-lb. @ 3,600 rpm. Top speed: 115 mph, acceleration 0 to 62 mph: 12.4 s. Tyres: 175/65R14. Fuel economy: 28.3 mpg (city cycle), 33.1 mpg (at 75 mph). Price $6,000.

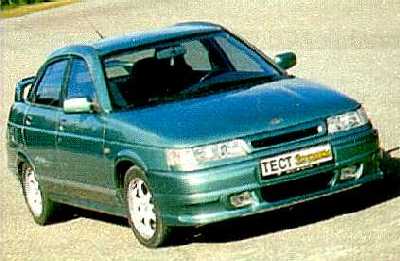

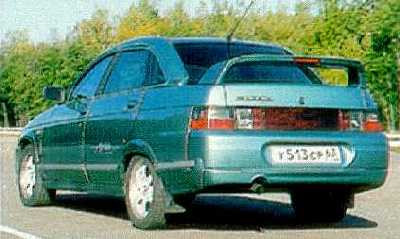

| Tuning luxury small-series version - VAZ-21103 TMS 120 by Technocom & Torgmashmotorsport. Motor: VAZ-21124 (1,600 cc, dohc 16 valve, multi-point fuel injection), with new camshafts, fuel injection program. Power: 120 hp. |
|
|
Top speed: 113 mph. Acceleration 0 to 62 mph: 10.8 s. Stopping distance: 153.5'. There are plastic pars outside to develope aerodynamic quality. Interior is also re-modelled. Chassis is improved. Production: 50 to 150 copies a month. Price: $10,000. |

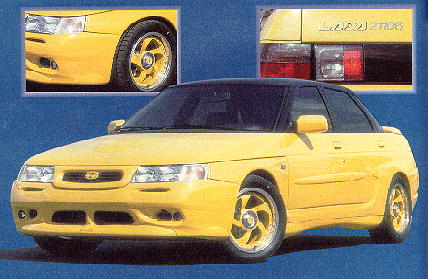

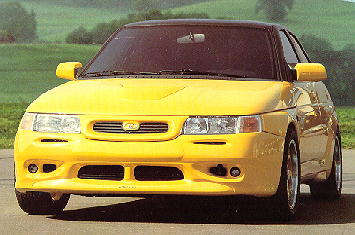

A new model VAZ-21106. Joint project of AutoVAZ and Mega Lada. There's 2.0-16V GTi "Yellow Shark" edition shown on picture. Different 2000 model data is in brackets.
Curb weight: 2,210 lbs. Motor: Opel C20XE, gasoline, multi-point fuel injection, 4 inline, dohc16, displacement 1,998cc (bore/stroke =3.39/3.39"), CR 10.8:1, power 150hp @ 6,000 rpm, torque 140 [145] ft.-lb. @ 3,500 [4,800] rpm. Brakes: front - VAZ-2112 (vent disks), rear - drums, with hydraulic control. Acceleration 0 to 62 mph - 10 [7.9] s.Top speed 127.4 [132] mph. Fuel economy: 39.2 mpg at 56 mph, 30.2 mpg at 75 mph. Price: $12,800.
|
|
 |
 |

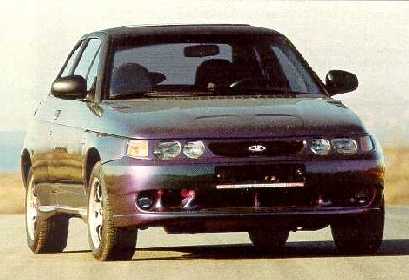

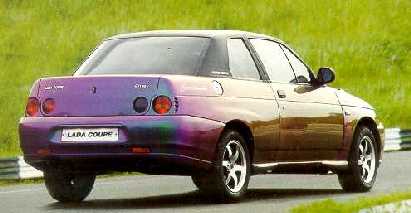

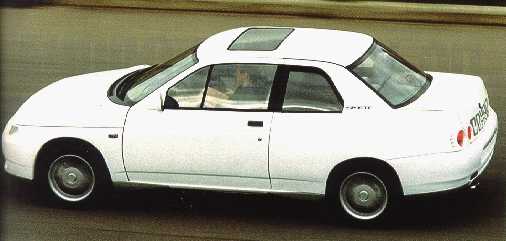

In the end of 1999 2-door coupe by tuning companies appeared. Now they are going to assemble it. It has opening rear side windows with electrical drive. Soon they are going to improve suspension to adjust more "sport" behavior, to replace rear brakes to disks, to make door windows solid, not splitted. And in the mid of 2001 new Opel EcoTec engine and gearbox will appear. Estimated price: from $17,250.
 |
 |
VAZ-21107 (formerly 21106-27). Rally car based on VAZ-21106, tuning by MSD (UK).
Suspension: adjustable, front - independent (MacPherson struts, gas abs. shocks Proflex), rear - independent (A-arms, coil springs, gas abs. shocks Proflex). Motor: Opel made, gasoline (multi-point injection), dohc16, 4 cylinders in line, displacement 1,998 cc (bore 3.39", stroke 3.39"), compression ratio increased. Power 223 (280 in aim) hp @ 7,000 rpm, torque 174 ft.-lb.@6,000 rpm (end of 1996). 6 gears (Xtrac gearbox). Brakes: AP made, disks, with hydraulic control. Curb weight 2,050 lbs (end of 1996). Tyres: R15.
VAZ-21108 Premier
is a long-wheel base (6.9" longer) variant of VAZ-21103.
The differences are: engine - VAZ-21124 (1,600 cc, dohc 16 valve, MPI), curb weight 2,425
lbs, turn circle 36', top speed 106 mph, acceleration 0 to 62 mph: 13.5 s, fuel economy:
39.9 mpg at 56 mph, 32.7 mpg at 75 mph, 25.8 mpg in city cycle. Price: $8,200.
There's also armoured version VAZ-211082 Premier. Price: $20,900.
|
|
Limousine VAZ-21109 Consul has 11.8" longer wheel base.

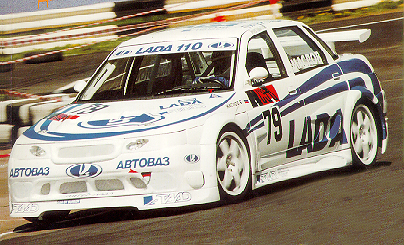

Sport (Super Tourism) variant with Rotary engine.
Sporty VAZ-21103 for circuit racing.
Engine: boosted VAZ-2110: 4 in-line, displacement 1,599 cc (bore/stroke
3.25/2.94"), with dry oil carter, stronged crankshaft, forged aluminium pistons,
lightened wly-fheel, twin injectors, special inlet manifold, management system MOTEC.
Sachs clutch. Gearbox: 6-speed manual. Suspension: independent with stabilizers (front -
adjustable), gas shock absorbers and coil springs Eibach. Brakes: AP Racing, front -
13" ventilated disks and 4-piston staples, rear - 10.4" disks and 2-piston
staples, adjustable front/rear braking ratio. Power steering ZF. Wheels: light alloy,
tyres - Michelin 205R17.
