Receptor simples com o CI 74HC4066

Simple receiver with the 74HC4066 IC

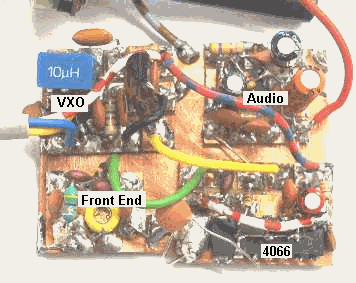

Base board with the modules built and soldered getting a mechanic fixation and a common and efficient ground too.

In the VXO above the 10µH blue Sontag inductor it is the 7.15MHz ceramic resonator.

In the front end (band pass filter) in yellow is the ceramic trimmer, in green (similar to a resistor) the 4.7µH inductor (yellow, purple and silver)

The 74HC4066 is mounted with legs up.

The audio amplifier uses the LM1458, which is also mounted legs up.

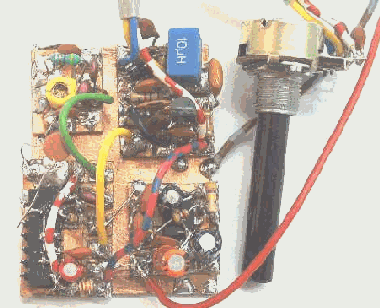

Another photo of the rig with the frequency tuning potentiometer.

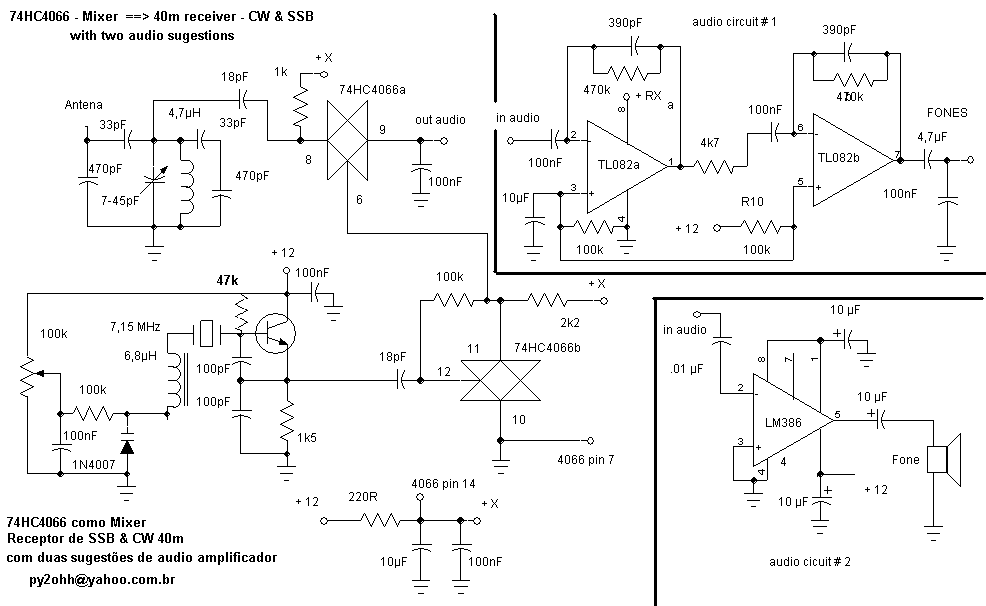

The circuit

The receiver uses half of the 74HC4066, using a bidirectional switch (pins 10, 11 and 12) as a buffer and the other switch (pins 6, 8 and 9) as a mixer.

The 4066 works as an analogic bidirectional switch, that is, a signal goes from one side to the other (in both directions) pending on the switch control signal.

So a 7001KHz input signal suffers an interruption by the VXO signal say 7000KHz generating the 1KHz audio signal in the output.

In the output we will also have the 7001 signal and multiples and also the addition 7000+7001=14001...

This signals (RF) are removed by the 100nF (0.1µF) low pass capacitor connected to ground in the mixer output.

The VXO and the audio amplifier are our old acquaintances.

The audio amplifier circuit #2 shows some signifying changes from conventional circuits, because this way it is possible to get more than the 200 gain suggested by the manufacturer. In order to lower the power consumption we can put a 560 Ohms in the power line and raise the capacitor in this line (pin 6 LM386) to 220µF.

The gain is enough to drive a small loudspeaker.





The next prototype with the 74HC4066 uses an additional bidirectional switch : as oscillator.





Placa base com os módulos montados e soldados obtendo uma fixação mecânica juntamente com um terra eficiente e comum.

No VXO acima do indutor Sontag de 10µH (azul) aparece o ressonador cerâmico de 7,15MHz.

No front end (filtro passa faixa) em amarelo o trimmer cerâmico, em verde (parecido com um resistor) o indutor de 4,7µH (amarelo, roxo e prata)

O 74HC4066 esta montado de pernas para cima.

O amplificador de áudio emprega o LM1458 e também esta montado de pernas para cima.

Outra foto da montagem com o potenciômetro para ajuste de freqüência.

O circuito

O receptor utiliza metade do 74HC4066, sendo uma porta bidirecional (pinos 10,11 e 12) como buffer e a outra porta (pinos 6,8 e 9) como mixer.

O 4066 funciona como porta analógica bidirecional, ou seja um sinal passa de uma porta para outra (ambos os sentidos) dependendo do sinal da porta - gatilho.

Assim um sinal de 7001khz na entrada sofre uma interrupção pelo sinal do VXO digamos de 7000kHz gerando o sinal de áudio de 1KHz na saída.

Na saída teremos também o sinal de 7001 e múltiplos e também a soma 7000+7001=14001....

Estes sinais (RF) são eliminados pelo capacitor de passagem de 100nF na saída do mixer ligado a terra.

O VXO e o amplificador de áudio são nossos velhos conhecidos

O circuito #2 de amplificador de áudio incorpora algumas mudanças significativas aos circuitos convencionais, pois desta forma é possível arrancar muito mais que o ganho de 200 sugerido pelo fabricante. Ainda para diminuir o consumo podemos colocar um resistor de 560 Ohms na linha de alimentação e aumentar o valor do capacitor nesta linha (pino 6 do LM386) para 220µF.

O ganho é suficiente para acionar um pequeno alto falante.





A próxima montagem com o 74HC4066 utiliza mais uma porta bidirecional : como oscilador.
