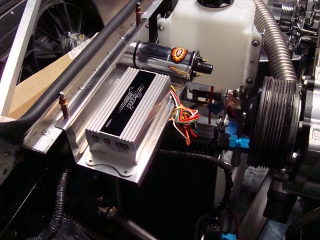

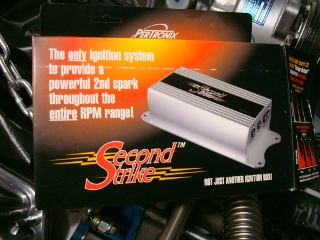

The above show Pertronix "Second Strike" CD ignition box and
coil on fabricated and polished aluminum (0.060) mount. Main
ignition w/ coil works from module in distributor. CD box
gives second spark, at all rpm, and at selectable # of crank
degrees after first spark.

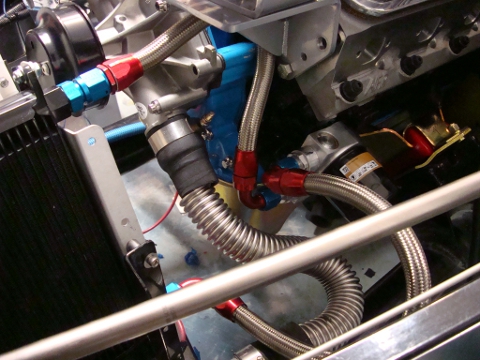

Picture above shows setup for oil cooler and oil hoses.

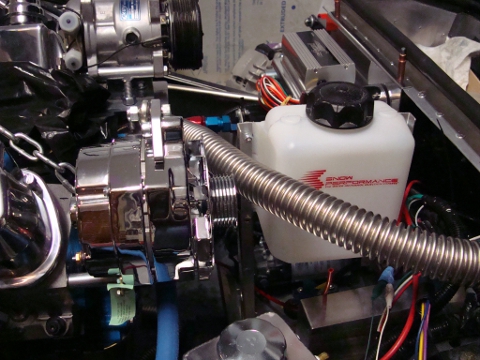

Above shows alternator (1 wire GM type) and AC compressor.
Radiator overflow/expansion tank (Canton) in bottom of pic.
White plastic tank is for alcohol injection; high pressure
pump is just visible under tank (behind red hose).
Lots of little details needed to finish car. ~George
|
