The below images show the finished product.
Select the image (mouse click) and get a
bigger image to see more detail. When
finished viewing,select the browser back
button to continue.

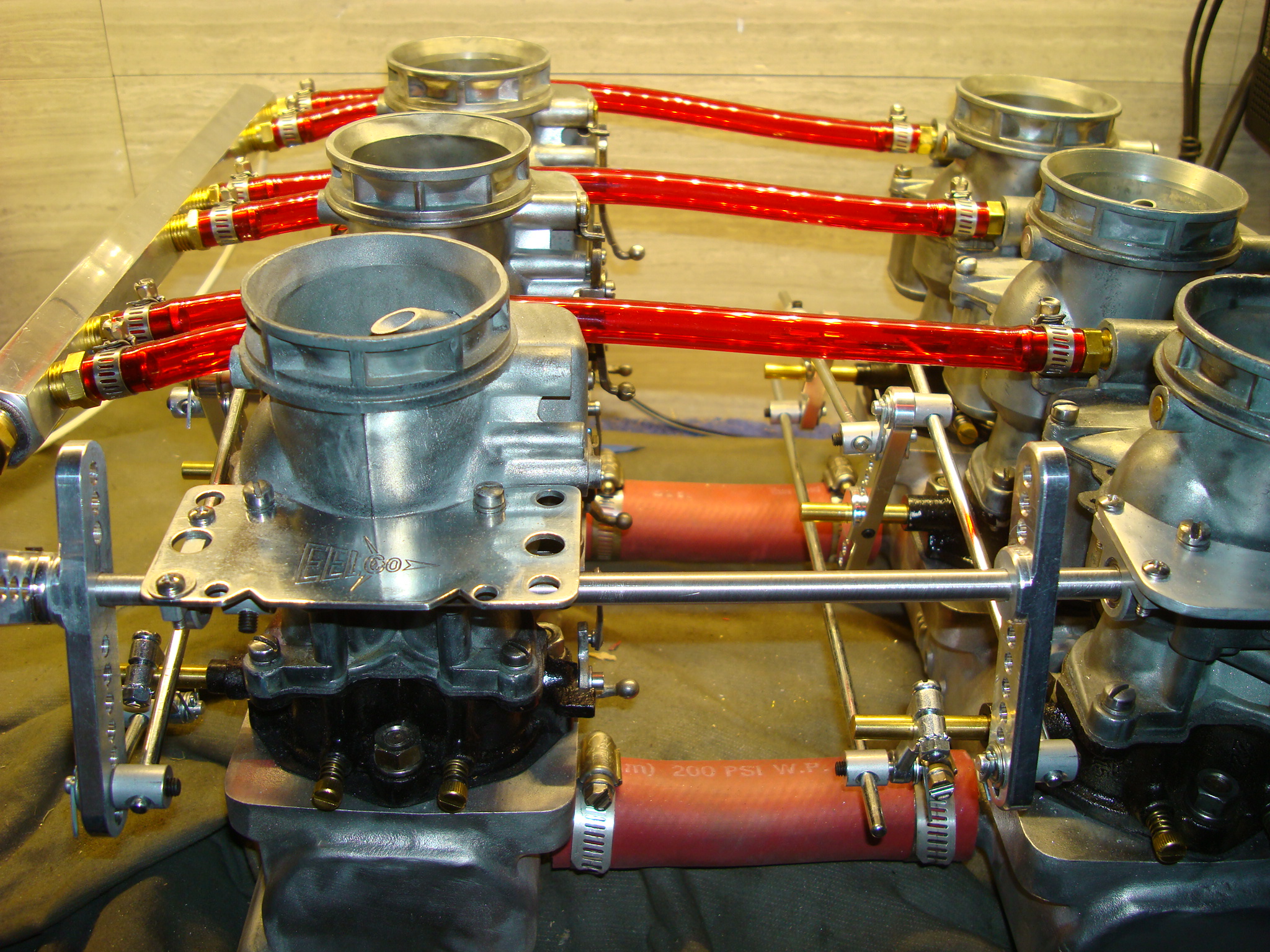

Backend view of all six carburetors.

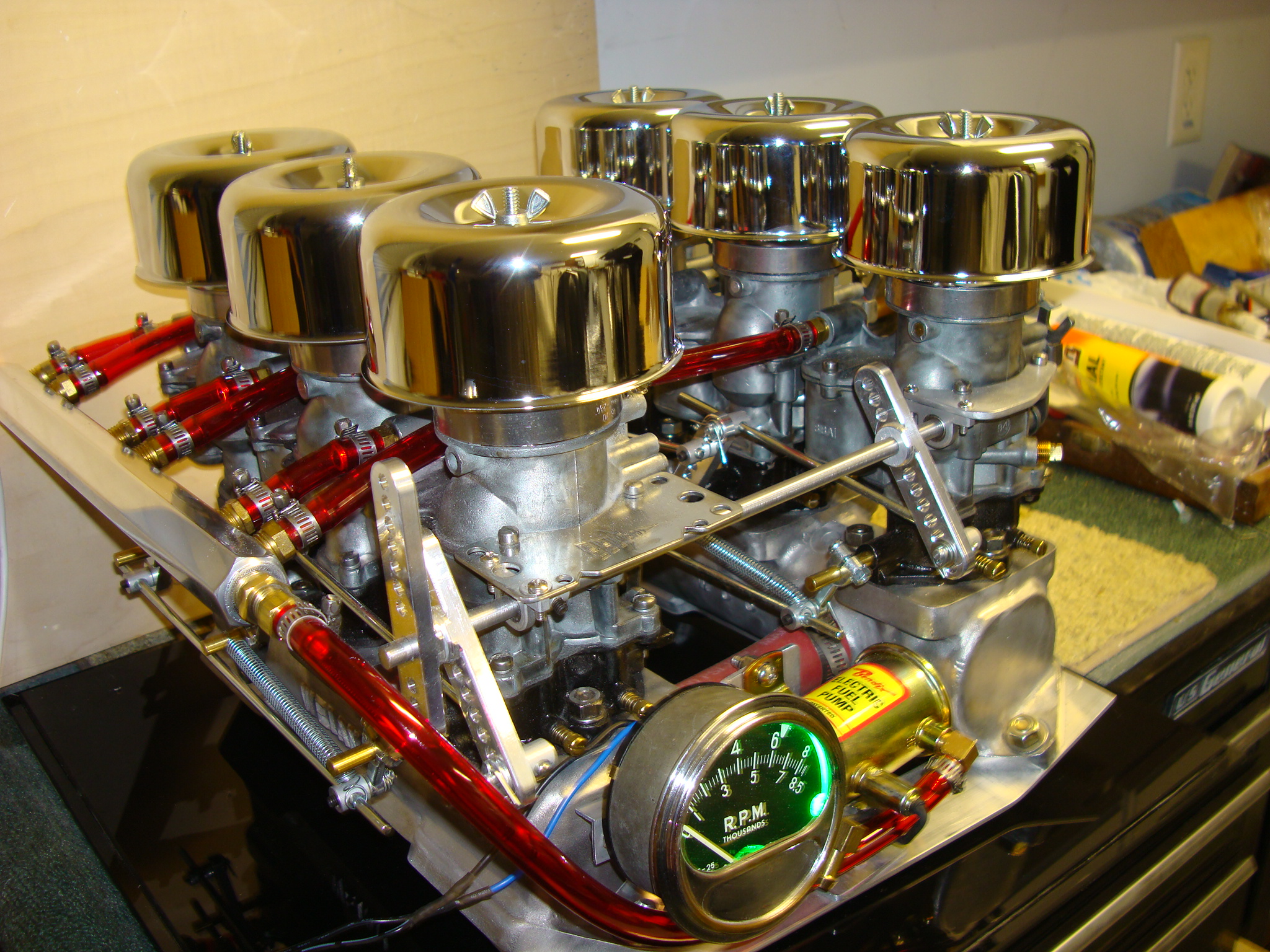

Angle view showing period air cleaners.

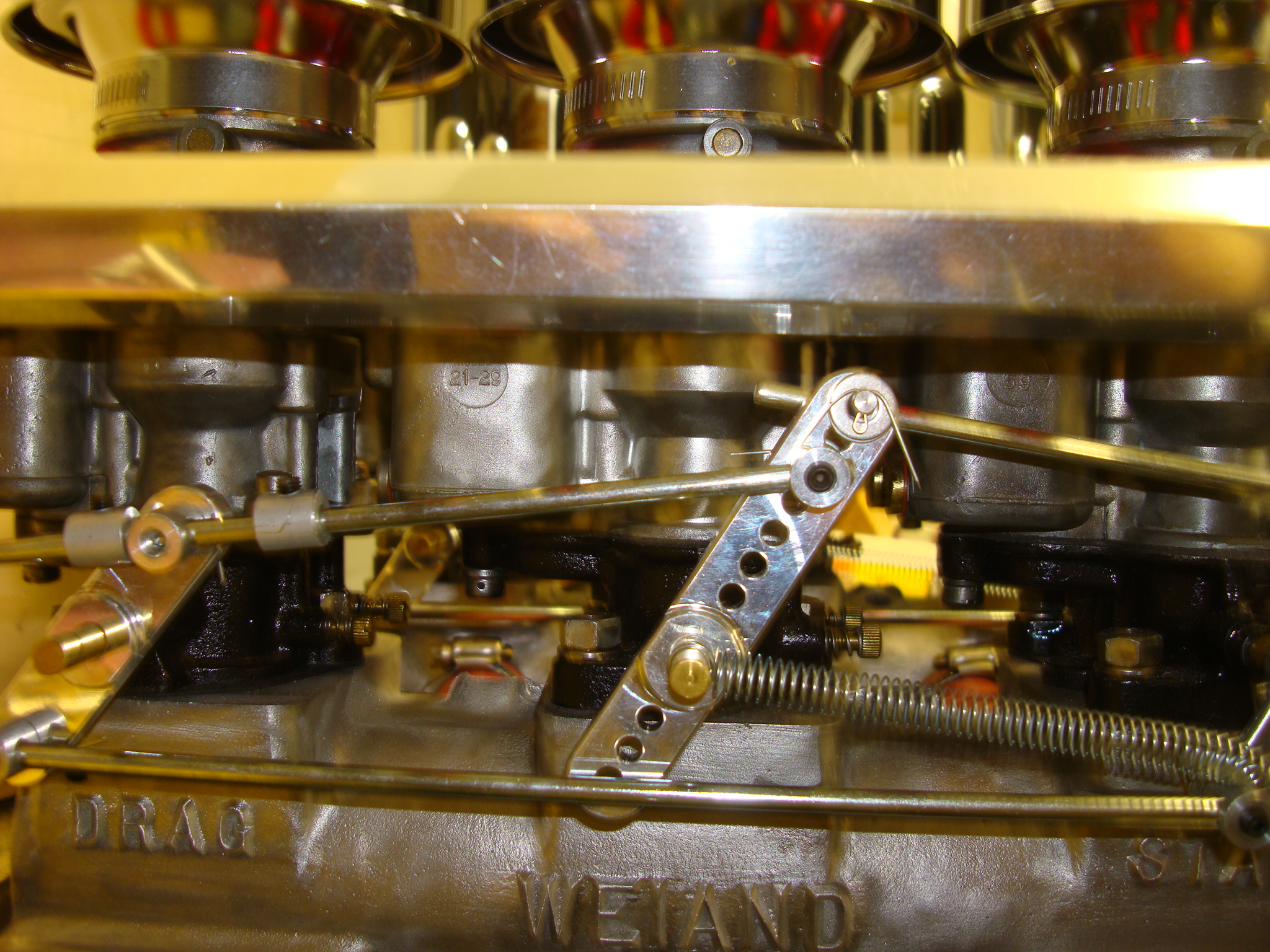

Closeup view of the log and Eelco linkage. The linkage I was able to reuse
after polishing the bracket.

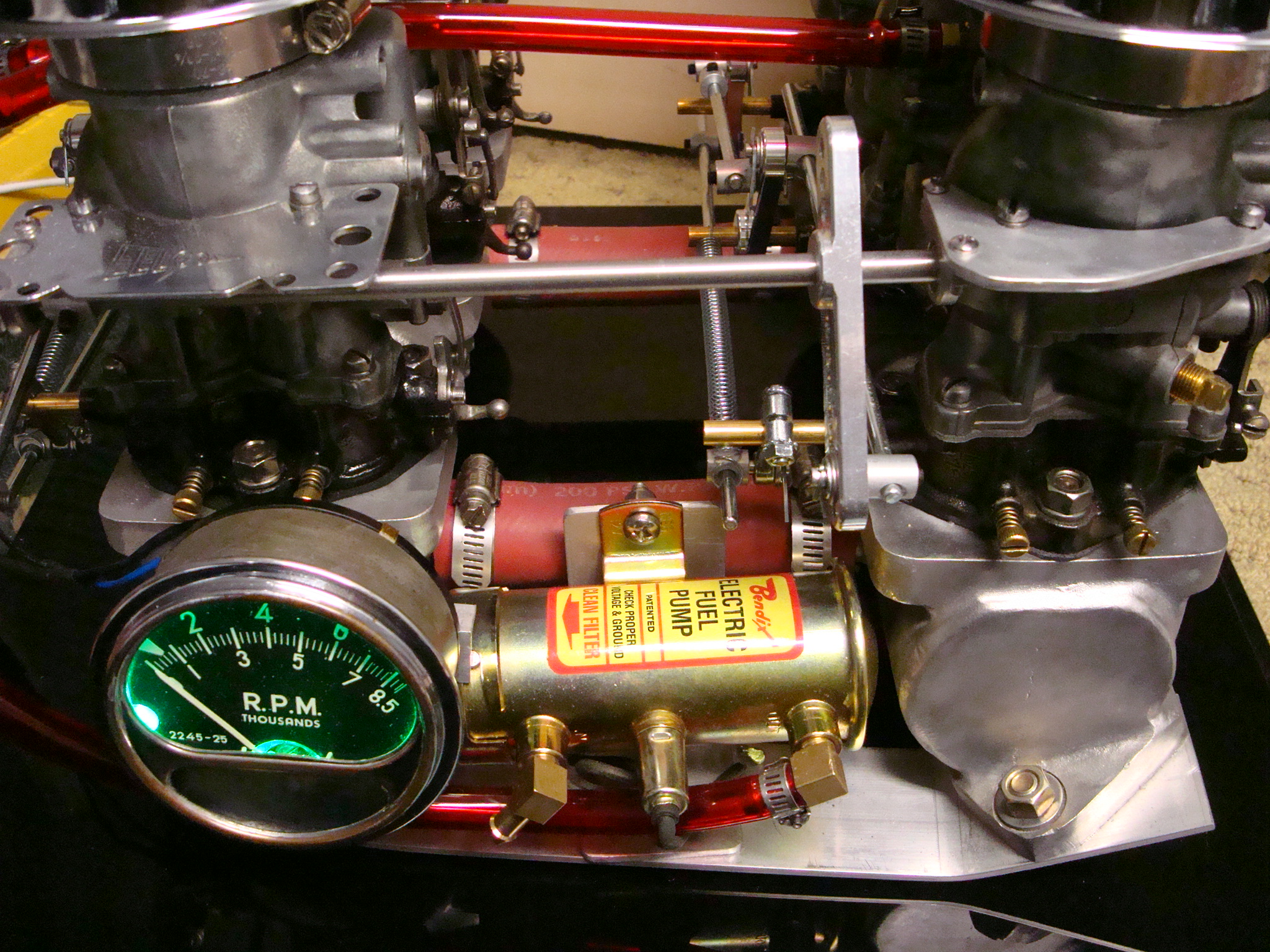

Closeup view of the Bendix electric fuel pump and lit Sun tachometer.
This is the exact tach that was on my HS car with this same carb setup.
I am really glad I saved it. More later ... ~George
|
