The manifold had a smooth finish instead of the more
common sand cast finish. The aluminum color was dark
and with deep stains and 50 yrs of Al oxide corrosion
into the metal, as in the above picture. So some
cleaning was in order.
First tried "Oven-Off" cleaner -a reported manifold
cleaning method- no effect;
far too much tarnish. Next, as the below pictures show,
I bead blasted with glass
bead media which leaves the metal surface clean but
with slightly rough finish,
w/grey-white Al color. The bead blast takes maybe .001+
off of the metal surface
but really cleans the metal. Air pressure was kept low
to prevent removing too
much metal. I then polished with 1.5'' brass wire brush
& Dremel tool. Then
polished w/ 5'' cloth wheel, but this step could have
been skipped. I don't
think any chemical cleaners could have cleaned these
parts; bead blasting took under 10 min and
was very effective.

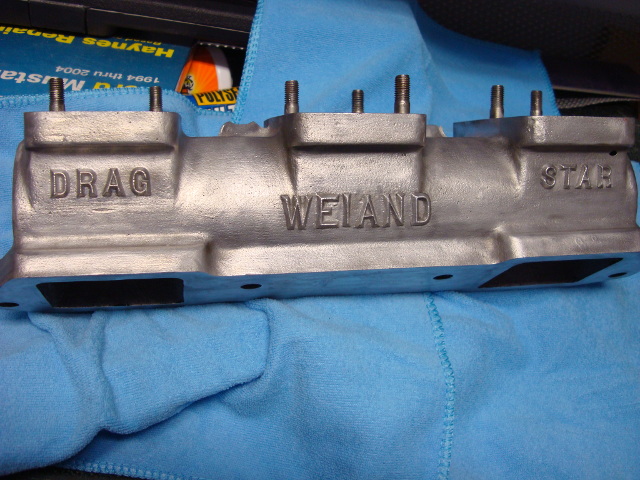

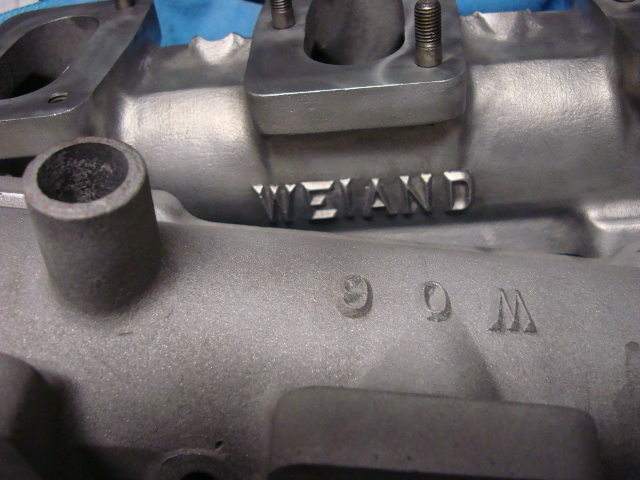

The below picture shows one manifold after bead blasting
for about 10 minutes
with 40-70 grit Eastwood Glass bead media that quickly
removed 50+ years of dirt
& tarnish; Aluminum was dirty grey color before, as in
the first picture above.

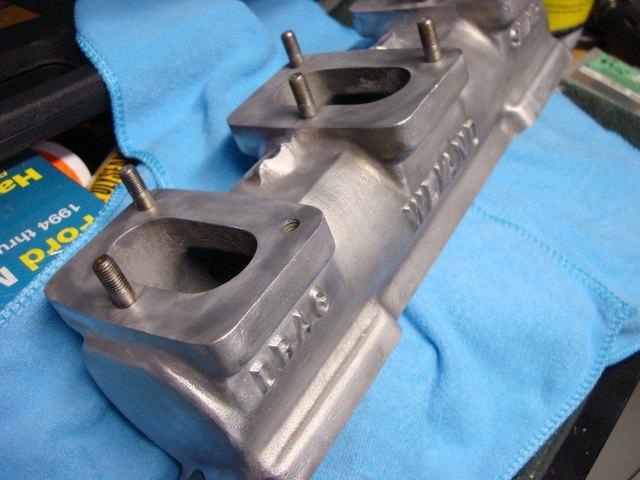

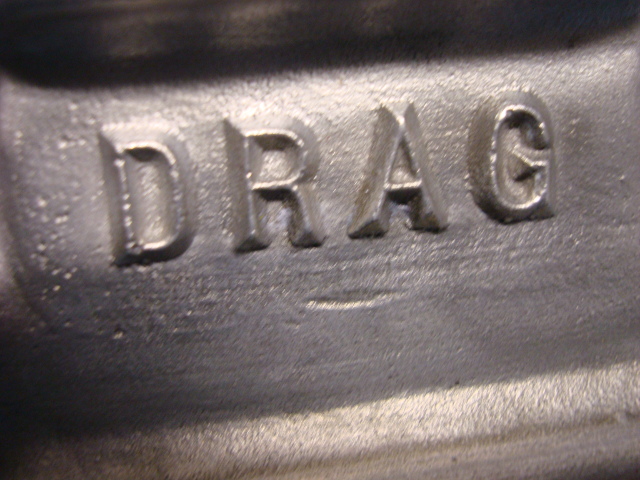

Result after polishing a bead blasted manifold with 1.5''
brass wire brush on
Dremel tool. Carbs were cleaned the same way.
More Later ... ~George
|
