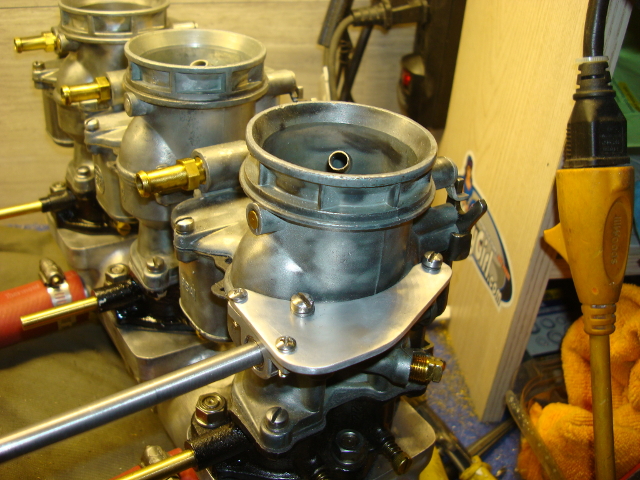

The below image shows 3x2 progressive linkage
(duplicates my original) and newly fabricated
ball bearing cross shaft� (do not remember my
original setup). The ball bearing shaft mounts
and shaft are from McMaster Carr (highly
recommended source for machine hardware, hoses,
etc. - the cross connection manifold hoses are
from them - good color match to original hoses.)

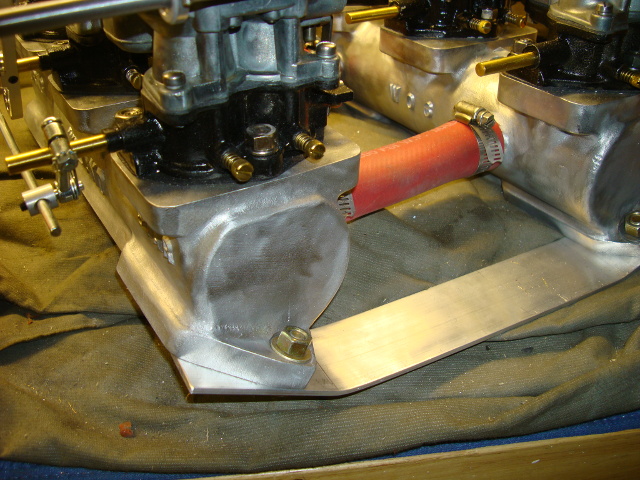

The below image shows an Aluminum plate
(2''x 1/8 ) used to align manifolds, as
if bolted on heads.
The below image shows 3x2 progressive
carb linkage by Speedway Motors (a high
quality kit, still available, and very
much like my original)

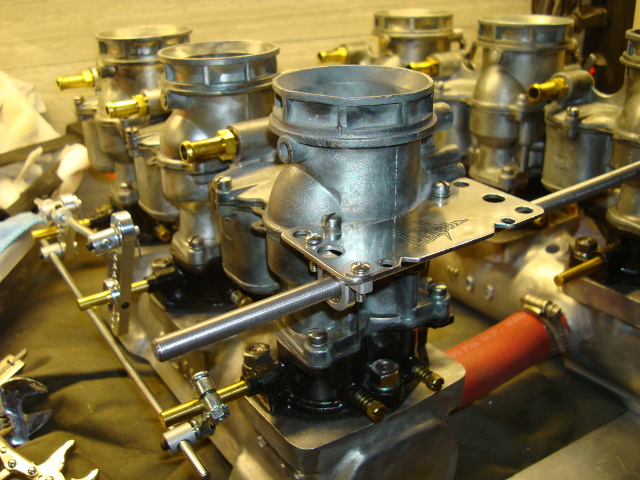

Two 3x2 progressive linkage kits (Speedway
Motors) were used to make 6x2 linkage by
adding a cross shaft (like used on the
below manifold setup). The aluminum bracket
supporting the shaft bearing mount was
hand fabricated.
More Later ... ~George
|
