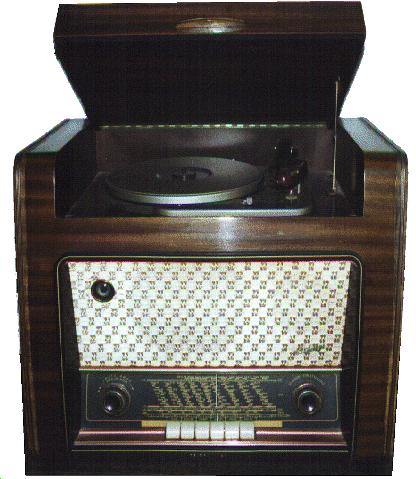

Telefunken Adagio Festival

• Produced: Germany in 1953.
• Obtained: bought at a flea market for 250FF (~$50) in 1992.
• Features:
  • 2 speakers: 1 bass, 1 tweeter.
  • phono player on top.
  • rotating ferrite antenna built-in.
  • independent AM and FM tuning.
  • tone control (treble).
• Bands:
  • FM 87.5 to 100 Mhz
  • SW 5 to 18 Mhz (16 to 49 m)
  • MW 530 to 1650 Khz (180 to 550 m)
  • LW 150 to 300 Khz (1000 to 2000 m)
• Condition:
  • Works but low sensitivity on FM whith a lot of hum.
  • Cabinet needs some refurbishing.

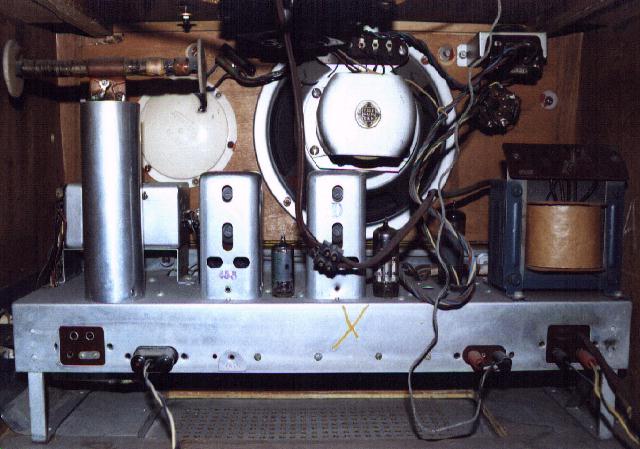

• Tubes:
  • ECC85/6AQ8 (FM osc+mix)
  • ECH81/6AJ8 (AM osc+mix/ FM 1st IF)
  • EF93/6BA6 (AM 1st IF/FM 2nd IF)
  • EABC80/6AK8 (AM/FM det+AF)
  • EL84/6BQ5 (output)
  • EZ80/6V4 (rectifier)
  • EM34/6CD7 (magic eye)
