IAT Sensor and Aftermarket Performance Chip

I recently purchased an aftermarket chip for my car from Next Level Performance. I decided to buy the Stage 1 G-Box since I've never heard of the company before, and it seemed no one else had either. For $40 they give you the chip, and all the connectors you need to splice the chip into the IAT (Intake Air Temperature sensor). Even though they did send me 5 male plugs and 3 female ones, I managed to find an extra plug laying around the garage.

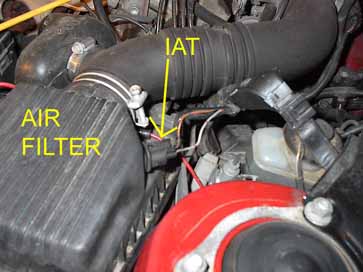

As you can see by the picture, installing it isn't very hard, as long as you know where to put it. Find your air filter first, and there is a plug behind it with wires coming out. Shown here:

You have 2 wires, a red with blue stripes and white with red stripes. Your "hot" color wires are usually the power. The same holds true here. The chip comes with a red and a black wire. Cut both wires and strip the ends. Crimp the plugs onto all ends of the wires and hook it up. Remember, the red wire to the red with blue stripes. And the black one to the white one.

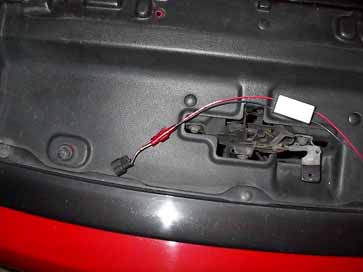

Here is a pic of what it should look like:
