HAMMOND Photos!
![HAMMOND X-77](images/myx77.jpg) |

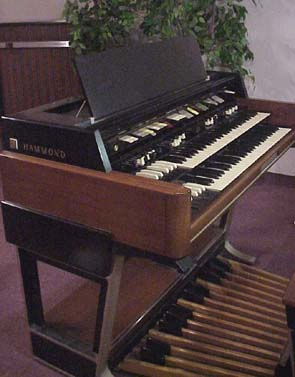

Finally! A photo of my X-77!
One of my two X-77L Leslie cabinets is in the background. |
![X-77P Leslie](images/x77psmall.jpg) |

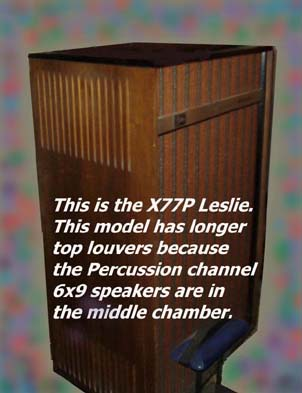

At the right is the X-77L Leslie, while
the left is the newer "P" version of the X-77
Leslie which was standard with the "GT" version of the X-77. |
![X-77L Leslie](images/x77l.html) |

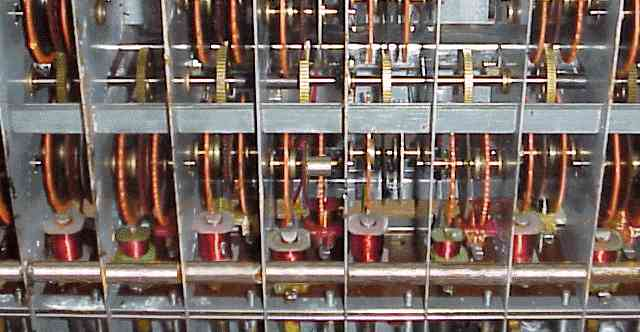

This is a closeup of the underside of a HAMMOND Tone
Wheel Generator. Note the orange paint on the tonewheels to prevent
corrosion. The driving wheels are brass gears. The pickup coils are the
spools wound with the red-colored wire visible at the bottom.
![Closeup of the Novachord close-up](images/novaclose.jpg) |

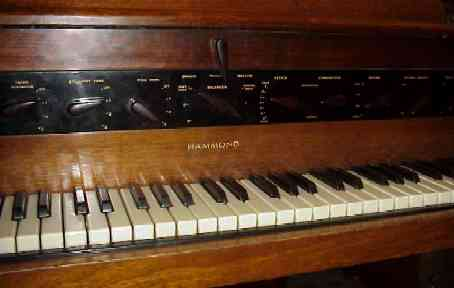

This is a closeup of
the rare HAMMOND Novachord, an analog synth manufactured between 1939 and
1942. There were only 1069 of them made. This design used 169 vacuum

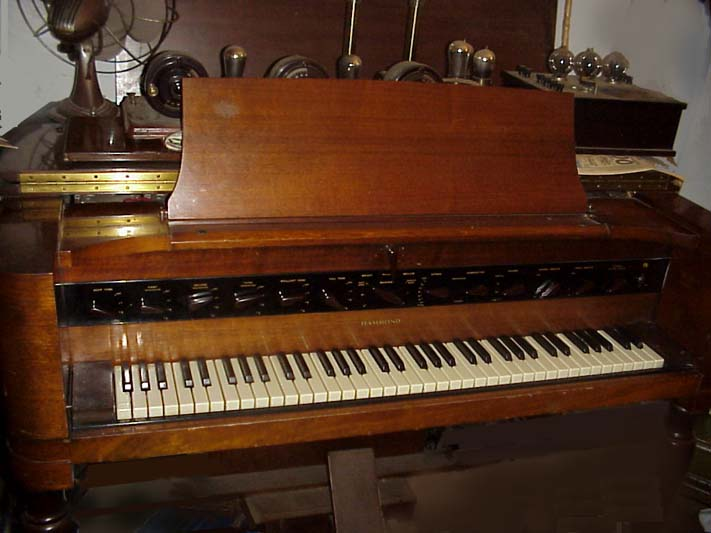

tubes! Here is the full view.
|
|
