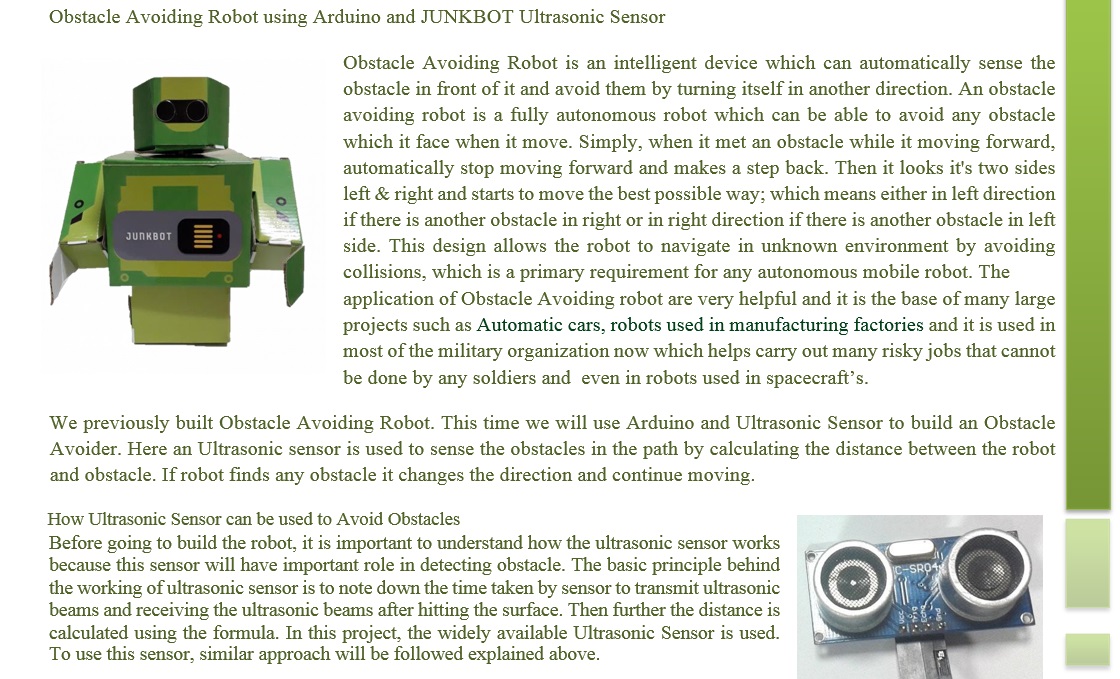

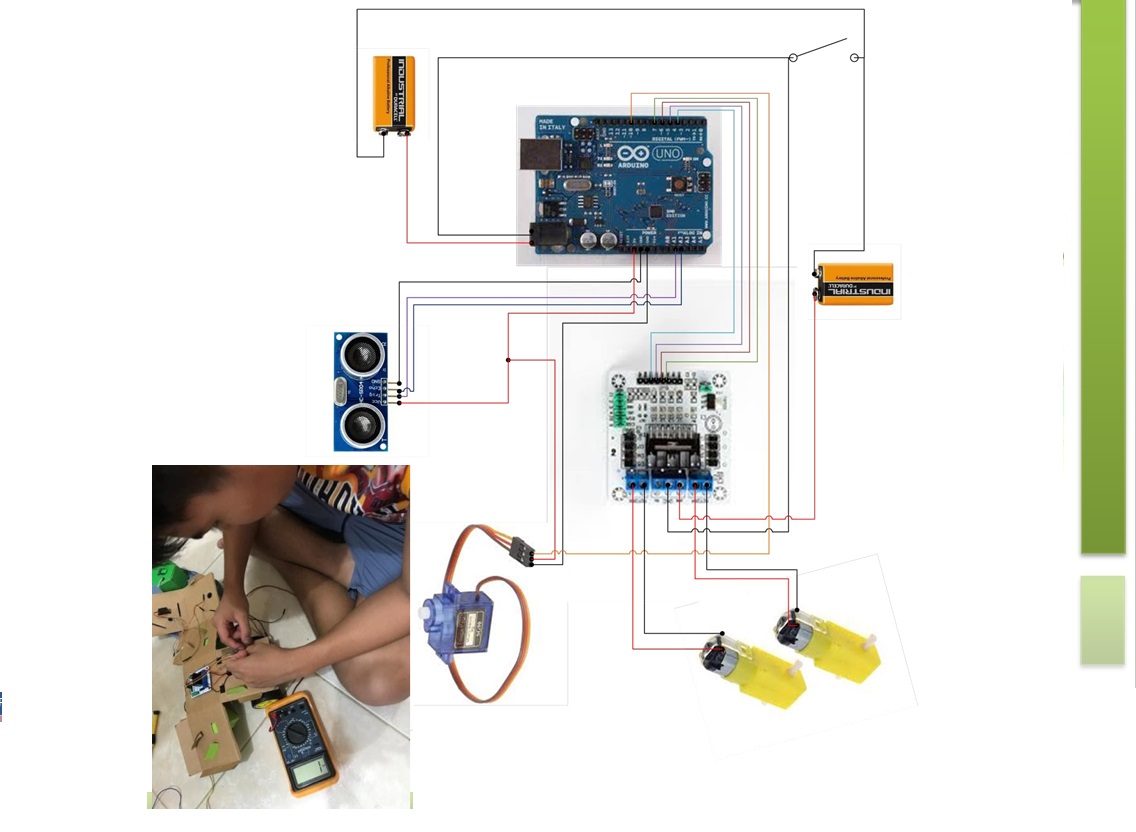

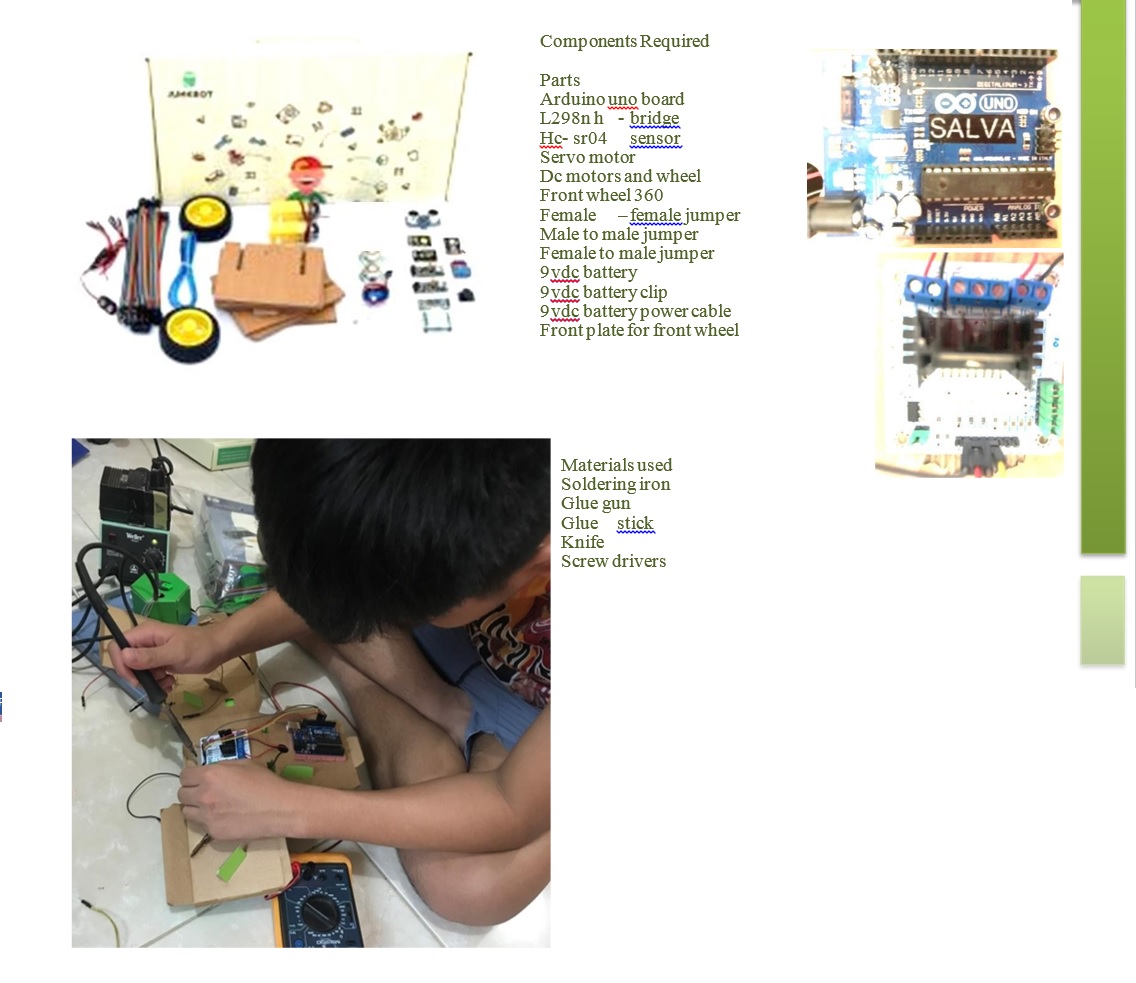

OBSTACLE AVOIDANCE ROBOT





#include <Servo.h>

#include <NewPing.h>



const int LeftMotorForward = 7;

const int LeftMotorBackward = 6;

const int RightMotorForward = 4;

const int RightMotorBackward = 5;





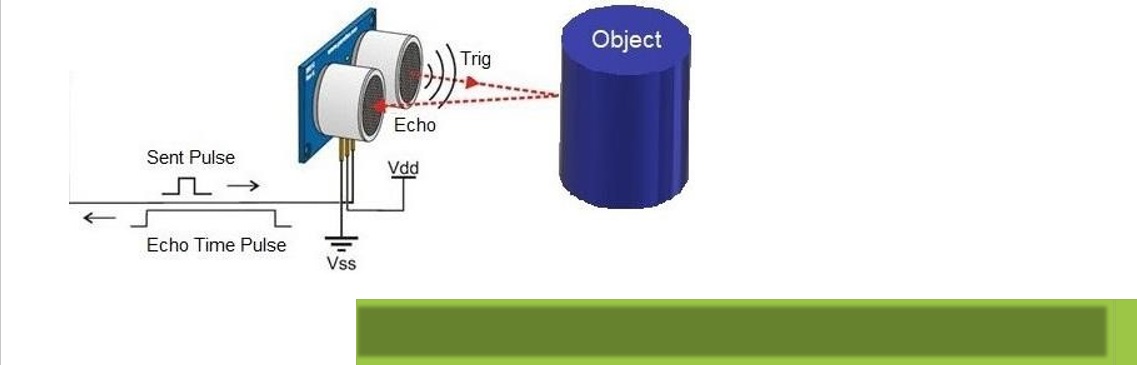

#define trig_pin A1

#define echo_pin A2



#define maximum_distance 200

boolean goesForward = false;

int distance = 100;



NewPing sonar(trig_pin, echo_pin, maximum_distance); //sensor function

Servo servo_motor;



void setup(){



  pinMode(RightMotorForward, OUTPUT);

  pinMode(LeftMotorForward, OUTPUT);

  pinMode(LeftMotorBackward, OUTPUT);

  pinMode(RightMotorBackward, OUTPUT);



  servo_motor.attach(10);



  servo_motor.write(115);

  delay(2000);

  distance = readPing();

  delay(100);

  distance = readPing();

  delay(100);

  distance = readPing();

  delay(100);

  distance = readPing();

  delay(100);

}



void loop(){



  int distanceRight = 0;

  int distanceLeft = 0;

  delay(50);



  if (distance <= 20){

    moveStop();

    delay(300);

    moveBackward();



    delay(400);

    moveStop();

    delay(300);



    distanceRight = lookRight();

    delay(300);

    distanceLeft = lookLeft();

    delay(300);



    if (distance >= distanceLeft){

      turnRight();

      moveStop();

    }

    else{

      turnLeft();

      moveStop();

    }

  }

  else{

    moveForward();

  }

    distance = readPing();

}



int lookRight(){

  servo_motor.write(50);

  delay(500);

  int distance = readPing();

  delay(100);

  servo_motor.write(115);

  return distance;

}



int lookLeft(){

  servo_motor.write(170);

  delay(500);

  int distance = readPing();

  delay(100);

  servo_motor.write(115);

  return distance;

  delay(100);

}



int readPing(){

  delay(70);

  int cm = sonar.ping_cm();

  if (cm==0){

    cm=250;

  }

  return cm;

}





void moveStop(){

  digitalWrite(RightMotorForward, LOW);

  digitalWrite(LeftMotorForward, LOW);

  digitalWrite(RightMotorBackward, LOW);

  digitalWrite(LeftMotorBackward, LOW);

}



void moveForward(){



  if(!goesForward){

    goesForward=true;



    digitalWrite(LeftMotorForward, HIGH);

    digitalWrite(RightMotorForward, HIGH);



    digitalWrite(LeftMotorBackward, LOW);

    digitalWrite(RightMotorBackward, LOW);

  }

}



void moveBackward(){



  goesForward=false;



  digitalWrite(LeftMotorBackward, HIGH);

  digitalWrite(RightMotorBackward, HIGH);



  digitalWrite(LeftMotorForward, LOW);

  digitalWrite(RightMotorForward, LOW);

}



void turnRight(){



  digitalWrite(LeftMotorForward, HIGH);

  digitalWrite(RightMotorBackward, HIGH);



  digitalWrite(LeftMotorBackward, LOW);

  digitalWrite(RightMotorForward, LOW);



  delay(500);



  digitalWrite(LeftMotorForward, HIGH);

  digitalWrite(RightMotorForward, HIGH);



  digitalWrite(LeftMotorBackward, LOW);

  digitalWrite(RightMotorBackward, LOW);

}



void turnLeft(){



  digitalWrite(LeftMotorBackward, HIGH);

  digitalWrite(RightMotorForward, HIGH);



  digitalWrite(LeftMotorForward, LOW);

  digitalWrite(RightMotorBackward, LOW);



  delay(500);



  digitalWrite(LeftMotorForward, HIGH);

  digitalWrite(RightMotorForward, HIGH);



  digitalWrite(LeftMotorBackward, LOW);

  digitalWrite(RightMotorBackward, LOW);

}
