3D Solid Modeling With SolidWorks
Plastic Injection Molding Parts

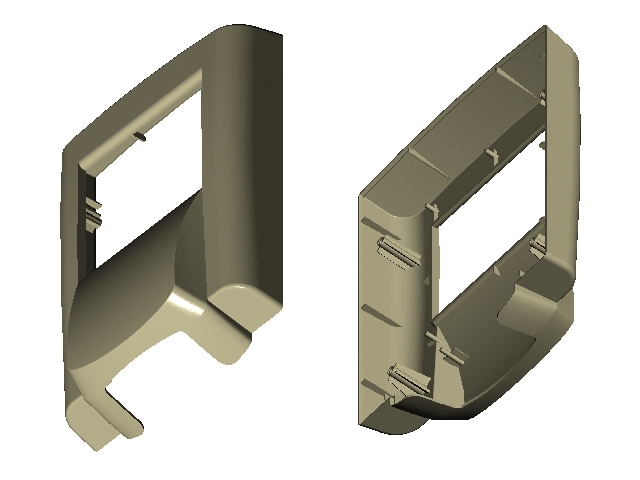

- Bezel > 3D View Size: 7" x 9.25" x 2.15"

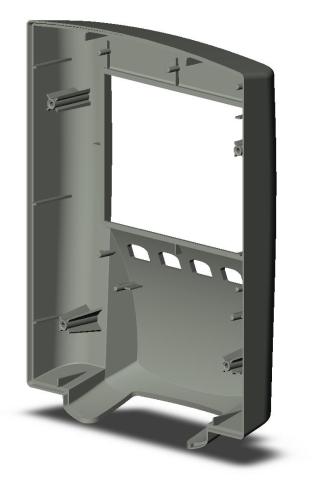

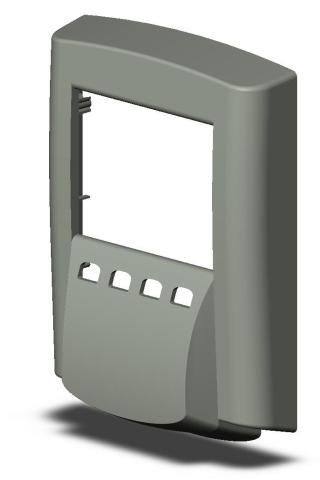

- Bezel with 4-cut-holes for Actuator
![](images/bezel_1.jpg)

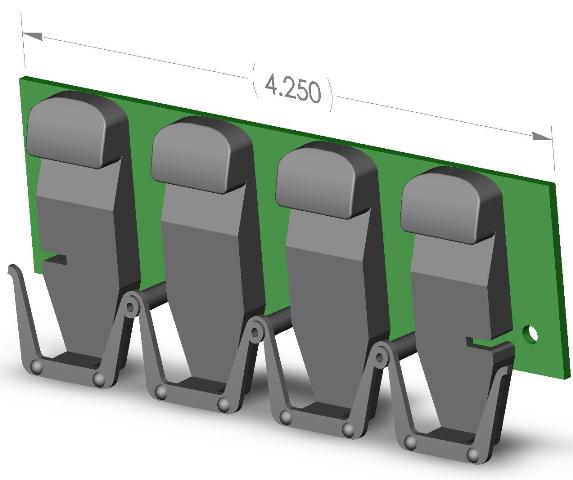

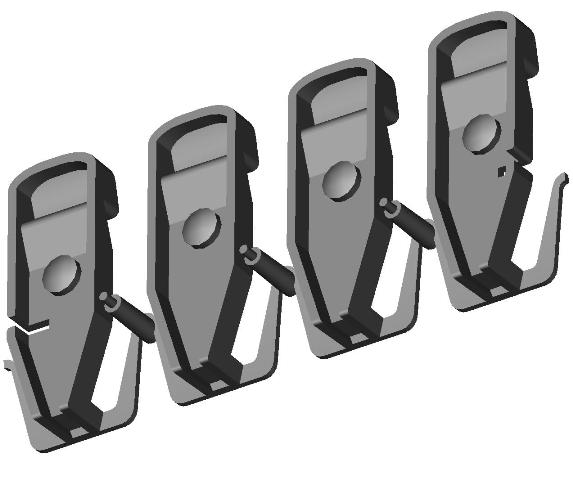

- Actuator > 3D View. Attached to a PCB, the actuator actuates switches that are surface-mounted to the PCB.

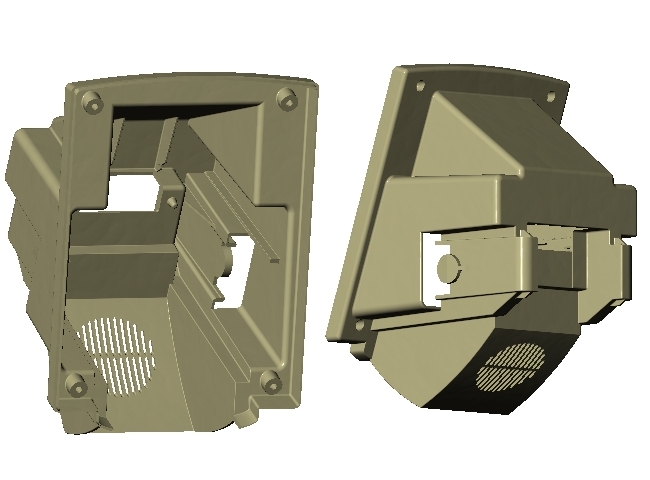

- Housing > 3D View

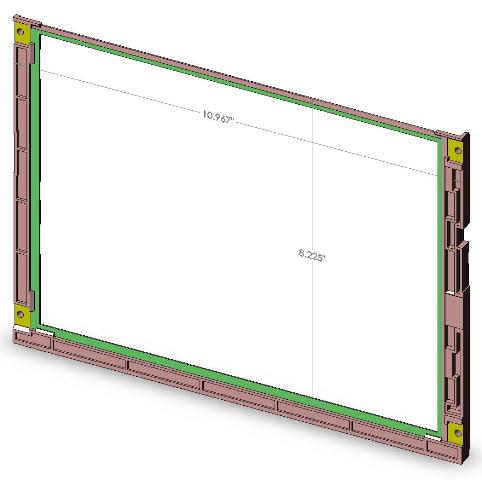

- 12" LCD Frame > 3D View
Pressure Forming Parts

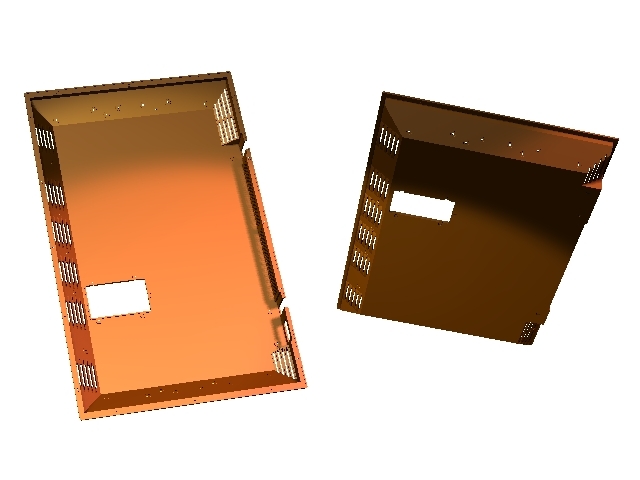

- Rear Cover of 42" Plasma Display > 3D View
CNC Machined Parts
Sheet Metal Parts

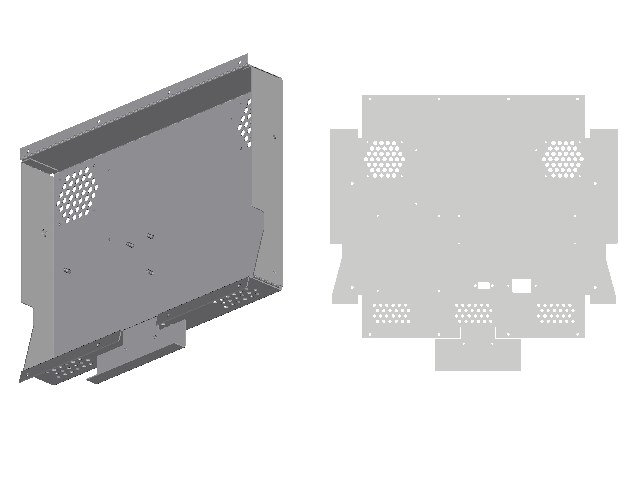

- Housing > 3D View

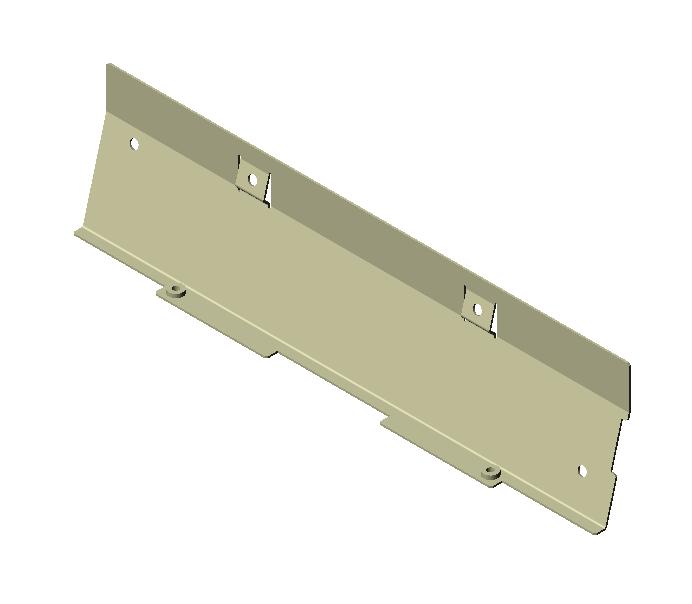

- Cover

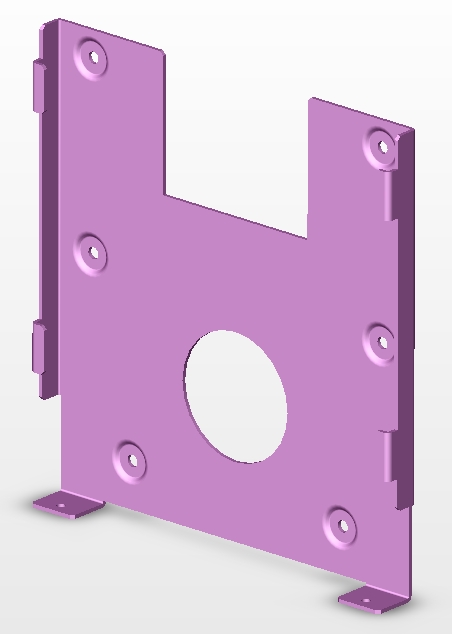

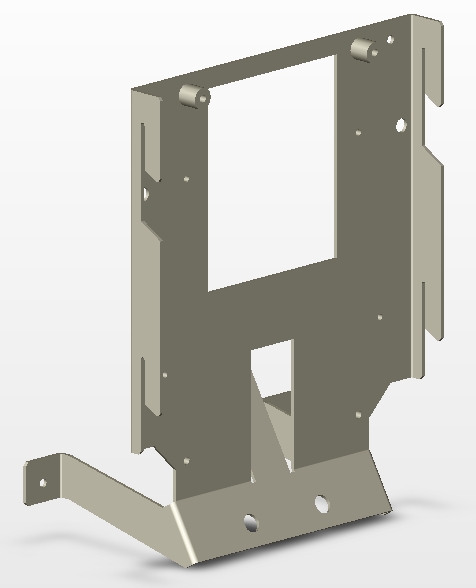

- Bracket - Internal
- Bracket - Wall
