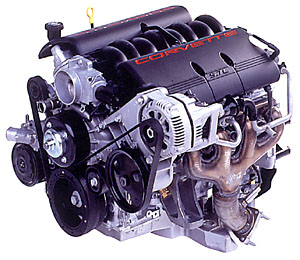

5.7L V8 - LS1 Engine Specifications
Model Year 1999

(Click for Larger Image)

Product Specifications

Type:
5.7L V8

Displacement:
5665 cc

Compression Ratio:
10.1:1

Valve Configuration:
Overhead Valves

Manufactured:
Romulus, Michigan
St. Catharines, Ontario

Valve Lifters:
Hydraulic Roller

Firing Order:
1-8-7-2-6-5-4-3

Bore x Stroke:
99.00 x 92.00 mm

Fuel System:
Sequential Fuel Injection

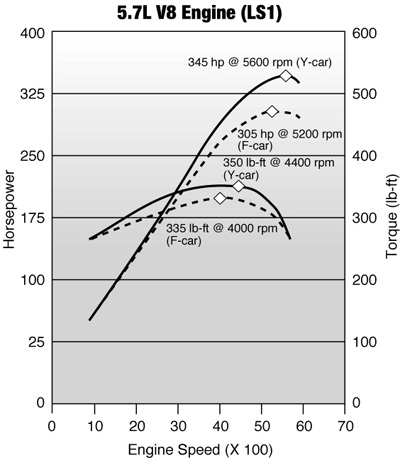

Horsepower:
345 @ 5600 rpm (Y)
320 @ 5200rpm (F perf. opt.)
305 @ 5200 rpm (F)
285 @ 5200 rpm (Holden V-car Domestic)
315 @ 5200 rpm (Holden V-car)

Torque:
350 @ 4400 rpm (Y)
345 @ 4400rpm (F perf. Opt.)
335 @ 4000rpm (F)
320 @ 4000rpm (Holden V-car Domestic)
335 @ 4000rpm (Holden V-car Export)

Fuel Shut Off:
6200 rpm Emissions Controls:
Catalytic Converter
Three-Way Catalyst
Air Injection Reaction (F-car only)
Positive Crankcase Ventilation
Exhaust Gas Recirculation (F)

Materials:
Block:�Cast Aluminum
Cylinder Head:�Cast Aluminum
Intake Manifold:�Composite
Exhaust Manifold:�Insulated Wall Dual Stainless Steel (Y), High Silicon Molybdenum Cast Nodular Iron
Main Bearing Caps:�Powder Metal
Crankshaft:�Cast Iron with Undercut and Rolled Fillets
Camshaft:�Hollow Steel
Connecting Rods:�Powder Metal

Additional Features:
� Extended Life Spark Plugs
� Extended Life Coolant
� Oil Level Sensor

LS1 Equipted Vehicles:
� Chevrolet Corvette
� Chevrolet Camaro (Z28)
� Pontiac Firebird (Formula/Trans Am)
� Holden Commodore
� Opel Omega

SPECIFICATIONS & SAFETY FEATURES

Performance Data

Acceleration (0-60 mph): 5.3 sec.

Top Speed: 167mph

Braking Distance (60-0 mph): 120 ft.

Roadholding Index: 0.86

Base Number of Cylinders: 8

Base Engine Size: 5.7 liters

Horsepower: 320 hp @ 5200 rpm

Torque: 345 lbs./ft. @ 4000 rpm

Dimensions

Exterior:

Length: 193.8 in.

Width: 74.5 in.

Height: 52 in.

Weight: 3494 lbs.

Wheelbase: 101.1 in.

Interior:

Front Headroom: 37.2 in.

Rear Headroom: 35.3 in.

Front Shoulder Room: 57.4 in.

Rear Shoulder Room: 55.8 in.

Front Hip Room: 52.8 in.

Rear Hip Room: 44.4 in.

Front Leg Room: 42.9 in.

Rear Leg Room: 28.9 in.

Luggage Capacity: 12.9 cu.ft.

Safety Features

Anti-Lock Brakes: Standard

De-powered Air Bag: Standard

Side Air Bag: Not Available

Integrated Child Seat: Not Available

Traction Control: Optional

Crash Test Results

Driver: Rating = Good

Passenger: Rating = Very Good

Fuel Efficiency

Fuel Tank Capacity: 16.8 gal.

EPA Mileage Estimates: (City/Highway)

Manual: 19 mpg / 28 mpg
Automatic: 18 mpg / 24 mpg

Range in Miles: (City/Highway)

Manual: 319 mi. / 470 mi.
Automatic: 302 mi. / 403 mi.

�

DEALER
INVOICE SUGG.
RETAIL
PRICE

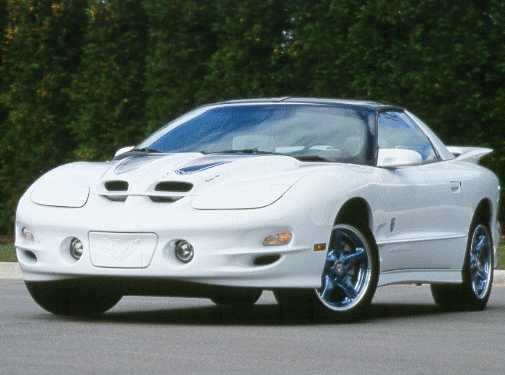

FIREBIRD TRANS AM

2FV87 Coupe 2D 24146.85 26390.00

Destination Charge 535.00 535.00

--------- ---------

BASE MODEL PRICE WITH DESTINATION CHARGE 24681.85 26925.00

(Mfr's. Effective Date 5-17-99 Revised)

Note: Base price does not include advertising and other dealer costs (see below).

�� OPTIONAL EQUIPMENT ��

�

SPECIAL FEES/CREDITS/INCENTIVES/OPTIONS

--- College Graduate Incentive -400.00

(For Recent Graduates Only) (Regional Programs May Vary) (Restrictions May Apply)

--- Customer Incentive, Cash (Expires 4-3-2000) � Formula, Trans Am -500.00

(N/A w/Performance & Handling Pkg.-WS6) (N/A w/Financing Customer Incentive or Fleet Incentive-VX5) (Regional Programs May Vary) (Restrictions May Apply)

�

EMISSION EQUIPMENT

FE9 Emission Equipment, Federal N/C N/C

YF5 Emission Equipment, California N/C N/C

(Req'd in California)

NG1 Emission Equipment, Northeast States N/C N/C

(Req'd in Connecticut, Delaware, Maryland, Massachusetts, New Hampshire, New Jersey, New York, Pennsylvania, Rhode Island, Virginia & Washington D.C.)

NC7 Emission Equipment Override, Federal N/C N/C

(Req's Emission Equipment-YF5 or NG1)

NB8 Emission Equipment Override, California/Northeast States N/C N/C

(Req's Emission Equipment-FE9)

�

ENGINES
(All Orders Must Code an Engine)

LS1 V8, 346", SFI (5.7 Liter) Std. Std.

(N/A Base)

�

TRANSMISSIONS
(All Formula & Trans Am Orders Must Code a Transmission)

MN6 6-Speed Manual w/Overdrive � Formula, Trans Am N/C N/C

(N/A Base) Includes 3.42 Axle Ratio.

MX0 Automatic, 4-Speed w/Overdrive Std. Std.

Includes 3.08 Axle Ratio (w/L36 3.8L Engine).

�

OPTION GROUPS
(All Orders Must Code an Option Group)

1SA Option Group N/C N/C

(See Std. Equipment Listing)

�

MODEL OPTIONS
(All Formula & Trans Am Orders Must Code a Model Option)

Y82 Trans Am Option � Trans Am Coupe N/C N/C

(N/A Base or Formula) (See Std. Equipment Listing)

�

ACCESSORY PACKAGES

Z4C 30th Anniversary Pkg. � Trans Am 1401.75 1575.00

(Limited Availability) (N/A Base or Formula) (N/A w/Axle-GU5 or Wheels-P05) (Req's Performance & Handling Pkg.-WS6)

All Models Include White Exterior & Interior Color, Blue Stripes, Badging, High Polished 5-Spoke Aluminum Wheels w/Specific Medium Blue Clearcoat Finish & Leather Surfaced Articulating Bucket Seats.

Coupe Includes All Models Equipment Plus Leather Rear Cargo Mat.

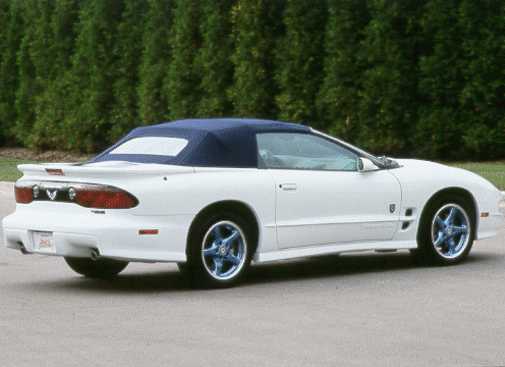

Convertible Includes All Models Equipment Plus Medium Navy Blue Top Color.

WS6 Performance & Handling Pkg., Ram Air � Formula, Trans Am 2803.50 3150.00

(N/A Base) (N/A w/Wheels-P05 or Exterior Color-79, 20 or 31) Includes Ram Air Induction System, Dual Exhaust, Functional Air Scoops, Power Steering Cooler, High Polished Aluminum Wheels, (4) P275/40ZR17 Tires & Specifically Tuned Suspension.

R7X Security Pkg. Std. Std.

(N/A w/AutoCross Pkg.-1LE) (Std. Base Convertible & Trans Am) (Std. w/Option Group-1SC) (Std. w/Option Group-1SB on Formula) (Req's Option Group-1SB on Base) Includes Keyless Remote Control Entry System & Alarm System.

�

POWER ACCESSORY

AG1 Seat Adjuster, 6-Way Power Driver's Std. Std.

(N/A w/AutoCross Pkg.-1LE) (Std. Base Convertible & Trans Am) (Std. w/Option Group-1SC) (Std. w/Option Group-1SB on Formula) (Req's Option Group-1SB on Base)

�

OTHER OPTIONS

GU5 Axle, 3.23 Ratio Performance Rear � Formula, Trans Am 267.00 300.00

(N/A Base) (N/A w/30th Anniversary Pkg.-Z4C) (Req's Tires-QLC or QFK)

VK3 Bracket, Front License Plate N/C N/C

V12 Cooler, Power Steering � Formula, Trans Am 89.00 100.00

(N/A Base) (Std. w/Performance & Handling Pkg.-WS6)

W54 Radio System, Monsoon � Base Coupe w/Option Group-1SC, Formula & Trans Am Coupe -89.00 -100.00

(N/A w/AutoCross Pkg.-1LE) (Req's Option Group-1SB or 1SC on Base) Includes AM/FM Stereo w/Cassette, Leather-Wrapped Steering Wheel w/Touch Controls & 8 (Convertibles) or 10 (Coupes) Speakers.

W55 Radio System, Monsoon Std. Std.

(N/A Convertibles) (N/A w/AutoCross Pkg.-1LE) (Std. Formula & Trans Am Coupe) (Std. w/Option Group-1SC) (Req's Option Group-1SB) Includes AM/FM Stereo w/CD, Leather-Wrapped Steering Wheel w/Touch Controls & 10 Speakers.

U1S Radio Equipment, 12-Disc Compact Disc Changer 529.55 595.00

(N/A w/AutoCross Pkg.-1LE)

CC1 Roof Hatch, Removable Locking Std. Std.

(N/A Convertibles) (N/A w/AutoCross Pkg.-1LE) (Std. Trans Am Coupe) (Std. w/Option Group-1SB on Formula) Includes Storage.

AQ9 Seats, Articulating Bucket � Trans Am 137.95 155.00

(N/A Base or Formula) (Std. w/30th Anniversary Pkg.-Z4C)

AR9 Seats, Bucket N/C N/C

**39 Seat Trim, Leather � Trans Am w/Seats-AR9 N/C N/C

**28 � Trans Am w/Seats-AQ9 N/C N/C

(Std. w/30th Anniversary Pkg.-Z4C) (Req's Option Group-1SC on Base Coupe) (Req's Option Group-1SB on Formula) (First Two Characters Refer to Interior Color) Includes Leather Seating Surfaces.

BBS Shifter, Hurst 6-Spd. Manual � Formula, Trans Am 289.25 325.00

(N/A Base) (Req's Manual Trans.-MN6)

NW9 Traction Control � Formula, Trans Am 400.50 450.00

(N/A w/AutoCross Pkg.-1LE)

P05 Wheels, Chrome Aluminum 529.55 595.00

(N/A w/Performance & Handling Pkg.-WS6 or 30th Anniversary Pkg.-Z4C) (Req's Option Group-1SB or 1SC on Base Coupe) (Req's Option Group-1SB on Formula)

�

TIRES
(All Orders Must Code a Tire)

QFZ (4) P245/50ZR16 Performance BSW � Formula, Trans Am Std. Std.

(N/A Base) Includes 2.73 Axle Ratio (w/Auto Trans.-MX0).

QLC (4) P245/50ZR16 High Performance BSW � Formula, Trans Am N/C N/C

(N/A Base) Includes 3.23 Axle Ratio (w/Auto Trans.-MX0).

QFK (4) P275/40ZR17 � Formula, Trans. Am N/C N/C

(N/A Base) (Available & Included Only w/Performance & Handling Pkg.-WS6) Includes 3.23 Axle Ratio (w/Auto Trans.-MX0).

�

EXTERIOR COLORS
(All Orders Must Code an Exterior Color)

41 Black N/C N/C

(Req's an Interior Color)

20 Blue, Medium Metallic N/C N/C

(N/A w/Appearance Pkg.-W68 or Performance & Handling Pkg.-WS6) (Req's an Interior Color)

28 Blue, Navy Metallic N/C N/C

(N/A w/Appearance Pkg.-W68) (Req's an Interior Color)

79 Blue-Green, Chameleon N/C N/C

(N/A w/Appearance Pkg.-W68 or Performance & Handling Pkg.-WS6) (Req's an Interior Color)

63 Gold, Sport Metallic N/C N/C

(N/A After 10-98) (N/A w/Appearance Group-W68) (Req's Interior Color-14 or 10)

31 Green, Bright Metallic N/C N/C

(N/A After 10-98) (N/A w/Appearance Pkg.-W68 or Performance & Handling Pkg.-WS6) (Req's an Interior Color)

11 Pewter, Metallic N/C N/C

(Req's an Interior Color on Coupes) (Req's Interior Color-14 or 10 on Convertibles)

81 Red, Bright N/C N/C

(Req's an Interior Color)

13 Silver, Bright Metallic N/C N/C

(N/A w/Appearance Group-W68 on Base Convertible) (Req's Interior Color-14 on Coupes) (Req's Interior Color-14 or 10 on Convertibles)

10 White, Arctic N/C N/C

(Std. w/30th Anniversary Pkg.-Z4C) (Req's an Interior Color)

�

INTERIOR COLORS
(All Orders Must Code an Interior Color)

14** Pewter, Dark N/C N/C

(Req's an Exterior Color) (Last Two Characters Refer to Seat Trim)

52** Taupe N/C N/C

(N/A w/Exterior Color-63 or 13) (N/A w/Exterior Color-11 on Convertibles) (Last Two Characters Refer to Seat Trim)

10** White, Bright N/C N/C

(N/A Coupes) (Std. w/30th Anniversary Pkg.-Z4C) (Req's an Exterior Color & Seat Trim-39/28) (Last Two Characters Refer to Seat Trim)

�

�� STANDARD EQUIPMENT ��

Air Conditioning
Alternator, 105-Amp.
Antenna, Power
Axle Ratio, 2.73
Brakes, Power F&R Disc
Braking System, Anti-Lock
Clock, Digital (w/Radio)
Console w/Storage
Cup Holders, (2)
Defroster, Rear Window
Door Locks, Power
Drivetrain, RWD
Emission Equipment, Federal
Engine: V8, SFI, 5.7 Liter (Must Code)
Floor Mats, F&R
Fog Lights
Fuel Tank, 16.8 Gal. Cap.
Gauges, Oil Pressure & Voltmeter
Lights: Daytime Running, Glove Box & Reading
Mirrors, Dual Power & Dual Visor Vanity
Moldings, Body Side
Option Group-1SA (Must Code)
Power Outlet, (1)
Radio System, Monsoon: AM/FM Stereo w/CD & 10 Speakers
Restraint System, Dual Air Bag
Roof Hatch, Removable Locking
Seats, Leather Surfaced Bucket (Must Code) w/6-Way Power Driver's & Folding Rear
Security Pkg.: Keyless Remote Control Entry System & Alarm System
Speed Control
Spoiler, Uplevel Rear
Stabilizer Bars, F&R
Steering Wheel, Leather-Wrapped w/Touch Controls
Steering Wheel, Tilt
Steering, Power
Suspension, Performance Ride & Handling
Tachometer
Tire, Limited Use Spare
Tires, (4) P245/50ZR16 Performance BSW (Must Code)
Tongue Load, 100-lb. Max.
Towing Cap., 1000-lb. Max. (When Properly Equipped)
Trans Am Option-Y82 (Must Code)
Trans., 4-Spd. Automatic w/Overdrive (Must Code)
Trunk/Hatch Release, Power
W/S Wipers, Intermittent
Wheels, Silver Cast Aluminum
Windows, Power

General Specifications:
Trans Am Coupe: W.B. 101.1"; O.L. 193.8"; Width 74.5"; Height 52.0"; Cargo Cap. 12.9 cu. ft.; Curb Weight 3417-lbs.

Warranty:
3-yr/36,000-mi Limited Bumper-to-Bumper; 3-yr/36,000-mi 24-hr Roadside Assistance; 6-yr/100,000-mi Sheet Metal Rust-Thru.

Engine Specifications:
Code LS1 (1); VIN G; Cylinders V8; Liters 5.7; Fuel Induction SFI; HP 305; Torque 335
Code LS1 (2); VIN G; Cylinders V8; Liters 5.7; Fuel Induction SFI; HP 320; Torque 345
(1) w/o Performance & Handling Pkg.-WS6. (2) w/Performance & Handling Pkg.-WS6.

EPA Estimated Miles Per Gallon:
w/LS1 5.7L Engine & Manual Trans.: City 19; Hwy 28
w/LS1 5.7L Engine & Auto Trans.: City 18; Hwy 24

Home | Pics | Specs | Mods | About Scott | Martial Arts | Track Time | Articles | Links | The Story |
Hosted by www.Geocities.ws

		DEALER INVOICE	SUGG. RETAIL PRICE
FIREBIRD TRANS AM
2FV87 Coupe 2D		24146.85	26390.00
Destination Charge		535.00	535.00
		---------	---------
BASE MODEL PRICE WITH DESTINATION CHARGE		24681.85	26925.00
(Mfr's. Effective Date 5-17-99 Revised)
Note: Base price does not include advertising and other dealer costs (see below).
�� OPTIONAL EQUIPMENT ��
�
SPECIAL FEES/CREDITS/INCENTIVES/OPTIONS
---	College Graduate Incentive		-400.00
	(For Recent Graduates Only) (Regional Programs May Vary) (Restrictions May Apply)
---	Customer Incentive, Cash (Expires 4-3-2000) � Formula, Trans Am		-500.00
	(N/A w/Performance & Handling Pkg.-WS6) (N/A w/Financing Customer Incentive or Fleet Incentive-VX5) (Regional Programs May Vary) (Restrictions May Apply)
�
EMISSION EQUIPMENT
FE9	Emission Equipment, Federal	N/C	N/C
YF5	Emission Equipment, California	N/C	N/C
	(Req'd in California)
NG1	Emission Equipment, Northeast States	N/C	N/C
	(Req'd in Connecticut, Delaware, Maryland, Massachusetts, New Hampshire, New Jersey, New York, Pennsylvania, Rhode Island, Virginia & Washington D.C.)
NC7	Emission Equipment Override, Federal	N/C	N/C
	(Req's Emission Equipment-YF5 or NG1)
NB8	Emission Equipment Override, California/Northeast States	N/C	N/C
	(Req's Emission Equipment-FE9)
�
ENGINES (All Orders Must Code an Engine)
LS1	V8, 346", SFI (5.7 Liter)	Std.	Std.
	(N/A Base)
�
TRANSMISSIONS (All Formula & Trans Am Orders Must Code a Transmission)
MN6	6-Speed Manual w/Overdrive � Formula, Trans Am	N/C	N/C
	(N/A Base) Includes 3.42 Axle Ratio.
MX0	Automatic, 4-Speed w/Overdrive	Std.	Std.
	Includes 3.08 Axle Ratio (w/L36 3.8L Engine).
�
OPTION GROUPS (All Orders Must Code an Option Group)
1SA	Option Group	N/C	N/C
	(See Std. Equipment Listing)
�
MODEL OPTIONS (All Formula & Trans Am Orders Must Code a Model Option)
Y82	Trans Am Option � Trans Am Coupe	N/C	N/C
	(N/A Base or Formula) (See Std. Equipment Listing)
�
ACCESSORY PACKAGES
Z4C	30th Anniversary Pkg. � Trans Am	1401.75	1575.00
	(Limited Availability) (N/A Base or Formula) (N/A w/Axle-GU5 or Wheels-P05) (Req's Performance & Handling Pkg.-WS6)
	All Models Include White Exterior & Interior Color, Blue Stripes, Badging, High Polished 5-Spoke Aluminum Wheels w/Specific Medium Blue Clearcoat Finish & Leather Surfaced Articulating Bucket Seats.
	Coupe Includes All Models Equipment Plus Leather Rear Cargo Mat.
	Convertible Includes All Models Equipment Plus Medium Navy Blue Top Color.
WS6	Performance & Handling Pkg., Ram Air � Formula, Trans Am	2803.50	3150.00
	(N/A Base) (N/A w/Wheels-P05 or Exterior Color-79, 20 or 31) Includes Ram Air Induction System, Dual Exhaust, Functional Air Scoops, Power Steering Cooler, High Polished Aluminum Wheels, (4) P275/40ZR17 Tires & Specifically Tuned Suspension.
R7X	Security Pkg.	Std.	Std.
	(N/A w/AutoCross Pkg.-1LE) (Std. Base Convertible & Trans Am) (Std. w/Option Group-1SC) (Std. w/Option Group-1SB on Formula) (Req's Option Group-1SB on Base) Includes Keyless Remote Control Entry System & Alarm System.
�
POWER ACCESSORY
AG1	Seat Adjuster, 6-Way Power Driver's	Std.	Std.
	(N/A w/AutoCross Pkg.-1LE) (Std. Base Convertible & Trans Am) (Std. w/Option Group-1SC) (Std. w/Option Group-1SB on Formula) (Req's Option Group-1SB on Base)
�
OTHER OPTIONS
GU5	Axle, 3.23 Ratio Performance Rear � Formula, Trans Am	267.00	300.00
	(N/A Base) (N/A w/30th Anniversary Pkg.-Z4C) (Req's Tires-QLC or QFK)
VK3	Bracket, Front License Plate	N/C	N/C
V12	Cooler, Power Steering � Formula, Trans Am	89.00	100.00
	(N/A Base) (Std. w/Performance & Handling Pkg.-WS6)
W54	Radio System, Monsoon � Base Coupe w/Option Group-1SC, Formula & Trans Am Coupe	-89.00	-100.00
	(N/A w/AutoCross Pkg.-1LE) (Req's Option Group-1SB or 1SC on Base) Includes AM/FM Stereo w/Cassette, Leather-Wrapped Steering Wheel w/Touch Controls & 8 (Convertibles) or 10 (Coupes) Speakers.
W55	Radio System, Monsoon	Std.	Std.
	(N/A Convertibles) (N/A w/AutoCross Pkg.-1LE) (Std. Formula & Trans Am Coupe) (Std. w/Option Group-1SC) (Req's Option Group-1SB) Includes AM/FM Stereo w/CD, Leather-Wrapped Steering Wheel w/Touch Controls & 10 Speakers.
U1S	Radio Equipment, 12-Disc Compact Disc Changer	529.55	595.00
	(N/A w/AutoCross Pkg.-1LE)
CC1	Roof Hatch, Removable Locking	Std.	Std.
	(N/A Convertibles) (N/A w/AutoCross Pkg.-1LE) (Std. Trans Am Coupe) (Std. w/Option Group-1SB on Formula) Includes Storage.
AQ9	Seats, Articulating Bucket � Trans Am	137.95	155.00
	(N/A Base or Formula) (Std. w/30th Anniversary Pkg.-Z4C)
AR9	Seats, Bucket	N/C	N/C
**39	Seat Trim, Leather � Trans Am w/Seats-AR9	N/C	N/C
**28	� Trans Am w/Seats-AQ9	N/C	N/C
	(Std. w/30th Anniversary Pkg.-Z4C) (Req's Option Group-1SC on Base Coupe) (Req's Option Group-1SB on Formula) (First Two Characters Refer to Interior Color) Includes Leather Seating Surfaces.
BBS	Shifter, Hurst 6-Spd. Manual � Formula, Trans Am	289.25	325.00
	(N/A Base) (Req's Manual Trans.-MN6)
NW9	Traction Control � Formula, Trans Am	400.50	450.00
	(N/A w/AutoCross Pkg.-1LE)
P05	Wheels, Chrome Aluminum	529.55	595.00
	(N/A w/Performance & Handling Pkg.-WS6 or 30th Anniversary Pkg.-Z4C) (Req's Option Group-1SB or 1SC on Base Coupe) (Req's Option Group-1SB on Formula)
�
TIRES (All Orders Must Code a Tire)
QFZ	(4) P245/50ZR16 Performance BSW � Formula, Trans Am	Std.	Std.
	(N/A Base) Includes 2.73 Axle Ratio (w/Auto Trans.-MX0).
QLC	(4) P245/50ZR16 High Performance BSW � Formula, Trans Am	N/C	N/C
	(N/A Base) Includes 3.23 Axle Ratio (w/Auto Trans.-MX0).
QFK	(4) P275/40ZR17 � Formula, Trans. Am	N/C	N/C
	(N/A Base) (Available & Included Only w/Performance & Handling Pkg.-WS6) Includes 3.23 Axle Ratio (w/Auto Trans.-MX0).
�
EXTERIOR COLORS (All Orders Must Code an Exterior Color)
41	Black	N/C	N/C
	(Req's an Interior Color)
20	Blue, Medium Metallic	N/C	N/C
	(N/A w/Appearance Pkg.-W68 or Performance & Handling Pkg.-WS6) (Req's an Interior Color)
28	Blue, Navy Metallic	N/C	N/C
	(N/A w/Appearance Pkg.-W68) (Req's an Interior Color)
79	Blue-Green, Chameleon	N/C	N/C
	(N/A w/Appearance Pkg.-W68 or Performance & Handling Pkg.-WS6) (Req's an Interior Color)
63	Gold, Sport Metallic	N/C	N/C
	(N/A After 10-98) (N/A w/Appearance Group-W68) (Req's Interior Color-14 or 10)
31	Green, Bright Metallic	N/C	N/C
	(N/A After 10-98) (N/A w/Appearance Pkg.-W68 or Performance & Handling Pkg.-WS6) (Req's an Interior Color)
11	Pewter, Metallic	N/C	N/C
	(Req's an Interior Color on Coupes) (Req's Interior Color-14 or 10 on Convertibles)
81	Red, Bright	N/C	N/C
	(Req's an Interior Color)
13	Silver, Bright Metallic	N/C	N/C
	(N/A w/Appearance Group-W68 on Base Convertible) (Req's Interior Color-14 on Coupes) (Req's Interior Color-14 or 10 on Convertibles)
10	White, Arctic	N/C	N/C
	(Std. w/30th Anniversary Pkg.-Z4C) (Req's an Interior Color)
�
INTERIOR COLORS (All Orders Must Code an Interior Color)
14**	Pewter, Dark	N/C	N/C
	(Req's an Exterior Color) (Last Two Characters Refer to Seat Trim)
52**	Taupe	N/C	N/C
	(N/A w/Exterior Color-63 or 13) (N/A w/Exterior Color-11 on Convertibles) (Last Two Characters Refer to Seat Trim)
10**	White, Bright	N/C	N/C
	(N/A Coupes) (Std. w/30th Anniversary Pkg.-Z4C) (Req's an Exterior Color & Seat Trim-39/28) (Last Two Characters Refer to Seat Trim)
�
�� STANDARD EQUIPMENT ��
	Air Conditioning Alternator, 105-Amp. Antenna, Power Axle Ratio, 2.73 Brakes, Power F&R Disc Braking System, Anti-Lock Clock, Digital (w/Radio) Console w/Storage Cup Holders, (2) Defroster, Rear Window Door Locks, Power Drivetrain, RWD Emission Equipment, Federal Engine: V8, SFI, 5.7 Liter (Must Code) Floor Mats, F&R Fog Lights Fuel Tank, 16.8 Gal. Cap. Gauges, Oil Pressure & Voltmeter Lights: Daytime Running, Glove Box & Reading Mirrors, Dual Power & Dual Visor Vanity Moldings, Body Side Option Group-1SA (Must Code) Power Outlet, (1) Radio System, Monsoon: AM/FM Stereo w/CD & 10 Speakers Restraint System, Dual Air Bag Roof Hatch, Removable Locking Seats, Leather Surfaced Bucket (Must Code) w/6-Way Power Driver's & Folding Rear Security Pkg.: Keyless Remote Control Entry System & Alarm System Speed Control Spoiler, Uplevel Rear Stabilizer Bars, F&R Steering Wheel, Leather-Wrapped w/Touch Controls Steering Wheel, Tilt Steering, Power Suspension, Performance Ride & Handling Tachometer Tire, Limited Use Spare Tires, (4) P245/50ZR16 Performance BSW (Must Code) Tongue Load, 100-lb. Max. Towing Cap., 1000-lb. Max. (When Properly Equipped) Trans Am Option-Y82 (Must Code) Trans., 4-Spd. Automatic w/Overdrive (Must Code) Trunk/Hatch Release, Power W/S Wipers, Intermittent Wheels, Silver Cast Aluminum Windows, Power General Specifications: Trans Am Coupe: W.B. 101.1"; O.L. 193.8"; Width 74.5"; Height 52.0"; Cargo Cap. 12.9 cu. ft.; Curb Weight 3417-lbs. Warranty: 3-yr/36,000-mi Limited Bumper-to-Bumper; 3-yr/36,000-mi 24-hr Roadside Assistance; 6-yr/100,000-mi Sheet Metal Rust-Thru. Engine Specifications: Code LS1 (1); VIN G; Cylinders V8; Liters 5.7; Fuel Induction SFI; HP 305; Torque 335 Code LS1 (2); VIN G; Cylinders V8; Liters 5.7; Fuel Induction SFI; HP 320; Torque 345 (1) w/o Performance & Handling Pkg.-WS6. (2) w/Performance & Handling Pkg.-WS6. EPA Estimated Miles Per Gallon: w/LS1 5.7L Engine & Manual Trans.: City 19; Hwy 28 w/LS1 5.7L Engine & Auto Trans.: City 18; Hwy 24 Home \| Pics \| Specs \| Mods \| About Scott \| Martial Arts \| Track Time \| Articles \| Links \| The Story \| Hosted by www.Geocities.ws
