I. GRANULATORS KOMPASS (open rotor)

A. GRANULATOR KOMPASS 20"63"(rotor - open or solid)
B. GRANULATOR KOMPASS 32"63"(open rotor)
C. GRANULATOR KOMPASS 32"48"(open rotor)
D. GRANULATOR KOMPASS 20"48"(open rotor)
E. GRANULATOR KOMPASS 20"32"(rotor - open or solid)
F. GRANULATORS KOMPASS : 7"x 9", 9"x 14", 10"x 16",12"x 18" 9"x 24". 16"x 24", 12"x 24", 16"x 24" : (rotors - open or solid)
A. GRANULATOR  KOMPASS M 500/1600 (20"63") and GRANULATOR KOMPASS M 800/1600 (32"63")

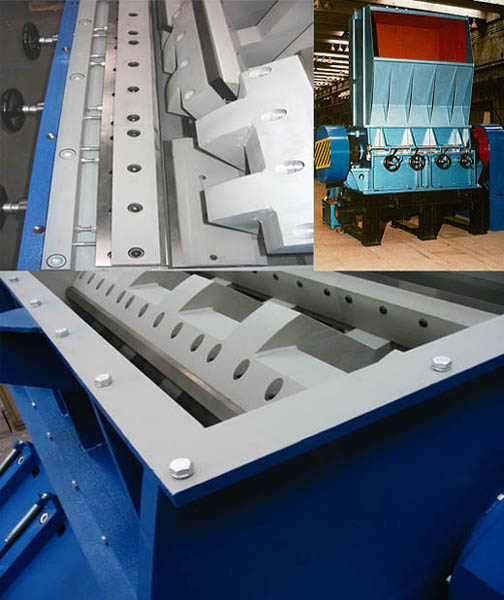

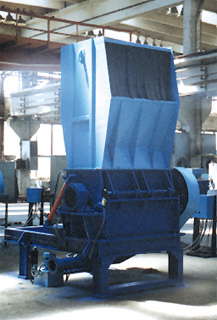

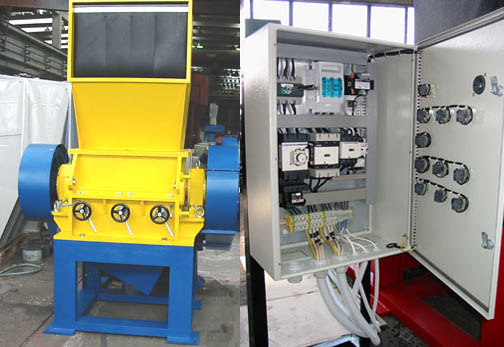

Granulator M500/ 1600 KOMPASS

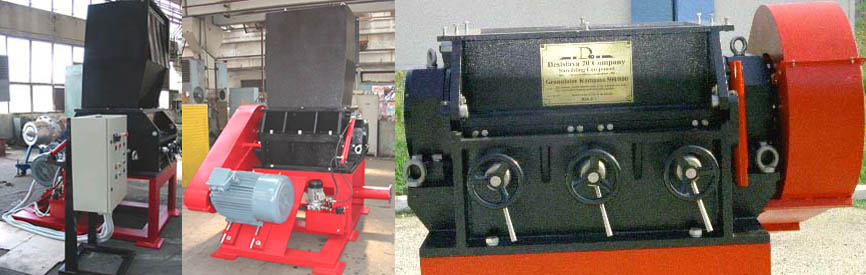

Granulator M500/ 1600 KOMPASS

1. Purpose - Granulator M 500/1600 is capable of shredding and granulating plastics for recycling, scrap rubber, pre-shredded tires, phone cable and etc. The initial material is steel liberated.The dimensions of the obtained material depends on the size of the cage adjustable-screen openings.The production rate depends on the kind of processed material and size of the cage adjustable-screen openings.
2. Description - The 220 hp asynchronous electric motor drives the shaft of the Granulator through belt stretch. Nine non-adjustable rotor knives are fixed on the shaft. The processed material is fedthrough the feed opening to the inner part of the machine where it falls between the high speed turning rotor knives and the fixed, adjustable stator knives.

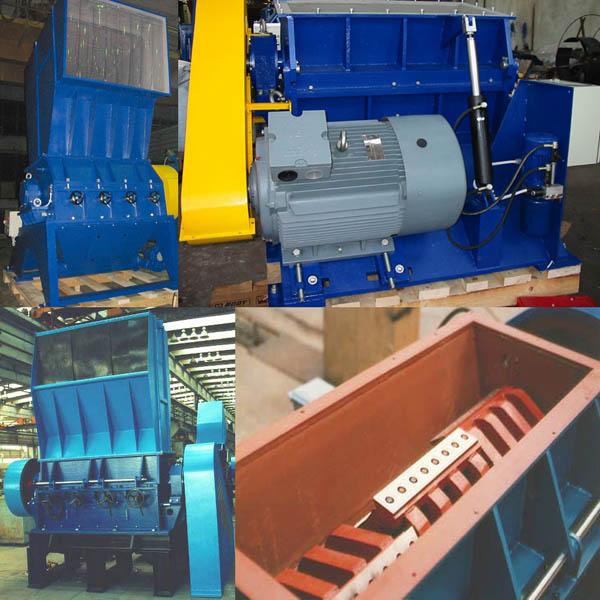

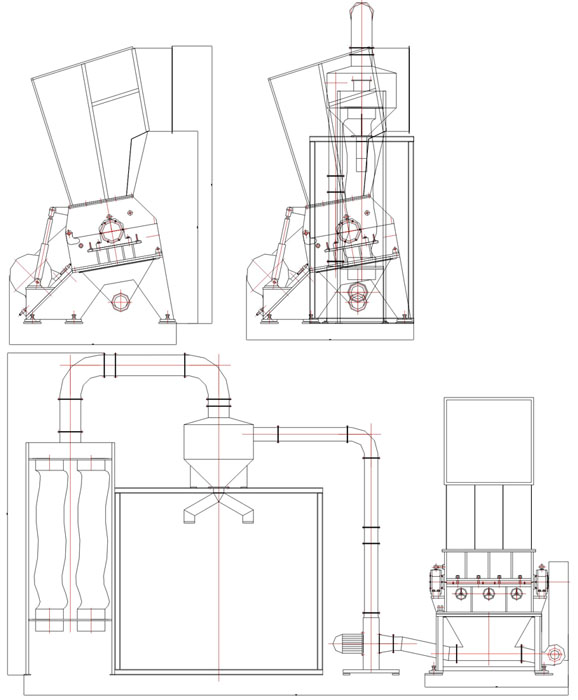

Granulator M500/ 1600 KOMPASS
Specification
INSTALLED CAPACITY 223 hp (162.2 kW)
ROTOR DIAMETER 20" (500 mm)
ROTOR LENGTH 63" (1600 mm)
NUMBER OF ROTOR KNIVES 9
HEIGHT OF THE KNIVES 1-1/8" (29 mm)
NUMBER OF THE BED KNIVES 6
PRODUCTIVITY 8000 lb(3624 kg) / per hour
OVERALL DIMENSIONS  L 115" (2920mm)
W 49" (1240mm)
H 135" (3440mm)
ROTOR KNIVES L 20".8661(530mm)
W 3".5433( 90mm)
BED KNIVES L 20".8661(530mm)
W 3".5433( 90mm)
FEED OPENING 63"(1610mm) x 28"(715mm)
DISCHARGE OPENING 6"(147mm)
BEARINGS RADIAL, DOUBLE-ROW,
SELF-ALIGNING DIN 22 332
(160mm x 340mm x 114mm)
REVOLUTIONS OF THE ROTOR 214 RPM

B. GRANULATOR KOMPASS M 500/1200  (20"48")
Granulator KOMPASS is capable of shredding and granulating plastics for recycling, scrap rubber, pre-shredded tires, phone cable and etc.

The initial material is steel liberated.

The dimensions of the obtained material depends on the size of the cage screen openings. The production rate depends on the kind of processed material and size of the cage screen openings.

Specification
FEED OPENING 28" (715 mm) x 48" (1220 mm)
DISCHARGE OPENING 6"(147mm)
OVERALL DIMENSIONS L  8'-6" (2550 mm)
W 7'-6" (2286mm)
H 11'-3"(3430 mm)
TOTAL WEIGHT 9900 lb. (4500 kg.)
ROTOR DIAMETER 20" (500 mm)
ROTOR WIDTH 47-1/4" (1200 mm)
NUMBER OF ROTOR KNIVES 6
LENGTH OF ROTOR KNIVES 23-2/3" (600 mm)
NUMBER OF STATOR KNIVES 4
LENGTH OF STATOR KNIVES 23-2/3" (600 mm)
WIDTH OF THE ROTOR AND
STATOR KNIVES		 1-1/8" (29 mm)
PRODUCTIVITY 1200 – 2000 lbs./per hour
INITIAL MATERIAL(sizes) 10" x 15" or oversized chips
SCREEN .5", .4", .3", .24"
ELECTRIC DRIVE (kW) 55-110
VOLTAGE 480V/ 60Hz



DEPENDING ON THE CUSTOMER'S DESIRE WE ARE ABLE TO MANUFACTURE SEPARATE UNITS IN THE STRUCTURE OF THE GRANULATORS.
Electric drive
  • (hp)
  • (V)
  • cycle/ min
  • electric equipment
 Screen
  • adjustable or non-adjustable
  • diameter of the holes
 Rotor knives
  • adjustable or non-adjustable
C. GRANULATOR KOMPASS M 500/800 ( 20"32") and GRANULATOR KOMPASS M 800/1200 ( 32"48" )

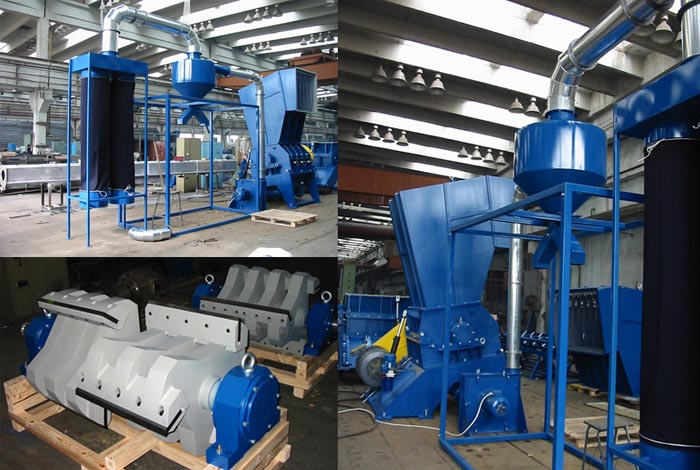

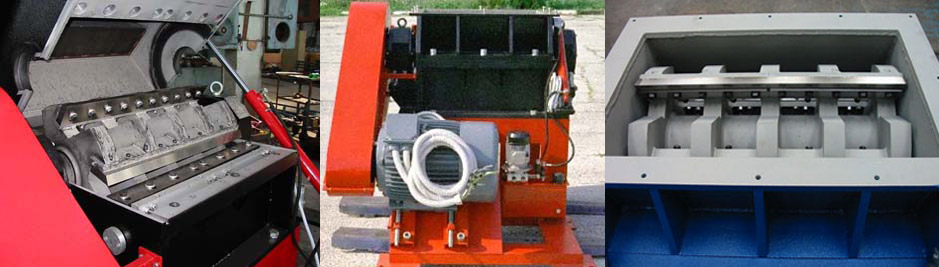

Granulator Kompass 3132

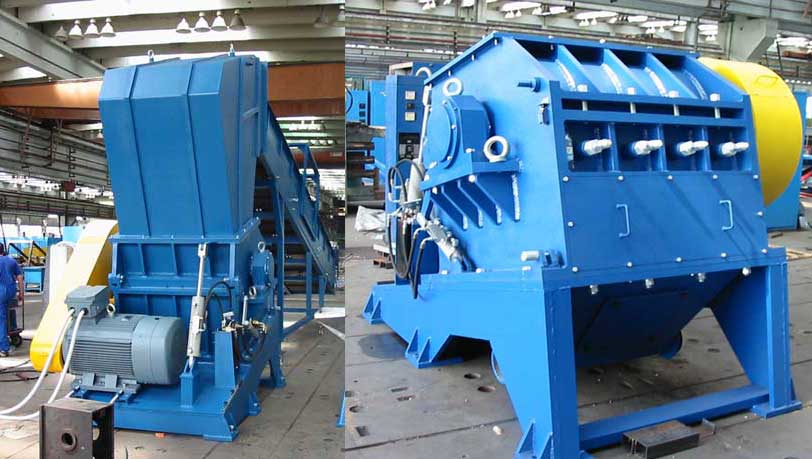

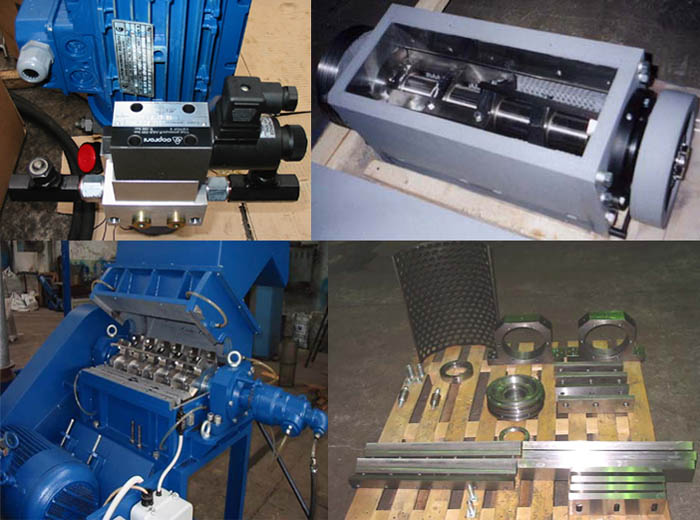

Granulator Kompass 800/1200

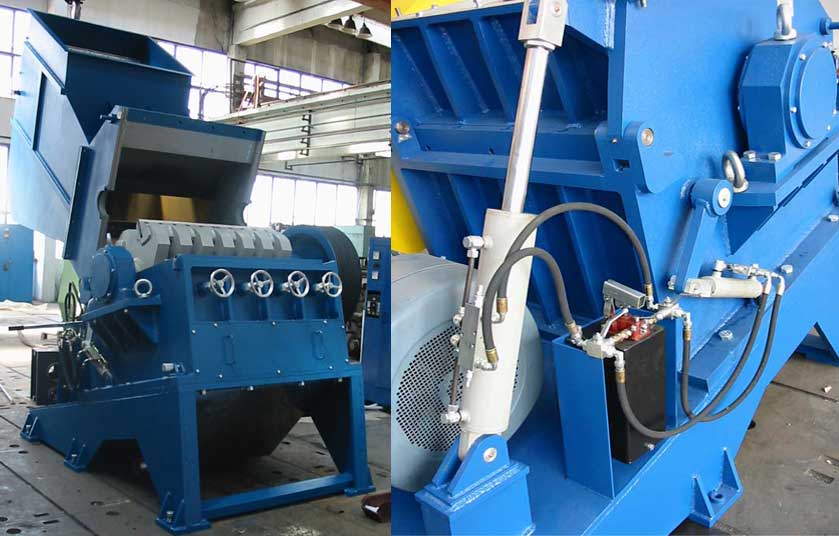

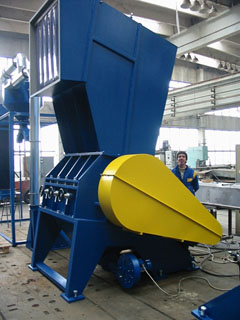

Granulator Kompass 800/1200b The initial material is steel liberated.

Specification

FEED OPENING 31" (785 mm) x 32-1/5" (818 mm)
ROTOR DIAMETER 20" (500 mm)
ROTOR WIDTH 32" (800 mm)
NUMBER OF ROTOR KNIVES 6
NUMBER OF STATOR KNIVES 4
ELECTRIC DRIVE (hp) 74 hp
PRODUCTIVITY 1200 lbs./per hour
VOLTAGE 480V/ 60Hz
TOTAL WEIGHT 8515 lb. (3870 kg.)

D. GRANULATOR KOMPASS M 220/360 (9" 14") and M 300/450 (12" 18")
 The initial material is steel liberated.

The granulators are designed for grinding waste polymeric materials (PEHP, PE/ P, PP, PS, PMMA) to sizes needed for consequent processing. They can operate as independent machines as well as included into technological lines for recycling polymeric materials.

The two-section body is a stable welded and reinforced construction allowing entire access when cleaning the machine and when replacing or regulating the blades



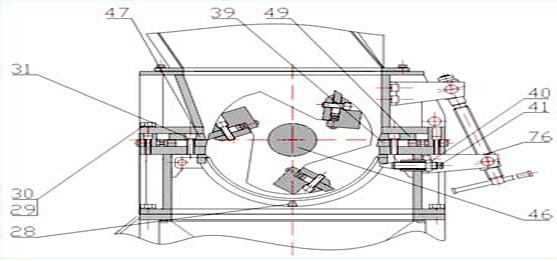

Specification
ROTOR DIAMETER 8-2/3" (220 mm)
ROTOR WIDTH 14" (360 mm)
NUMBER OF ROTOR KNIVES 3
NUMBER OF STATOR KNIVES 2
ELECTRIC DRIVE (hp) 15 hp
VOLTAGE 480V/ 60Hz

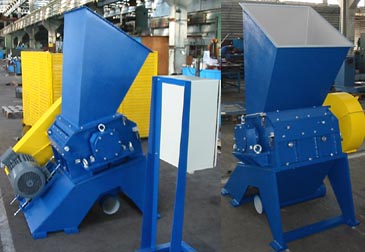

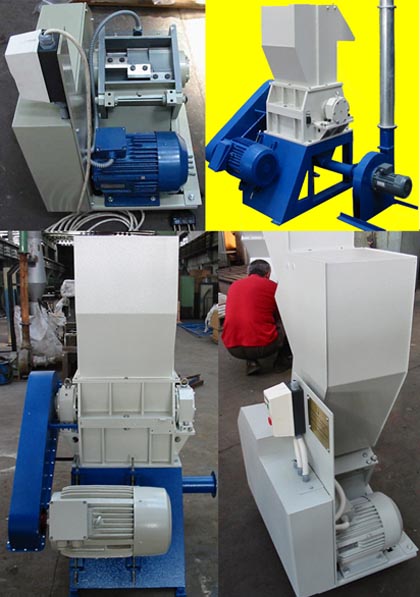

E. GRANULATORS KOMPASS 170/225 250/400 220/600 400/500 400/600 Solid 300/600 T 400/600 T
1. Purpose
The rotor granulators are intended for processing of plastics scrap etc. It is necessary for everyone who wish to use again its technological scrap of thermoplastics. The same could be used for base machines in technological lines for granulation of pure or dirty plastics.
Granulators
2. Description
Depending on the type and overall dimensions of the processed material we offer a wide range of models with various rotor configurations and productivity. Divided in two parts body is a steady welded and ribbed unit. It allows a perfect access with the cleaning of the machine, as well as with the change and adjustment of the knives. The last are produced of high -alloyed hardened steel .The screens, which determine the grain size of the grinded material could be changed quickly and easily. The heavy model granulators have a hydraulic system for opening the upper part of the body. To the rotor granulators there are additionally flexible pneumotransport systems with ventilators for abstraction of the grinded material and its moving to hopper or to position for sacking. There exist versions of execution with the noise absorbing system, which increase the comfort at working with the machines. We offer out of the production program designing and manufacture of granulators, which satisfy the concrete and specific problems of the customers.
DEPENDING ON THE CUSTOMER'S DESIRE WE ARE ABLE TO MANUFACTURE SEPARATE UNITS IN THE STRUCTURE OF THE GRANULATORS.
Electric drive:
  • horse power
  • electric voltage ( V )
  • cycle/ min
  • electric equipment
 Screen:
  • adjustable or non-adjustable
  • diameter of the holes
  • clocking through 3 or 4 conical bolts
 Rotor knives
  • adjustable or non-adjustable
