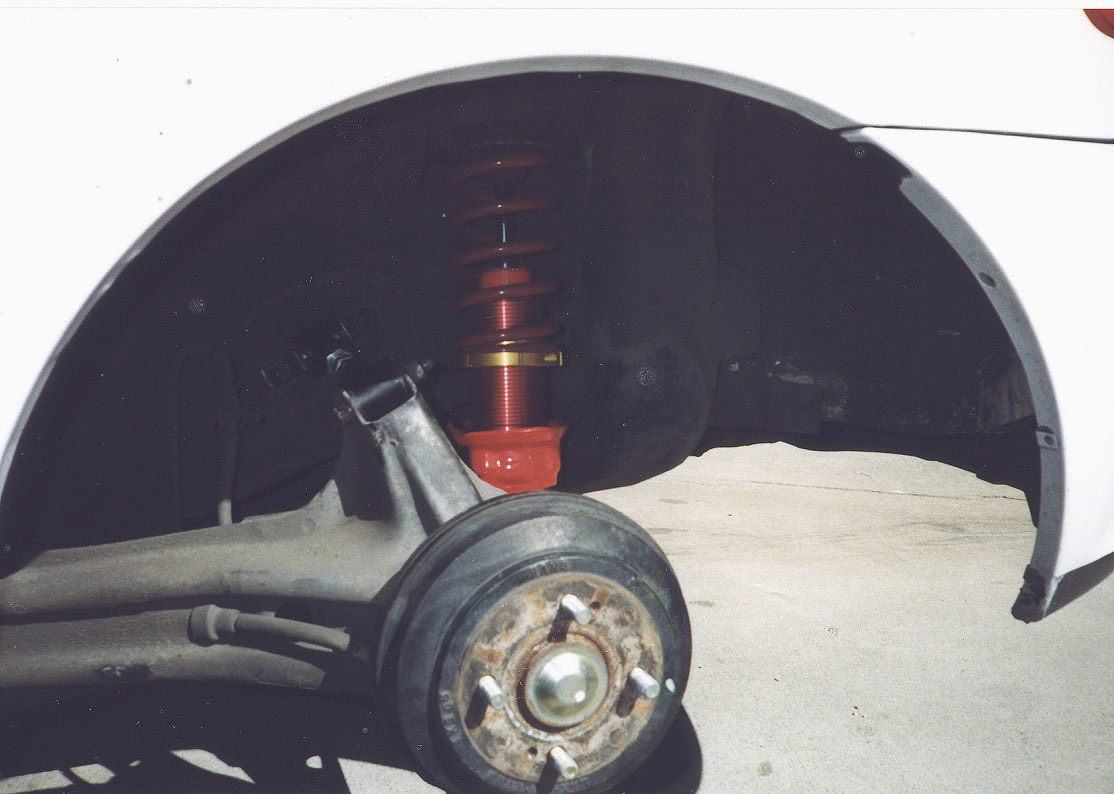

Suspension
consists of Ground Control height adjustable coil over kit with
Eibach race springs rated at 375 lbs/in front, 350 lbs/in rear.
They are mounted on a set of GAB "Super R" 4 way adjustabel
shock absorbers. Settings for the shocks are stiff, stiffer,
really stiff, and way too stiff! JDM/Type R style rear lower
contrl arms were swapped in for the GABs, which were originally
designed for the JDM market suspension.
Suspension
Techniques front and rear swaybars were also added. These measure
19mm both front and rear and come with polyurethane bushings.

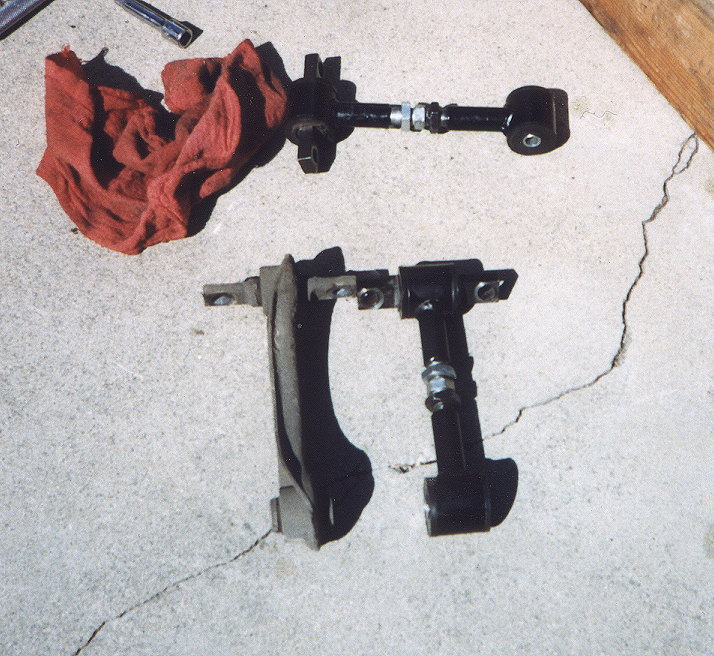

An
Ingall's adjustable camber kit was installed at the rear. This
allows better matching of the suspension settings between the
front and rear tires.
The
setup is easily "tunable" at the track. I can adjust
the settings on the shocks to increase or decrease oversteer
during a 30 second pit stop.
|
