ENGINE SPECS

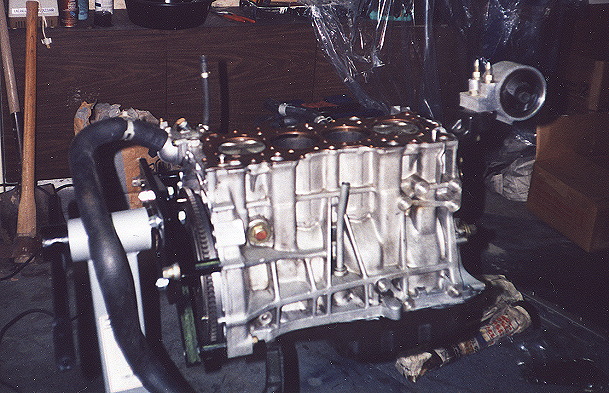

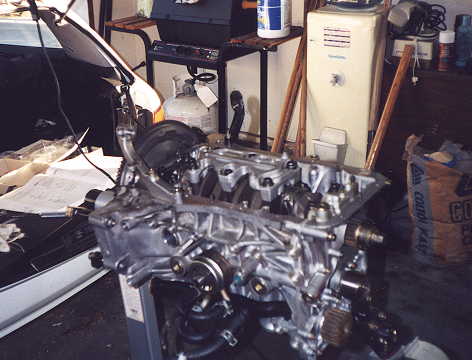

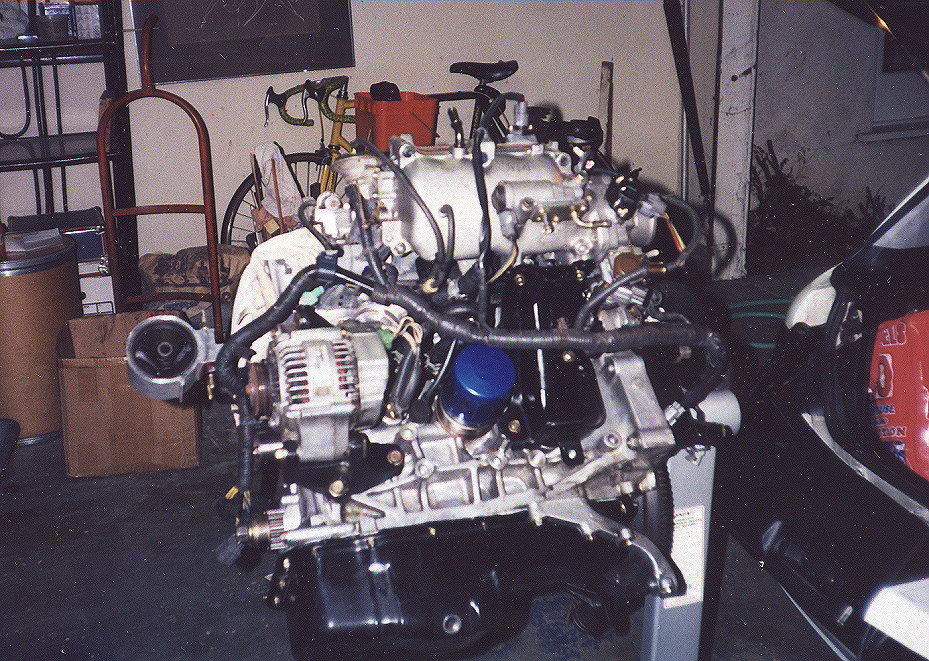

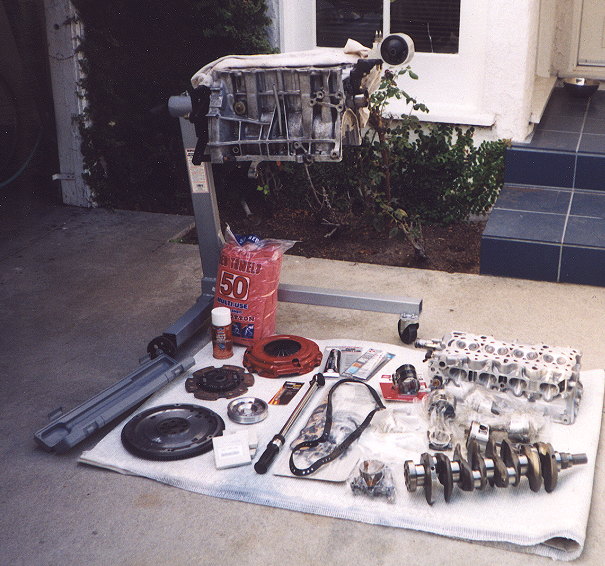

The engine has been rebuilt (by me) with the following:
  • Porflow P&P cylinder head & valvejob with upgraded valvesprings.
  • Iceman cool air intake with K&N filter
  • JDM spec '98 Integra type R camshafts
  • B16a pr3 pistons from 1.6L Del Sol vtec (gives 11.6:1 compression in 1.8L block)
  • Dynamically balanced crankshaft
  • Lightened and balanced flywheel
  • Heavy duty clutch pressure plate w/ 6 puck disk
  • UR aluminum underdrive pulley (one cog pulley for alternator only)
  • AEM adjustable cam gears
  • 2.25" custom exhaust with glasspack and dynomax muffler.
  • Hi-flow catalytic converter (gotta be legal you know!)

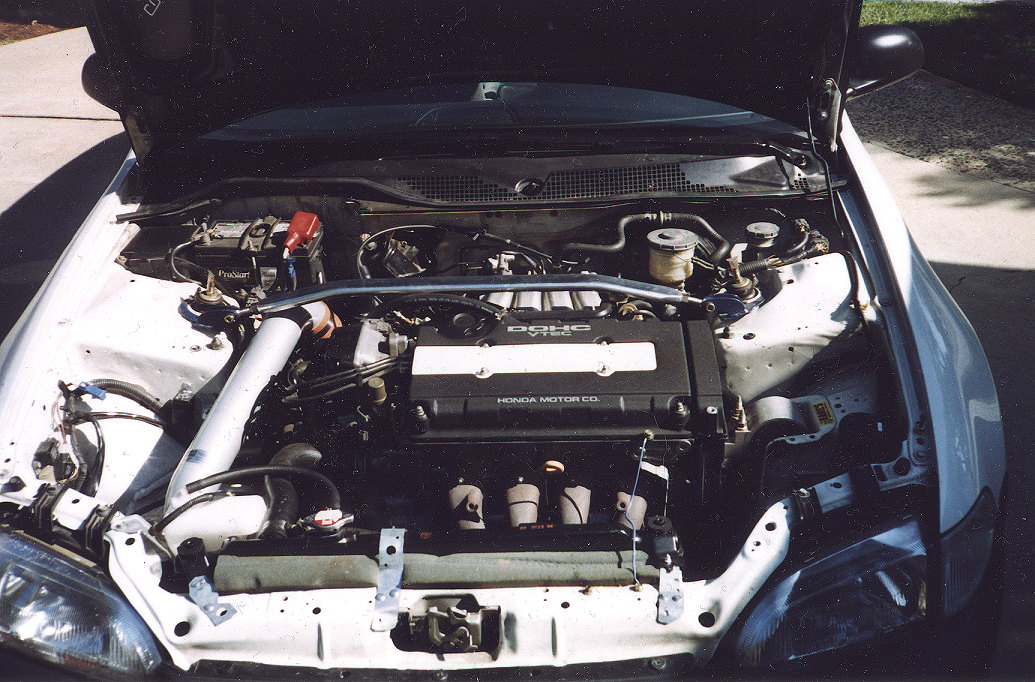

Currently, the engine makes 198hp (at the flywheel) according to a Bosch chassis dyno. I have a JDM header and overbored TB on the way. Then it's off to mr. dynojet for some tuning.
