X-25/X-25A/X-25B Gyrocopter
![](x_planes/X-25.jpg) Specifications Company- Bensen
Aircraft Type- Attempt to provide an escape vehicle for crews of crippled aircraft.
Goals- Test gyrocopter
discretionary descent vehicle designs.
Primary Testing Facility
Research- Raleigh, NC Dimensions-
Span: 22 ft, 8 in; Length: 11 ft, 3 in; Height: 6 ft, 3 in Max Speed-
95 MPH Range- 84 miles Max Altitude- 15,000 ft Power Plant-
One McCulloch 4318 piston engine with 72 hp Thrust- N/A Weights-
Empty: 247 lbs; Loaded: 550 lbs Payload- N/A Flights-
0 Number of Prototypes Built- 3 Project Tenure-
1698 Project Status- Cancelled Information
The Discretionary Descent Vehicle was planned to
replace combat aircraft ejection seats to allow downed pilots more
control over their post-ejection landing spot. Three Bensen B-8
gyro-glider/gyro-copters were ordered and modified:
X-25
The X-25 gyro-glider was an unpowered autogyro. No
known piloted tests of this vehicle were performed.
X-25A

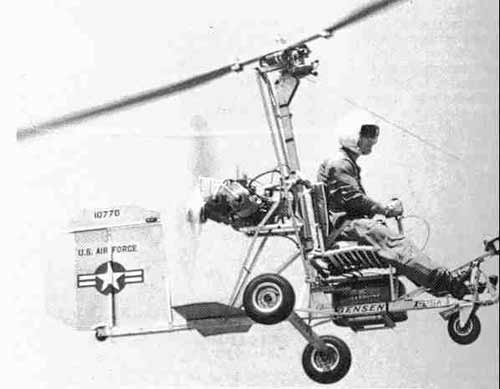

The X-25A gyro-copter (Serial Number 68-10770) was
a powered version first flown on June 5, 1968.
X-25B
The X-25B gyro-glider (Serial Number 68-10771) was
unpowered and first flown on January 23, 1968.
The X-25A and X-25B were used to
evaluate the piloting and training requirements of the autogyros. No
full-scale operational tests were ever performed. The U.S. Air Force
stopped funding the DDV program with the end of the Vietnam War.
The X-25A 68-10770 is displayed in the National
Museum of the United States Air Force at Wright-Patterson Air Force Base
near Dayton, Ohio
The X-25B 68-10771 is displayed at the AFFTC Museum
at Edwards Air Force Base.
** Information provided by Wikipedia ** |
