HF-17555
PROJECT: HF-17555
DESCRIPTION: Microprocessor module RP2040

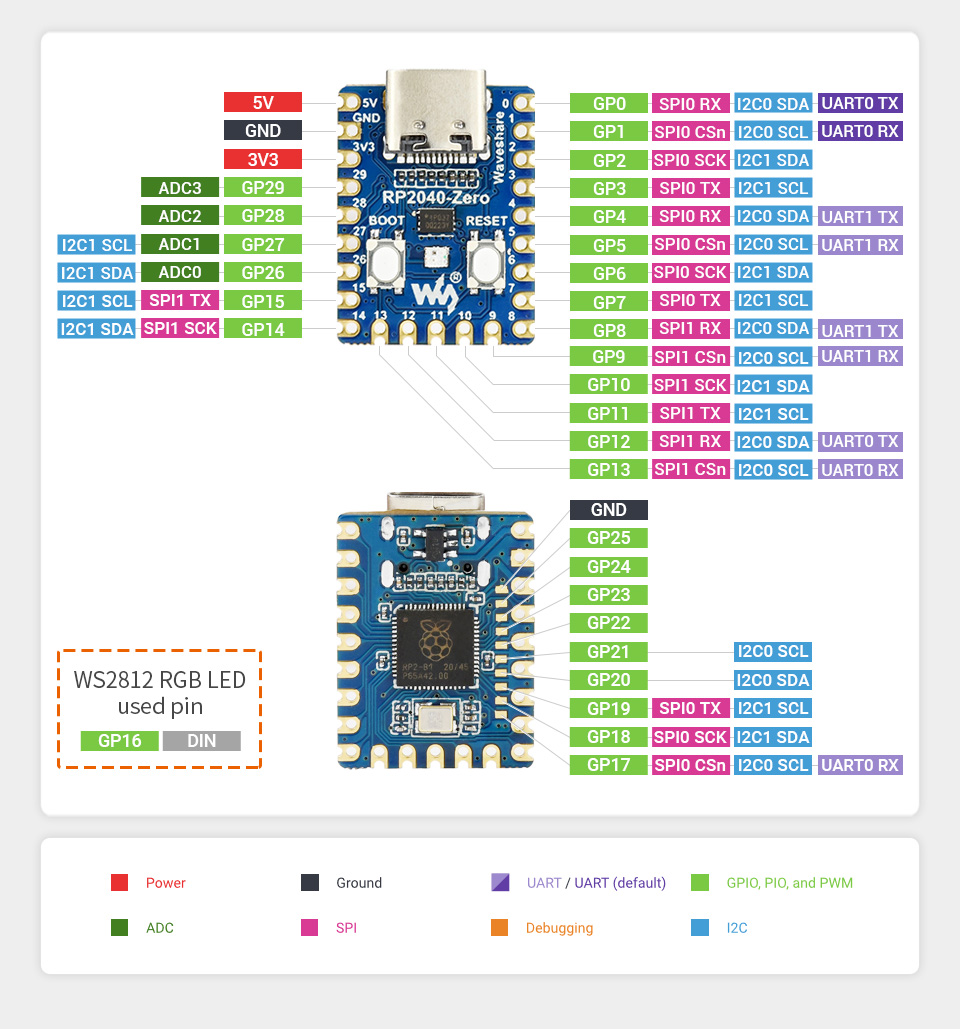

TYPE: RP2040-zero
BRAND: RASPBERRY
STATUS: 3u
PROJECT START DATE: 2024
LOCALISATION: PL
DOCUMENTATION:
PCB: TPD57555
DIMENSIONS:
CPU: RP2040
CPU BRAND: RASPBERRY
FAMILY: ARM, Cortex M-0, Dual Core
ROM:
RAM:
MAX CLOCK: 133 MHz
HF-17777 with HF-60777 and HF-17555 with HF-60555
Modules:
| PROJECT | PARTIA | STATUS | USAGE | PCB | UC-### | THN ADR | LOC. | REMARKS |
|---|
| HF-17555#1 | PARTIA1 | u | ad-hoc projects | TPD57555#1 | UC-649 | 0x2C | PL | |
| HF-17555#2 | PARTIA1 | u | ad-hoc projects | TPD57555#2 | UC-650 | 0x2D | PL | |
| HF-17555#3 | PARTIA2 | u | reserve | TPD57555#3 | UC-666 | 0x3D | PL | |
For these 3 modules 2 extension boards HF-60555 has been made. Used for ad-hoc projects. 2 MB SPI FLASH memory is present on these boards.
Designator HF-6055 is planned for HF-17555 and HF-60555 as a complete digital system.
Sources:
[1]
