HF-17852
PROJECT: HF-17852

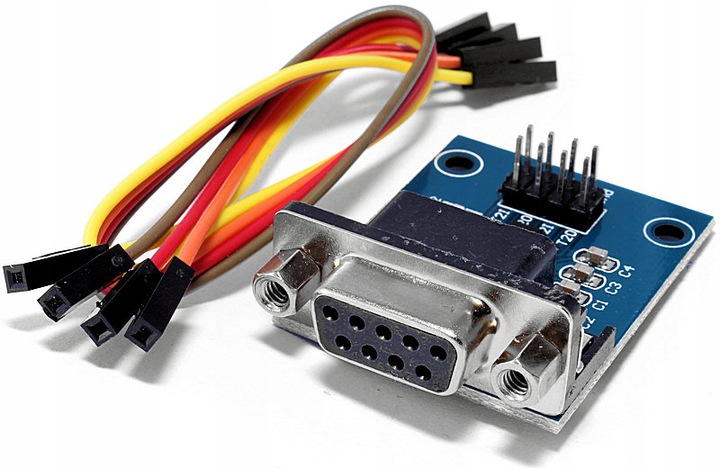

DESCRIPTION: Converter RS232-UART MAX3232
TYPE: HW-044
BRAND: Chinese Peoples's Republic
STATUS: u
PROJECT START DATE: 2024
LOCALISATION: QD
DOCUMENTATION:
PCB: TPD57852
DIMENSIONS: 31 x 38 mm
HF-17852
Project Info
Acquired on Aliexpress. Used with various digital systems mainly those equipped with HF-10040 UART interface. I made special cable for that HF-70195.
Zasilanie:3,5V- 5V
Układ: MAX3232 ( zgodny z MAX232 )
W zestawie 4x przewód żeńsko - żeński 20cm
Sygnalizacja pracy: diody LED
Złącze RS232 : DB9 żeńskie
Wyprowadzone sygnały: Vcc, RX, TX, Gnd
