HF-6110


PROJECT: HF-6110
DESCRIPTION: Extension Board for STM32F103 modules
STATUS: q
PROJECT START DATE: 2024
LOCALISATION: PL
DOCUMENTATION: TM
PCB: TPD52908#1
SYSTEM DIMENSIONS: 150 x 90 mm
SUPPLY VOLTAGE: 5V
HARDWARE VERSION: 2.02
SOFTWARE VERSION: 1.13

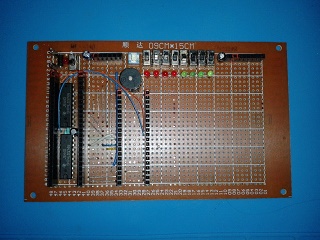

HF-6110 extension board version 0.02




Modules:
PROJECTSTATUSPCBREMARKS
HF-6110qTPD52908#1Extension Board
HF-17760#1uTPD57760#1uC module STM32F103C6T6
HF-17760#2uTPD57760#2Option: uC module STM32F103C6T6
HF-17760#3uTPD57760#3Option: uC module STM32F103C6T6
HF-17760#4uTPD57760#4Option: uC module STM32F103C6T6
HF-17760#5uTPD57760#5Option: uC module STM32F103C6T6
HF-17800uTPD57800Option: uC module STM32F103C8T6
HF-17731uTPD57731Option: 0.96 TFT display, RGB, 240x240 px
HF-17883uTPD57883Option: Memory module 8MB (W25Q64)
HF-64110uTPD42110Option: FLASH Module 16MB (W25Q128)
HF-64111uTPD42110Option: EEPROM Module 512KB (24CSM04)


Project Info

Construction is not ended yet. This system is designed for tests with STM32 modules. Half of extension board is left empty for ad-hoc constructions.

This system has the following features:
  • Local hex keyboard
  • On-Off switch
  • Reset button
  • 8 bit encoder
  • 8 LEDs
  • LED supply voltage control
  • HF-10082 SPI interface for HF-64110 16MB memory module or HF-17883 8MB memory module or HF-64111 512KB memory module
  • Socket for 0.96 TFT display
  • Socket for STM32 uC module
  • Socket for memory module 8MB
  • Fixed EEPROM 24C08 on extension board resources
  • Buzzer (CW output device)
  • Potection against reversed supply polarity


    • Hardware changes

    Version 0.02 - version with HF-17796 TSOP48 extender and supporting 2 latches.
    Version 2.01 - HF-17796 TSOP48 extender excluded from this project (HF-40126 was made for it). Ditto latches for this module. Local hex keyboard is planned together with multiplexer.
    Version 2.02 - Added local hex keyboard, EEPROM 24C08 (DRIVE2).
