Do-It-Yourself CO2
System!
Schematic:
Fermentation
Equation:
Sugar
+ Yeast ->
Ethanol + ‘Carbon
Dioxide?#060;/font> |
|
|
|
|
|
Please read
the [Disclaimer]
before you begin. |
|
|
***********************************
Building
the CO2 Generator:
*********************************** |
|
|

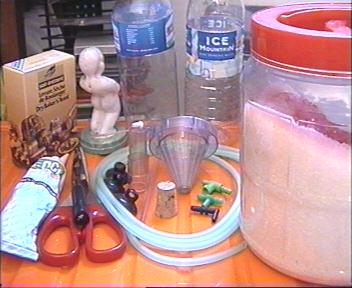

1) Total List of Equipments Needed.
List of Equipments |
|
|
|
|
|
2)

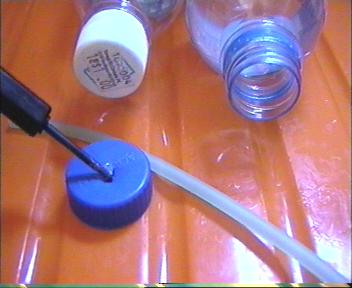

Create a hole on each of the 2 bottle caps.
(slightly
bigger than air tube will do).
(Please
be careful with any sharp objects, wear a glove if need be)
Read
Safety Instructions HERE.
|
|
|
|
|
|
3)

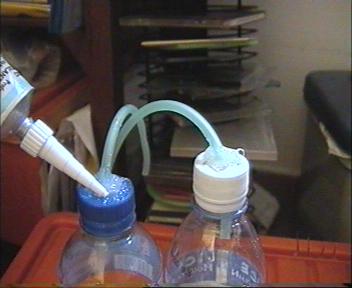

Seal the holes with Silicon Gel.
(Wait
for it to dry within 24 hours)
Precautions: Please
keep silicon gel after using
|
|
|
|
|
|
4)
The completed setup of CO2 Generator.
(with
1 air tube connector + 1 air valve)
Can fill the bottles with Yeast
+ Water + Sugar to produce CO2. |
|
|
***********************************
Building
the CO2 Reactor:
*********************************** |
|
|
1)

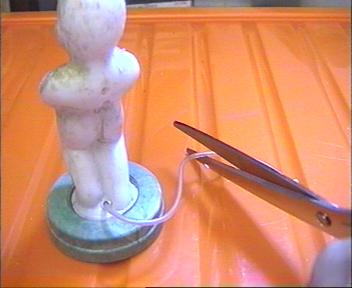

Cut 4 pieces of "thin air tubes" from other fish accessories.
|
|
|
|
|
2)

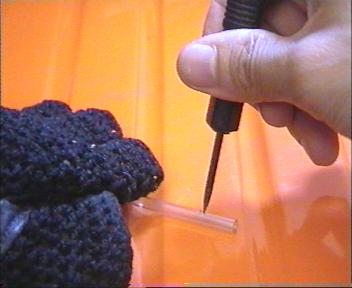

Creating a 'tiny hole' in a plastic tube.
(Please
be careful with any sharp objects, wear a glove if need be!)
Read
Safety Instructions HERE.
|
|
|
|
|
|

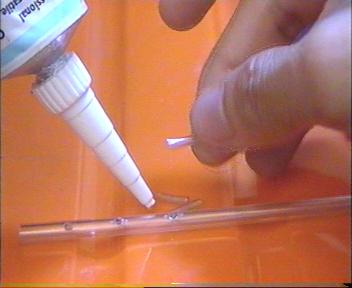

3) Glue the tiny air
tubes to the holes with silicon gel.
|
|
|
|
|
|

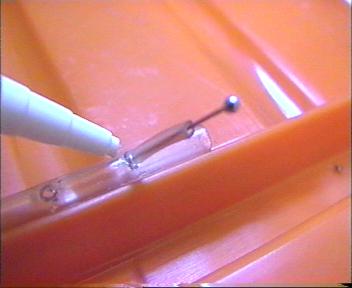

4) Glue with the aid
of a needle as a support & to prevent silicon gel from flowing into
the holes.
|
|
|
|
|
|

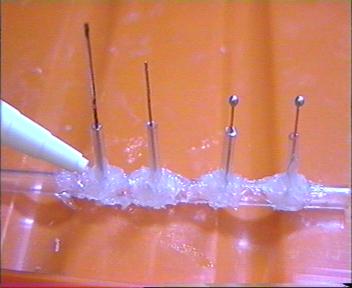

5) Four needles
supporting the 4 tiny air tubes to the plastic tube.
|
|
|
|
|
|
6) Under Construction.
(under
construction..) |
|
|
|
|
|
7) Under
Construction.. (under
construction..) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Things you
need:
 | 2 Mineral water bottles (250ml) |
| Air tube (~60cm) |
| Silicone Sealant |
| 2 Air tube Connectors (L & T-Shapes) |
| A Sharp Object (for creating a hole in bottle cap) |
| A Pair of Scissors |
| 1 Cork |
| 1 Tubefix worms holder |
| 1 Plastic Tube |
| 4 Needles (depends on number of holes created) |
| |
| Yeast (used for baking cake ~ S$1.90 for 5 packets) |
| Sugar + Water |
Back to TOP
|
|
Safety Devices Required:
| Goggles/Spectacles |
| Hand Gloves |
| Medical Kit |
Precautions:
| NEVER do this project when a child is around! |
| NEVER attempt this project if you are under 12 years old! |
| NEVER place the silicon gel near a child or fish/pets! |
| NEVER say you cannot do this project! If Alan can, so can you! ;) |
Back to TOP
Disclaimer:
The author of this website should not be held
responsible for any mishaps or losses as a result of following the
instructions here.
