Standard Bell-Saucer overhead luminaires components
Example 1.3 - Standard BellSaucer 165-216-356 Overhead Luminaire
Main features:
-Cast material -standard- head-cup shield.
-Cast material -standard- Bell-shaped shield.
- Pressed Aluminium or steel plate Saucer-shaped shield.
More details in this page will be available later

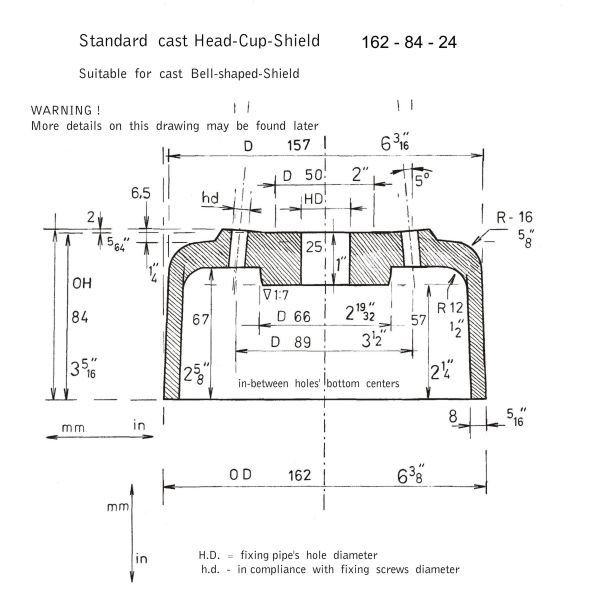

Head-Cup Shield

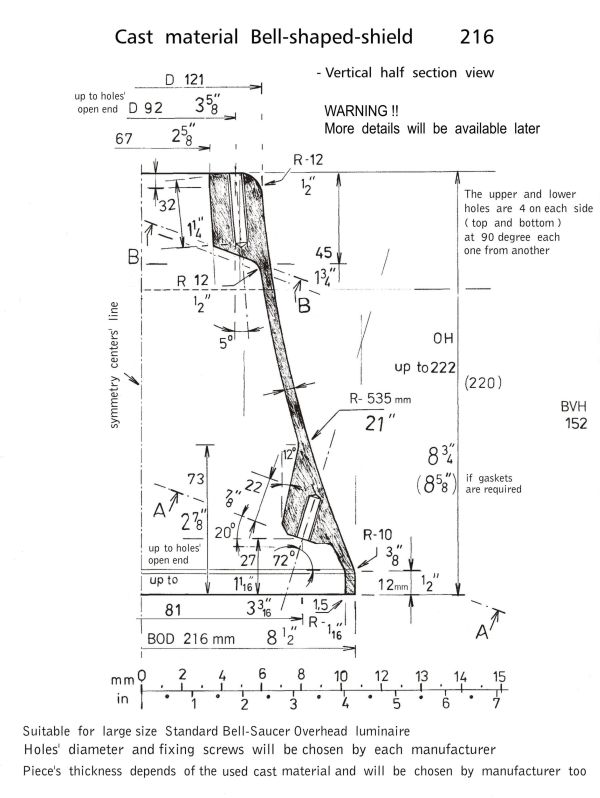

Bell-shaped Shield

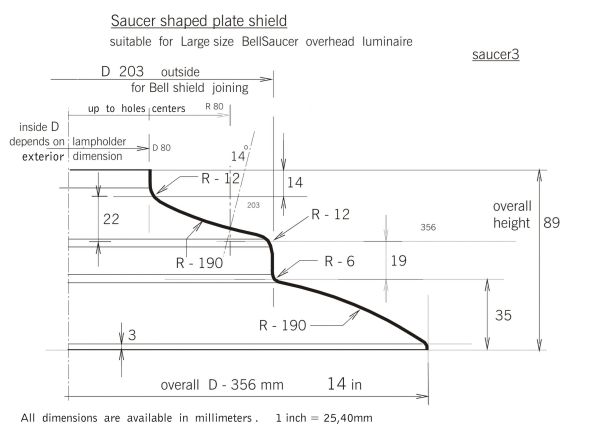

Saucer-shaped Shield
