Bell-Saucer Overhead Luminaires - content page |
![]() |
![]() |
![]() |

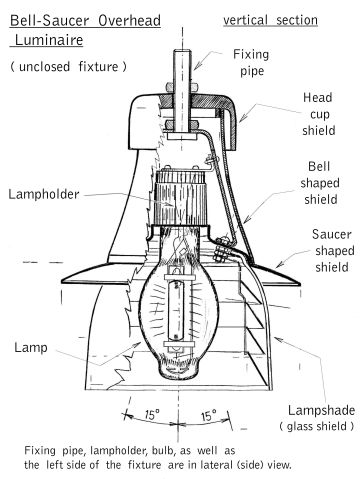

Please look up "Luminaires Examples" to find all sizes, outside shapes and dimensions ! High overhead "Bell-Saucer" shaped fixtures, for street, square, residential, environmental, park, landscape, high bay, high and large unlived indoor spaces, warehouse lighting, using HID, compact and subcompact fluorescent, or incandescent bulbs, in detailed mechanical drawings, will be available later. This kind of fixtures are designed as "unclosed". Therefore, there will be used only where is not required a high protection degree. Used lamps or bulbs will be chosen, only, for - unclosed luminaires class. |
1 - Standard 165-216-356 common . 1.1 Pressed-plate or cast head-cup shield, pressed-plate "bell" shield, pressed-plate "saucer" shield. 1.2 Cast head-cup shield, cast "bell" shield, pressed-plate "saucer" shield. 2 - Standard 165-216-356 high-tapered . 2.1 Pressed-plate or cast head-cup shield, pressed-plate "bell" shield, pressed-plate "saucer" shield. 2.2 Cast head-cup shield, cast "bell" shield, pressed-plate "saucer" shield. 3 - Stylized common 165-210-356 . 3.1 Cast head-cup shield, pressed-plate "bell" shield, pressed-plate "saucer" shield. 3.2 Cast head-cup shield, cast "bell" shield, pressed-plate "saucer" shield. Note : Each type of Bell-Saucer Overhead luminaire may contain more interchangeable pieces. |
- Common pieces and components Click here for more details ! |
