Stylized Bell-Saucer overhead luminaires components
Example 3.2 - Stylized BellSaucer 165-210-356 Overhead Luminaire
Main features:
- Cast material head-cup shield.
- Pressed Aluminium or steel plate Bell-shaped shield.
- Pressed Aluminium or steel plate Saucer-shaped shield.
More details in this page will be available later

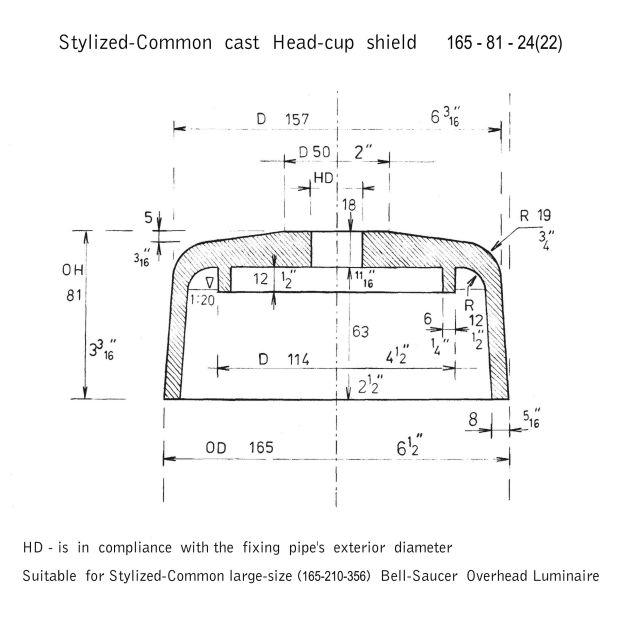

Head-Cup Shield 1

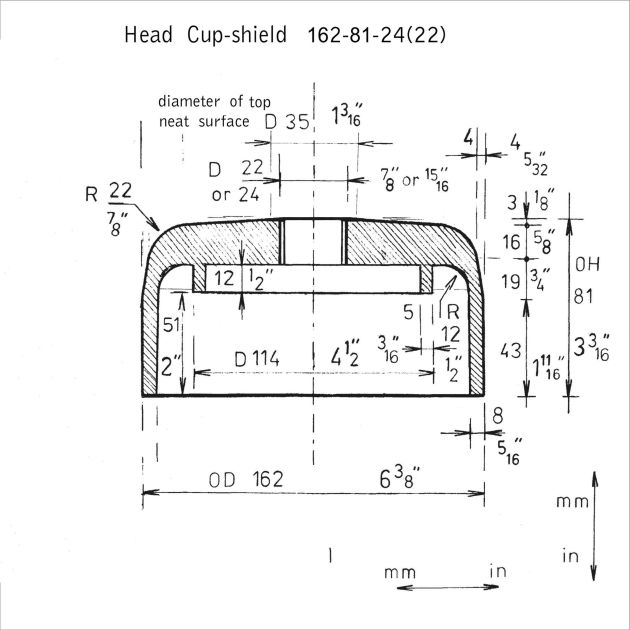

Head-Cup Shield 2

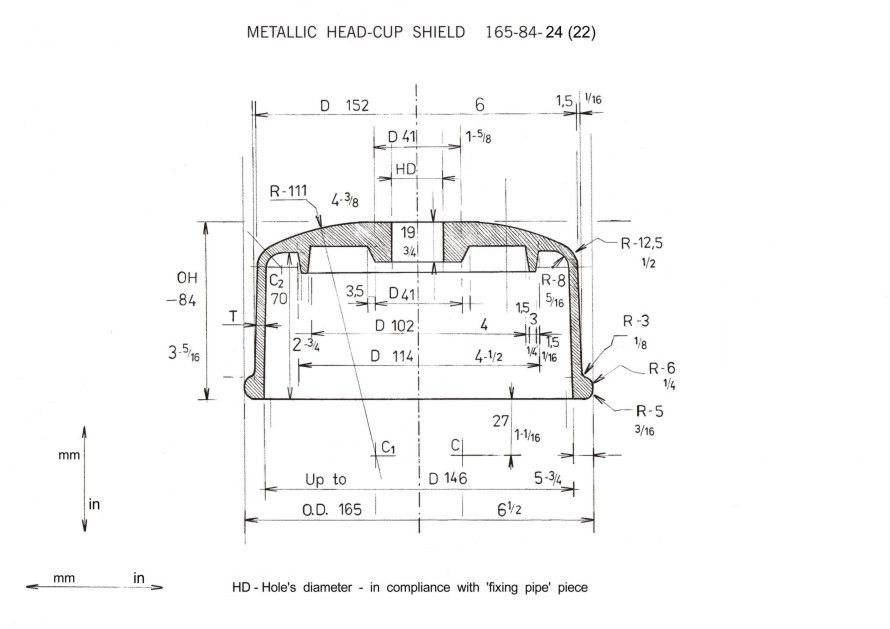

Head-Cup Shield 3

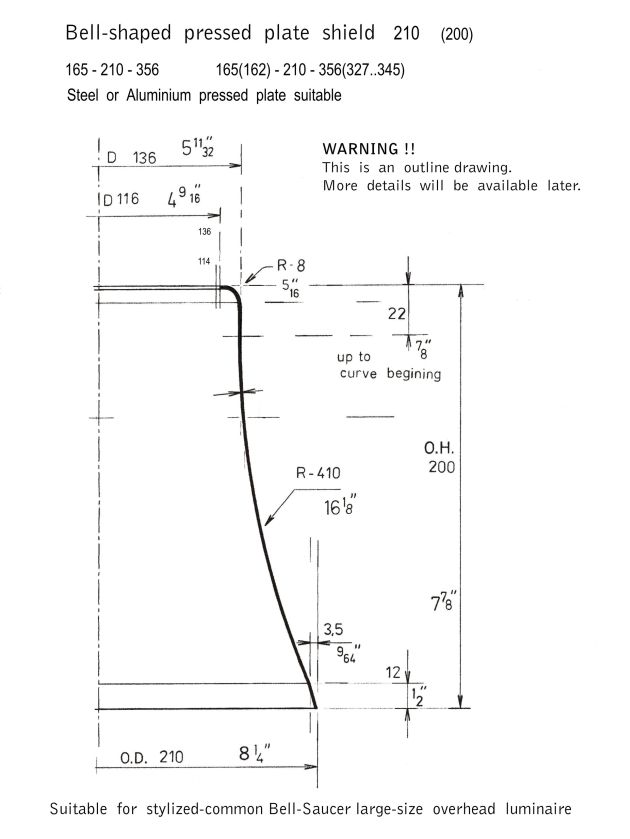

Bell-shaped Shield 1

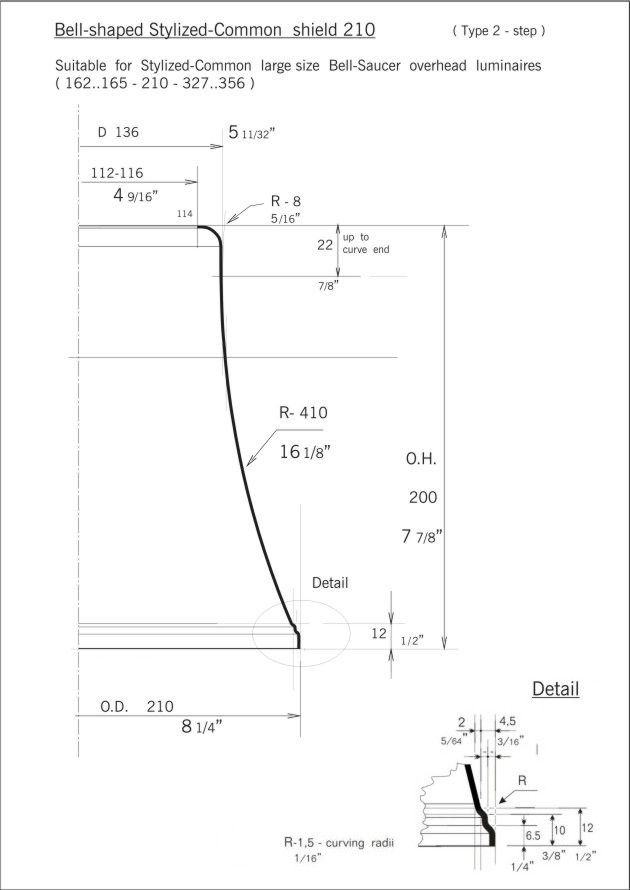

Bell-shaped Shield 2

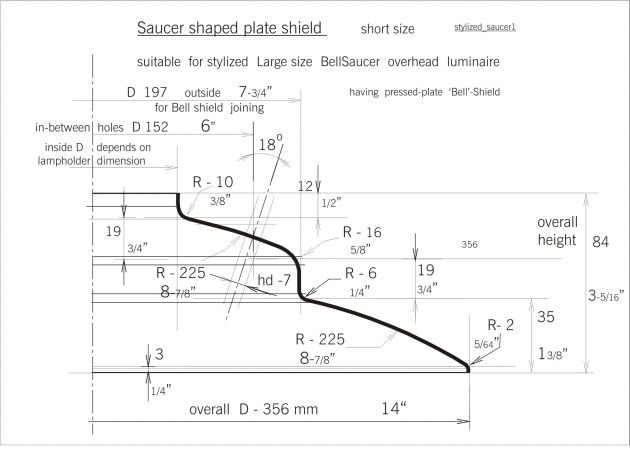

Saucer-shaped Shield
