GAZ-3221 (s. 16.01.1996) - a passenger van variant of GAZ-3302. Rear door is bivalve hinged at 240 deg. Drive: RWD. Semi-hood design. 4-door body has 9 (8 in luxury variant) seats. Framework. Payload: 2,976 lbs. Suspension: dependent, with leaf springs, front - beam axle, rear - solid axle. Engine: ZMZ-4025.10 (4026.10) type, ohv, in line 4, gasoline, displacement 2,445 cc, power 90 hp (CR 6.7:1, gas 76) or 100 hp (CR 8.2:1, gas 92) @ 4,500 rpm. Torque: 127 (133) ft.-lb. @ 2,500 rpm. Gearbox: 5-speed. Top speed: 71.5 mph, acceleration 0 to 62 mph: 39 s. Track front/rear: 5'6.9"/5'1.4". Turning circle 36'. Brakes: front - disks, rear - drums, with hydraulic control. Wheel base 9'6.2". Loading height 2'5.5". Full weight: 7,716 lbs. Price: $4,500-4,800
Optional engine: Steyr M-14 diesel, 95 hp.
GAZ-31213 (s. 20.05.1996) has 13 seats. Price $4,300 (100 hp).

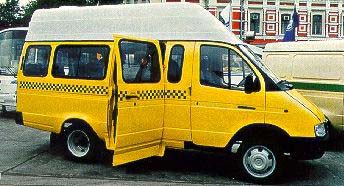

GAZ-312132 (s. 2001) is a taxi with hinged passenger door (that's stronger).

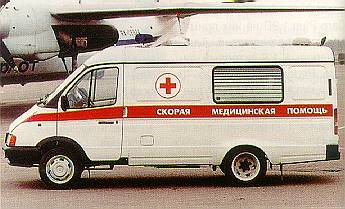

GAZ-31214 (s. 2.08.1996) is an ambulance van.
GAZ-31215 is a police van.
GAZ-32217 (s. 4.04.1996) is a 4x4 variant of GAZ-3221.
GAZ-322173 (s. 22.04.1997) is a 4x4 variant of GAZ-32213.
