Find those marks! | ||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||

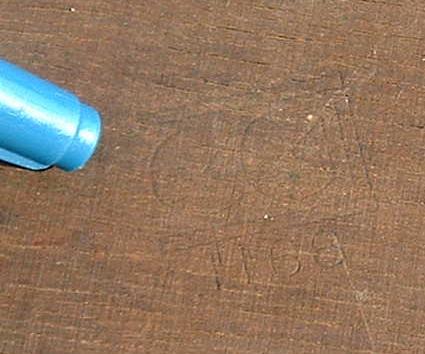

The Utility mark was put on items in a number of ways, and in a variety of places, now listed at the bottom of the page. Usually it was stamped into the wood, but the stamping can be either very faint, or small. This can be seen in the photo on the right. The blue thing is the lid of a ball-point pen! The mark was also printed, as can be seen in the middle photo of the marks from the Chiltern table below. Tables, for instance, normally have the mark on the underside of the tabletop, whereas large items such as wardrobes seem to have been marked on the back panel, about in the middle but at varying heights. Smaller items tend to be marked underneath, or on the back, depending on whether the back was intended to be seen. |
||||||||||||||||||||||||||||||||||||||||||||||||||

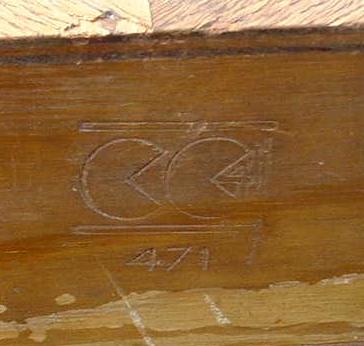

Above: CC41-1168 mark on small table base. Left: A nice clear mark on the back of a Bedside Cabinet. |
||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||
An example of hard to find marks | ||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||

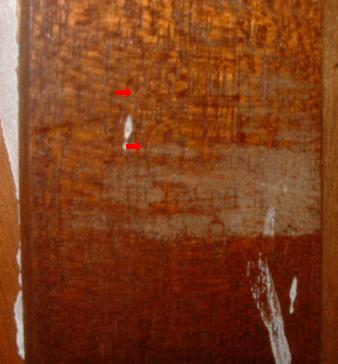

Left: Upright reinforcing rib, back panel, Bachelor's Wardrobe. Can YOU see the (double-stamped) mark? Right: The same photo, but with the edges of both the first C's in CC41 arrowed. Any easier? It took me 3 DAYS to find these, and it was only due to the smear of paint that I did. |
||||||||||||||||||||||||||||||||||||||||||||||||||
Chiltern Table markings | ||||||||||||||||||||||||||||||||||||||||||||||||||

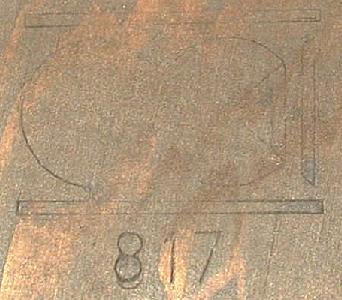

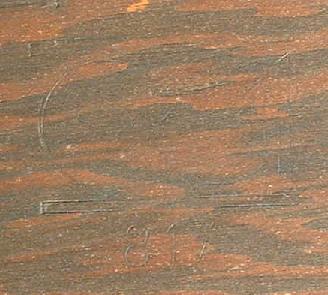

Here we have examples of different forms of the CC41 mark on the same piece of furniture, in this case bearing the manufacturer's code 817 for Ayrton, Graham, Ltd. of Liverpool. |
||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
![]() |
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||
Stamped | Stamped | Printed | ||||||||||||||||||||||||||||||||||||||||||||||||
NEW The Official markings locations list from 1947. |
||||||||||||||||||||||||||||||||||||||||||||||||||
Description of Article | ||||||||||||||||||||||||||||||||||||||||||||||||||
Position of Utility Mark and Identification Number |
||||||||||||||||||||||||||||||||||||||||||||||||||
Type | Model No. | |||||||||||||||||||||||||||||||||||||||||||||||||
Wardrobe Dressing Chest Dressing Table Chest Tallboy Bedstead Settee Bed-settee Divan Metal Divan Kitchen Table Kitchen Cabinet (top part) Kitchen Cabinet (bottom part) Kitchen Seat Sideboard Dining Table Dining Chair Open Arm Easy Chair Stuff Over Easy Chair Adjustable Fireside Chair Fireside Chair Bed Chair Woven Fibre Chair Stool Set of Shelves Occasional Table Bedside Table Bedside Cabinet Curb or Extending Curb Cot High Chair, Convertible High Chair and Child's Low Chair. Metal Spring Bed |
10116. All other models. All models. 3001, 3002. 3003, 3004. 10216. All other models. 10316. 350, 351, 354, 355. All other models. 450, 451, 452, 453, 454, 455, 456, 457, 458, 459, 460, 461. 421, 422, 423, 425, 426. All other models. All models. All models. All models. All models. All models. All models. All models. All models. All models. 2B. 2C. 2D. 605. All other models. 750, 751, 752, 753, 756. 754. All other models. All models. 2A, 2B. All other models. All models. All models. All models. All models. All models. All models. 2056, 2057. All other models. All models. All models. All models. All models. All models. All models. |
Centre of carcase bottom, approximately 2 ins. from front edge. Centre of right-hand end lining. Centre of upper-side of drawer rail below top drawer and, by means of a transfer, on painted back of mirror, if any. Centre of upper-side of drawer rail below centre drawer and, by means of a transfer, on painted back of mirror. Centre of upper-side of drawer rail below right hand top drawer and, by means of a transfer, on painted back of mirror. Centre of upper-side of top drawer rail in right-hand pedastal. Centre of upper-side of drawer rail below top drawer and, by means of a transfer, on painted back of mirror, if any. Centre of upper-side of top drawer rail. Centre of top right-hand end lining. Centre of under-side of top drawer rail. Centre of top rail at back of head end, centre of inside of rail at foot end, centre of side of each long angle of side-irons and each side of spring mattress. Wherever applied to a metal surface the mark and number shall be applied by means of a transfer. Centre of top rail at back of head end, centre of inside of rail at foot end, and at centre of side of each long angle of mattress. Wherever applied to a metal surface the mark and number shall be applied by means of a transfer. Centre of top rail at back of head end, centre of inside of bottom rail at foot end and at centre of side of each long angle of the mattress. Wherever applied to a metal surface the mark and number shall be applied by means of a transfer. By means of a label sewn or fixed with four gimp pins to centre of underside of bottom front frame rail. Inside of each front leg. Bottom rail at back of outside head-board and inside stump leg at head end and by means of a lebel sewn at centre of overlay. Centre of under-side of girder forming foot of divan and to centre back of head-board, the mark and number to be applied by means of a transfer. Centre of under-side of top. Centre of top rail inside one door. Centre of top rail inside door. Centre of under-side of seat. Centre of inside of each cupboard bottom. Centre of tray bottom inside. Centre of inside of side stretcher rail. Centre of under-side of top framing rail. Centre of under-side of each flap. Centre of under-side of each leaf. Centre of inside of back seat rail. By means of a label sewn on centre of bottom hessian. Centre of back seat rail and centre of under-side of seat. Centre of under-side of one arm rest. By means of a label sewn to centre of under-side of seat. By means of a label sewn or fixed with four gimp pins to centre of under-side of bottom front frame rail. Centre of middle seat lath and by means of a label sewn to back edge of loose cushion. Centre of under-side of one arm. Centre of one lath and by means of two lables, the one sewn in the joint between the two cushions and the other in the border of the loose cushion. Centre of inside of front board. Centre of inside of one seat rail. Centre of under-side of top shelf. Centre of under-side of each flap. Centre of under-side of top. Centre of under-side of shelf. Centre of inside of cupboard bottom. Centre of underside of long section. Centre of inside of long back rail at bottom and under-side of mattress frame at centre of long rail. Centre of under-side of seat. Centre of side rail, by means of a transfer. |
||||||||||||||||||||||||||||||||||||||||||||||||
Back |
