Chain or shaft?
If you are starting from scratch and are set on using a bike engine, a large capacity shaft drive unit has to be the best. � All that needs to be done, engineering-wise is to connect the bike shaft to whatever axle you plan to use, obvious eh?
If you already have a good chain drive lump and are set on using it, you have three options:-
1)� Convert an axle by fastening a sprocket to ���� the diff inside its housing.� It will run with ���� no oil and it will have to be tensioned.
2)� Find a bevel box from a shaft driven bike ���� and reverse it, then machine and bolt a ���� sprocket to that, driven off the output ��� sprocket on the engine.
3)� Turn the engine sideways and weld the���� ���� drive shaft to the output sprocket. ��� There could be problems with cooling if�� ��� the lump is air-cooled and also with the ��� exhaust which would have to be ��� routed differently. |
|
|
|
|
|
|
|
|
|
A car engined trike can either be front engined, rear wheel drive or rear engined. rear drive, and can be any capacity you desire. |
|
|
|
|
|
|
|
![](Minibikeframe1.jpg) |
|
|
|
|
|
|
|
As basic as it gets. Any front engined, front wheel drive unit with motorcycle frame welded on. Notice the extra bracing. |
|
|
|
|
|
|
|
![](mini_1.jpg) |
|
|
|
|
|
|
|
Same as above, but with fabricated frame. |
|
|
|
|
|
|
|
![](Chaindrivetrike1.1.jpg) |
|
|
|
|
|
![](miniframe_2.jpg) |
|
|
|
|
|
|
|
Plan view of Austin Mini/Metro, or any similar front engined, front wheeled drive.(Click to see detailed picture) |
|
|
|
|
|

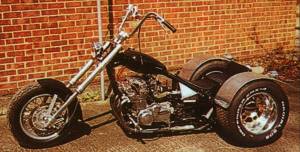

Suzuki GS850 chain driven. |
|
|
|
|
|
|
|
|
|
|
![](redrel1.jpg) |
|
|
![](green_honda1.jpg) |
|
|
|
|
|
|
|
|
|
Small Reliant-engined trike. |
|
|
|
|
|
|
|
![](VW_fabricated_frame.jpg) |
|
|
|
|
|
Honda 750/4 chain driven. |
|
|
|
|
|
|
|
![](Axle1.JPG) |
|
|
|
|
|
|
|
|
|
VW engine with fabricated frame. |
|
|
|
|
|
|
|
![](vw_trike0001.jpg) |
|
|
|
|
|
|
|
70's Wilmac framed Beetle trike. Click on picture for VW trikes. |
|
|
|
|
|
|
|
|
![](large_enginex.jpg) |
|
|

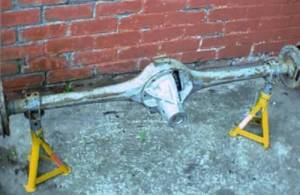

60's Morris Minor axle converted to chain drive. Click on picture for details. |
|
|
|
|
|
|
|
|
|
![](Guzzitrike.jpg) |
|
|
|
|
|
A large-engined frame, most usualy made from heavy duty box. The figure 'C' is the point of most stress in the structure. |
|
|
|
|
|
|
|
![](swede.jpg) |
|
|
|
|
|
MotoGuzzi 1000cc automatic gearbox. |
|
|
|
|
|
|
|
![](Dembones_1.jpg) |
|
|
|
|
|
|
|
|
|
Swedish Style VW. |
|
|
|
|
|
|
|
![](v-6ford-1.jpg) |
|
|
|
|
|
Yamaha XS1100 shaft drive. |
|
|
|
|
|
|
|
![](CBRtrellis1.jpg) |
|
|
|
|
|
|
|
|
|
|
Ford V-6. |
|
|
|
|
|
![](V12jag1.jpg) |
|
|
|
|

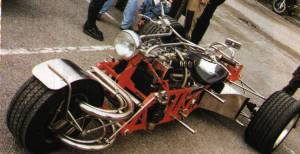

Honda CBR-engined special. As in No.3 above. |
|
|
|
|
|
|
Jaguar V-12 |
|
|
|
|
