Advantages of cold forging :
¡@
  • Significant material saving ¡V cold forged product is directly shaped and strengthening through plastic deformation, and thus cold forged product provide very significant cost saving over cast or machined metal products.
    The material saving is very significant in a high volume production, and even more so if the forged product requires expensive materials.
  • No heating is required ¡V cold forged product is directly shaped without heat expansion and cold contraction, and thus cold forged product has superior surface finish and dimensional accuracy.
  • Superior dimensional Accuracy ¡V advanced teeth forging technology can produce forged product with JIS class 3-4 precision. No machining process is required.
  • High production rate ¡V cold forged product has very short production cycle. Large volume of forged products can be produced quickly.
  • Exceptional forging die life ¡V forging die used in cold forging process has exceptional die life. Forging die are typically made with very expensive material. Cold forging process provides significant cost saving, because forging die used in cold forging process rarely needs to be replaced.
  • Better mechanical properties ¡V unlike hot forging, the inclusion and grains distortion of a cold forged product follow the contour of the forged product¡¦s surface and thus the cold forged product has better mechanical properties. Minimized contamination ¡V producing metal parts using cold forging process produce less contamination than any other manufacturing processes.
¡@ ¡@ ¡@
Our production capacity :
¡@
  • General industrial applications cold forging and turning auto parts
  • Cold forged and turned Loudspeaker metal parts: Pole Piece
  • Specialty and standard industrial fastener manufacturing
  • Cold Forged - automotive components & motors parts
  • Multi-forming process products and heading parts
  • Various thread forming and tapping machining
  • Customized cold forged and turned products
  • Cutting Example of Cold Forged parts
  • Plastic Insert molding metal parts
  • Shafts & special-headed parts
  • Cold forged extrusion parts
  • Headed rivet, axle and pins
  • Screw machined products
  • Engineering components
  • Cold forging bevel gears
  • Custom fasteners
  • Tubular parts
¡@
Area of application :
¡@
  • Automobile, Electronic industry and many additional related industries.
¡@
Material :
¡@
  • Steel :
    JIS 1006~1050, S10C~S45C, SCM415~440, 6150,
    SAE 8620AISI 1010, 1015, 1020, 1025, 1030, 1035,
    1040, 1045, 1145, 4140, 4130, 4145

  • Aluminum:
    Al5052, 5056,6063,1070, 1100, 6410

¡@ ¡@
Products Gallery

¡@

¡@

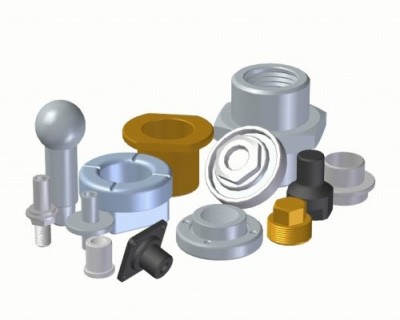

General industrial applications cold forging and turning parts.
¡@
Production Range :
¡@
  • Up to 150mm Outside diameters

  • Up to 100mm in length

  • Specialize in extruded shafts

  • Thread rolling range: Up to 50mm Outside diameters
¡@
Thread Standards
¡@
¡@ ¡@
Finishes available :
¡@
  • Commercial Plating Finishes
  • Barrel Zinc Electro-Plating (Trivalent/Cr3+)
  • Hanging Zinc Electro-Plating (Trivalent/Cr3+)
  • Cationic Electro-Deposition Coating (CED)
  • Zinc-Nickel Alloy Electro-Plating
  • Zinc-Iron Alloy Electro-Plating
    Color :Golden/Yellow, Sliver/White, Black (CED)
    Environmental Standard
    RoHS
¡@
¡@
¡@
¡@
¡@
¡@
¡@
¡@
¡@
¡@
¡@
¡@
¡@
¡@
¡@
¡@
¡@
¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@
