Square Cut Fascia Angles

Select Entry Mode :
MAIN PITCH Rise :
Run :

ADJACENT PITCH Rise :
Run :

TOTAL DECK ANGLE :


Fascia Miter :
Fascia Bevel :
Hip Rafter Miter :
Hip Rafter Bevel :

HOME PAGE

DIAGRAMS
Main Pitch = 7 ÷ 12
Adjacent Pitch = 12 ÷ 12
Total Deck Angle = 90°

Hip Roof & Fascia Planes
Square Cut Fascia

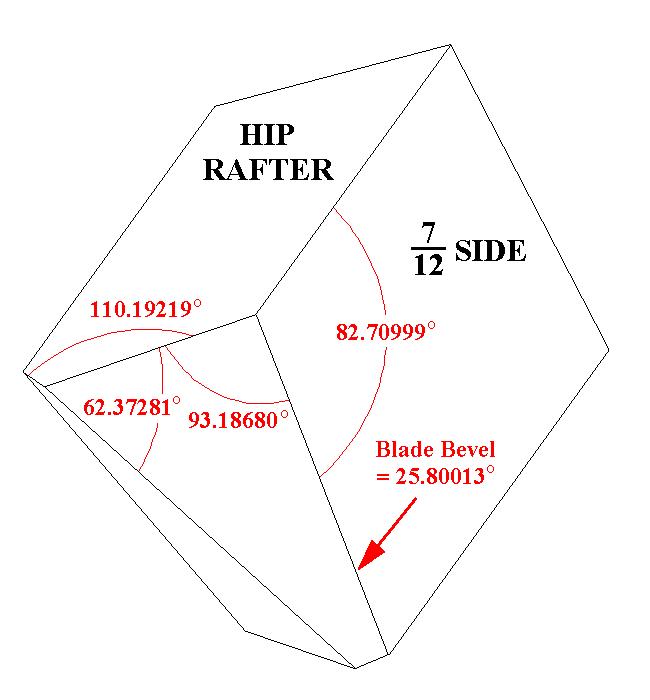

Hip Rafter 7 ÷ 12 Side
Hip Rafter 12 ÷ 12 Side
View all Drawings
Hip Rafter and Fascia Models
Model by Sim Ayers (SBE Builders)
CALCULATORS
Extended List of Angles
Square Fascia Excel Worksheet (.xla)
Square Fascia Excel Worksheet (.xls)
FORMULAS
Fascia Angle Formulas
Hip Rafter Angle Formulas
Compound Angle Formulas
Matching Dimension Formulas
Example Calculations
Hip Rafter Notes
Fascia projected to Hip Rafter

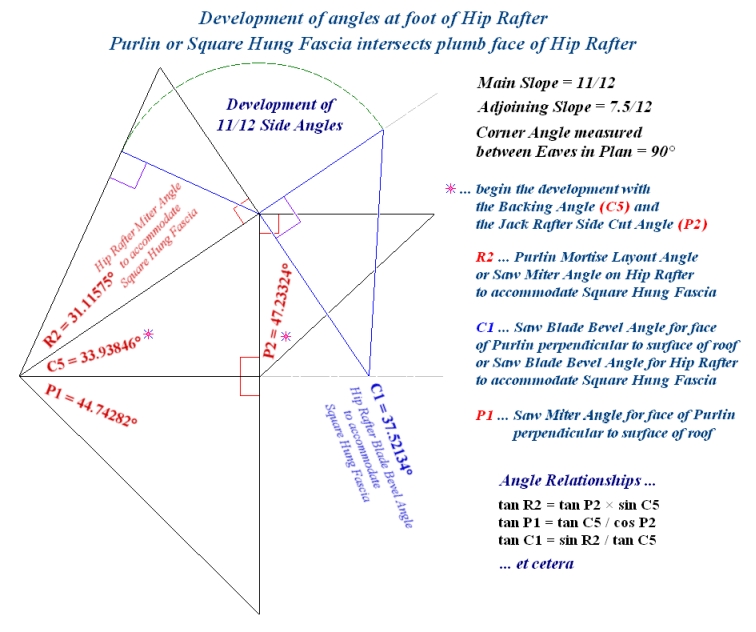

Developed Angles on plumb face of Hip
All Angles developed on the Hip
Hip Angles ... Development of Tetrahedron
Development of Fascia Compound Angle
Vector Model of Fascia Angles
If a Plan Angle > 90° ...
Miscellaneous Math Notes
Crown Molding Angle Formulas
Example Crown Molding Calculations
Compound Rake or Prow Roof Fascia
