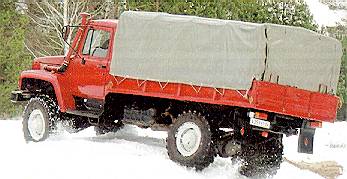

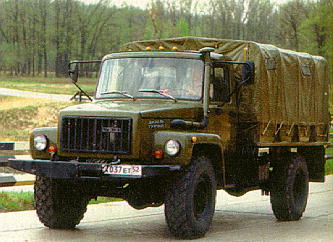

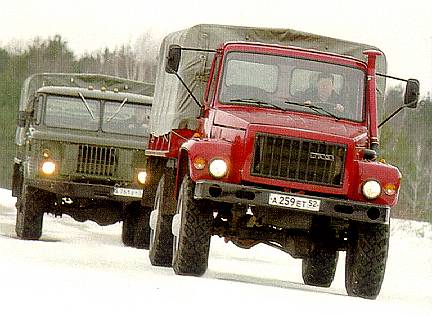

GAZ-3308 "Sadko" - replacing for GAZ-66. It differs from GAZ-3309 by 4x4 drive. Equipment - the same as GAZ-66 has. Hood design, 2 seats cab. Payload 4,409 lbs. Powered by 6 (4)-cylinder turbo-diesel engine Hino (Belorussian D-245.7, with intercooler), displacement 3,201 (4,750) cc. Output: 140 (122) hp @ 3,200 (2,400) rpm. Torque 258 (313) ft.-lb. @ 1,800 (1,300) rpm. Gearbox: 5 speed x 2. Brakes: drums, with hydraulic control. Measures: wheel base 12'4.4". Ground clearance 12.4". Full weight: 13,118 (13,889) lbs. Tyres: 12R18 (standard 4,409 lbs payload truck) or 12R20 (military 5,071 lbs payload truck with windlass and tyre pressure control system). Speed - 56 mph. Fuel economy: 13.8 mpg (at 19 mph).
GAZ-3308 model with ZMZ-513 engine (gasoline, carburetor, V8, ohv, power 130 [125] hp @ 3,200 rpm, torque 232 [217] ft.-lb. @ 2,250 rpm). Gearbox: 5 [4] speed plus 2-step transfer case. Top speed 59 [56] mph, fuel economy 10.2 mpg at 19 mph. Payload 4,409 lbs. Curb weight: 6.990 lbs (front axle 5,104 lbs, rear axle 8,014 lbs). Range: 570 miles. Price: from $4,830.

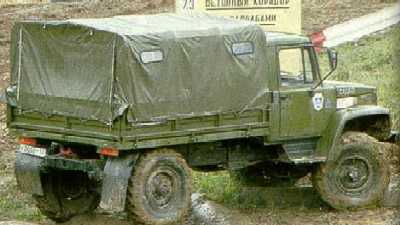

GAZ-33082 model with NEW GAZ-562 (GAZ-562.10) engine: (turbo-diesel, straight 6, ohv, power 150 (125) hp @ 3,200 rpm, torque 310 ft.-lb. @ 1,800 rpm). Gearbox: 5 speed plus 2-step transfer case. Top speed 62 mph, fuel economy 15.7 mpg at 19 mph. Payload 4,409 lbs. Curb weight: 8.422 lbs (front axle 5,247 lbs, rear axle 8,135 lbs). Range: 870 miles. Sounds like this is the BEST variant.
|
|

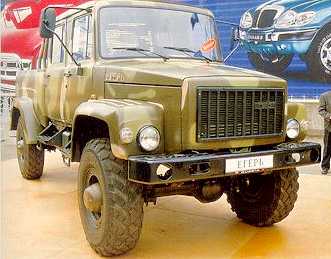

GAZ-3308 "Yeger".
