.: E-Polarized Wave Scattering from from Infinitely Thin and Finitely Width Strip Systems



.: Results-Graphs- Animations

• Graphs:
- Current Density Graphs
• For Linear one Strip

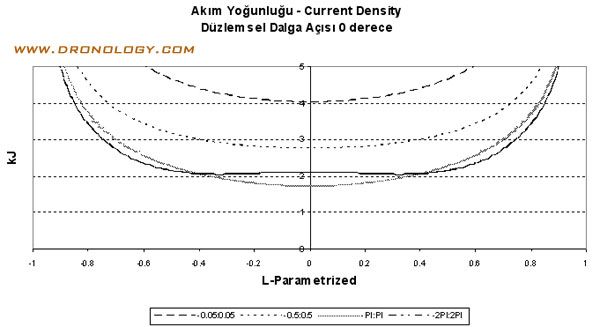

a) Current Density Graphs For Single Strip k=1 , Wave Angle 0 degrees L1=0.1 , L2=1 , L3=2PI, L4=4PI

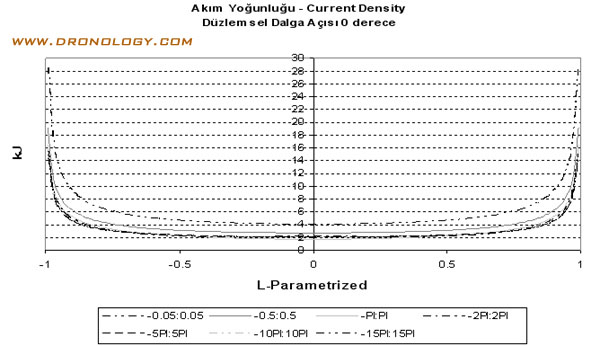

b) Current Density Graphs For Single Strip k=1 , Wave Angle 0 degrees L1=0.1 , L2=1 , L3=2PI, L4=4PI L1=10PI , L2=20PI , L3=30PI

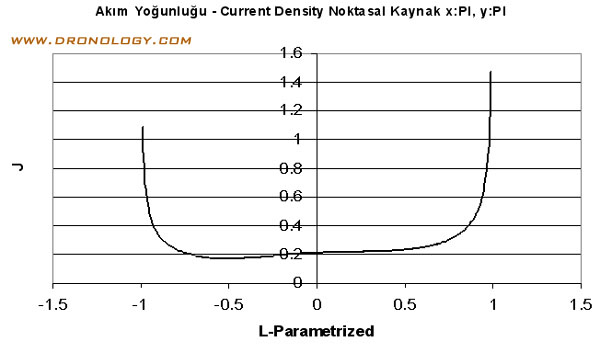

c) Current Density Graphs For Single Strip Point Source: x:PI , y:PI L=2PI (x1=-PI , x2=PI , y1=0 , y2=0)




- Current Density Graphs
• For Curvy one Strip

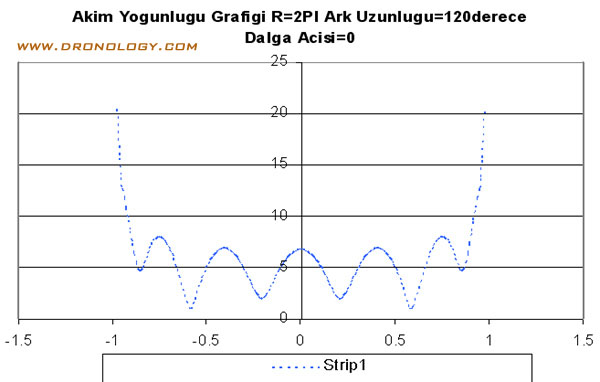

d) Current Density Graphs For Single Curvy Strip k=1 Wave Angle 0 degrees Radius=2PI Arc Length= 120degrees



- Current Density Graphs
• For Linear Double Strips

e) Current Density Graphs For Double Strips k=1 Wave Angle 0 degrees L1=2PI , L2=2PI , Distance Between Them: 4PI (S1 in shadow)

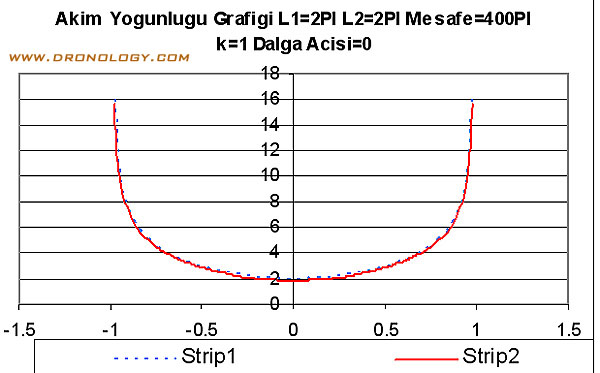

f) Current Density Graphs For Double Strips k=1 Wave Angle 0 degrees L1=2PI , L2=2PI , Distance Between Them: 400PI
