.: E-Polarized Wave Scattering from from Infinitely Thin and Finitely Width Strip Systems |
|
|
.: Results-Graphs- Animations
•
Graphs:
- Farfield and Kirchoff Farfield Graphs
• For
Linear one Strip
Note: Diffrance between Kirchoff Approximation and
Farfield pattern based on radiation at the edges of strip. Do not forget that
Kirchoff Approx. realizes that the current density over strip is always same.

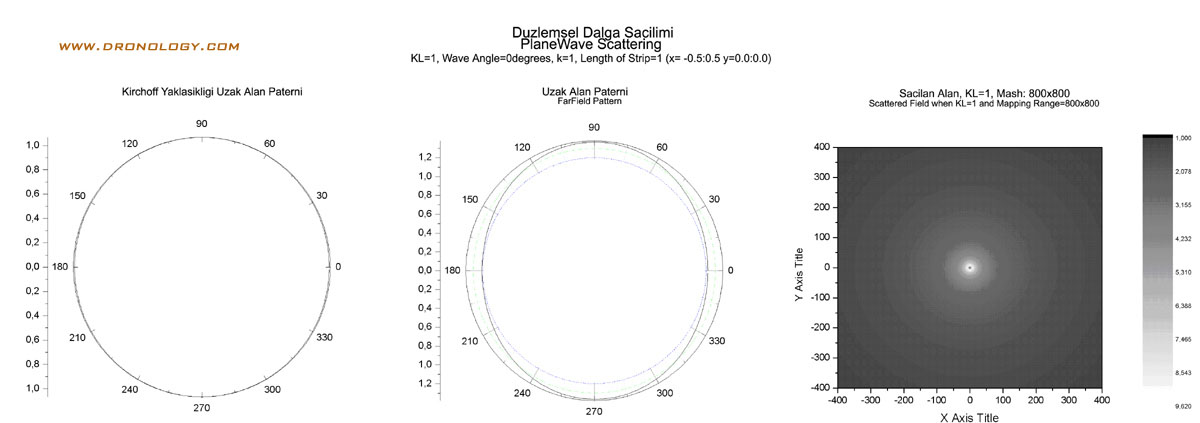

a) PlaneWave Scattering for Kirchoff Approximation - Farfield Pattern -
Scattered Midfield KL=1, Wave Angle=0, k=1, L=1
![](result_graphs3/farfield1.jpg)

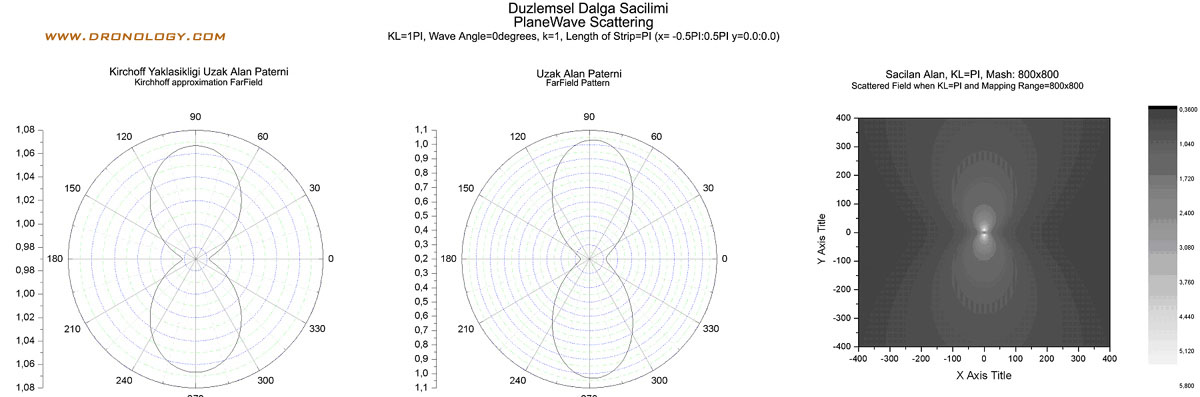

b) PlaneWave Scattering for Kirchoff
Approximation - Farfield Pattern - Scattered Midfield KL=PI, Wave Angle=0, k=1,
L=PI
![](result_graphs3/farfield2.jpg)

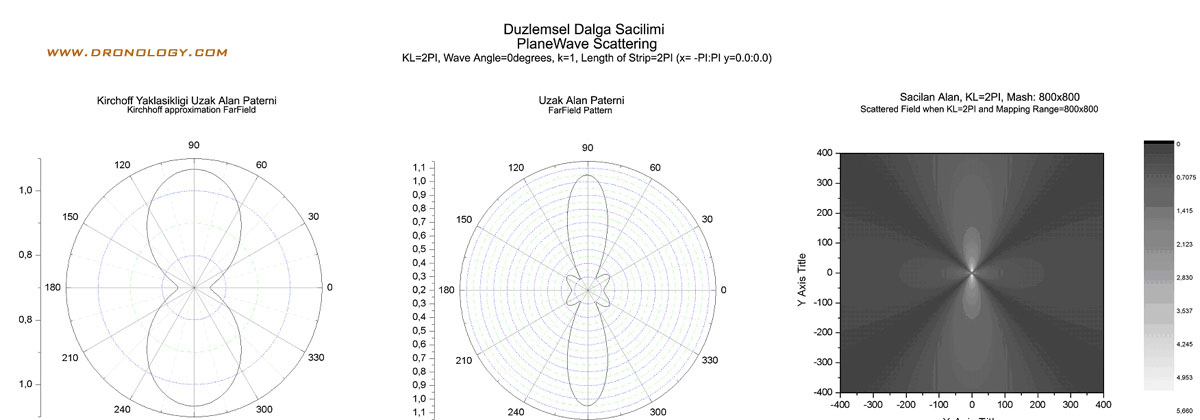

c) PlaneWave Scattering for Kirchoff
Approximation - Farfield Pattern - Scattered Midfield KL=2PI, Wave Angle=0, k=1,
L=2PI
![](result_graphs3/farfield3.jpg)

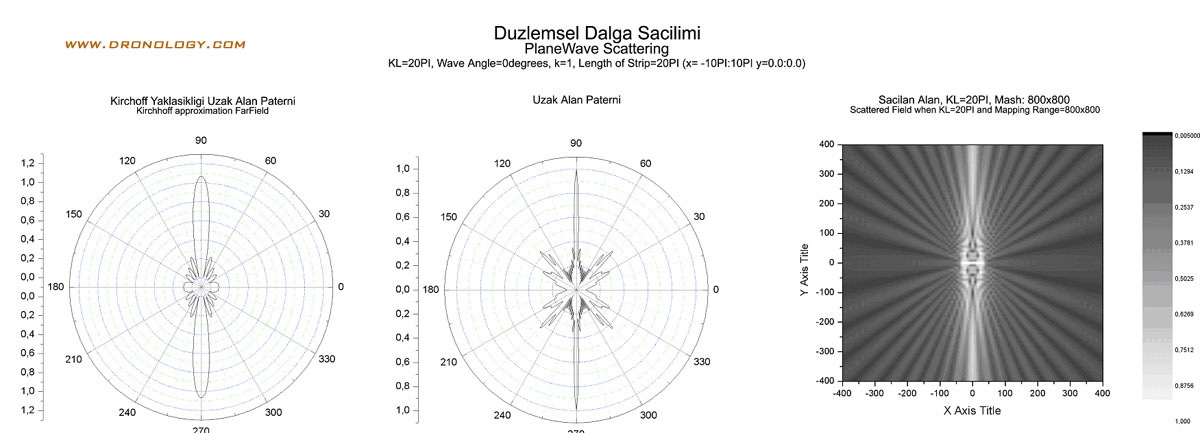

d) PlaneWave Scattering for Kirchoff
Approximation - Farfield Pattern - Scattered Midfield KL=20PI, Wave Angle=0,
k=1, L=20PI
![](result_graphs3/farfield5.jpg)
