HF-60555


PROJECT: HF-60555
DESCRIPTION: Shield for uC module HF-17555 (RP2040)
STATUS: 2u
PROJECT START DATE: 2024
LOCALISATION: PL
DOCUMENTATION: electronic only, PCB drawings (see TPD)
PCB: TPD52919
DIMENSIONS: 70 x 50 mm

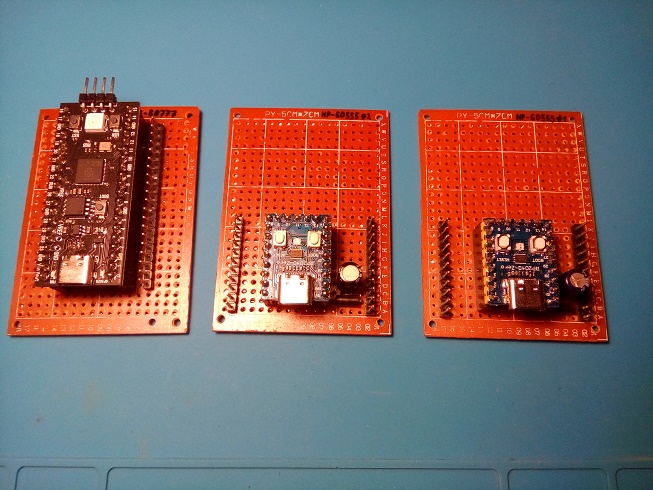

HF-17777 with HF-60777 and HF-17555 with HF-60555





Modules made:
PROJECTSTATUSPCBHARDWARE VERSIONREMARKS
HF-60555#1uTPD52919#11.02Extension Board for all HF-17555 modules
HF-60555#2uTPD52919#21.02Extension Board for all HF-17555 modules




Project Info

Shield for uC module HF-17555 (RP2040), used for ad-hoc projects. Assembled on universal board has a lot of room for experimentation.
Designator HF-6055 is planned for HF-17555 and HF-60555 as a complete digital system.

Features:

  • 20 external I/O terminals
  • 178 (16 x 12)-14 free fields for experimental constructions
  • Buzzer
  • Protection against reversed supply polarity


    • Modifications:

  • ver 1.01 - added buzzer, few paths rerouted
  • ver 1.02 - one path rerouted



    • Sources:

    [1] TPD52919#1
    [2] TPD52919#2
